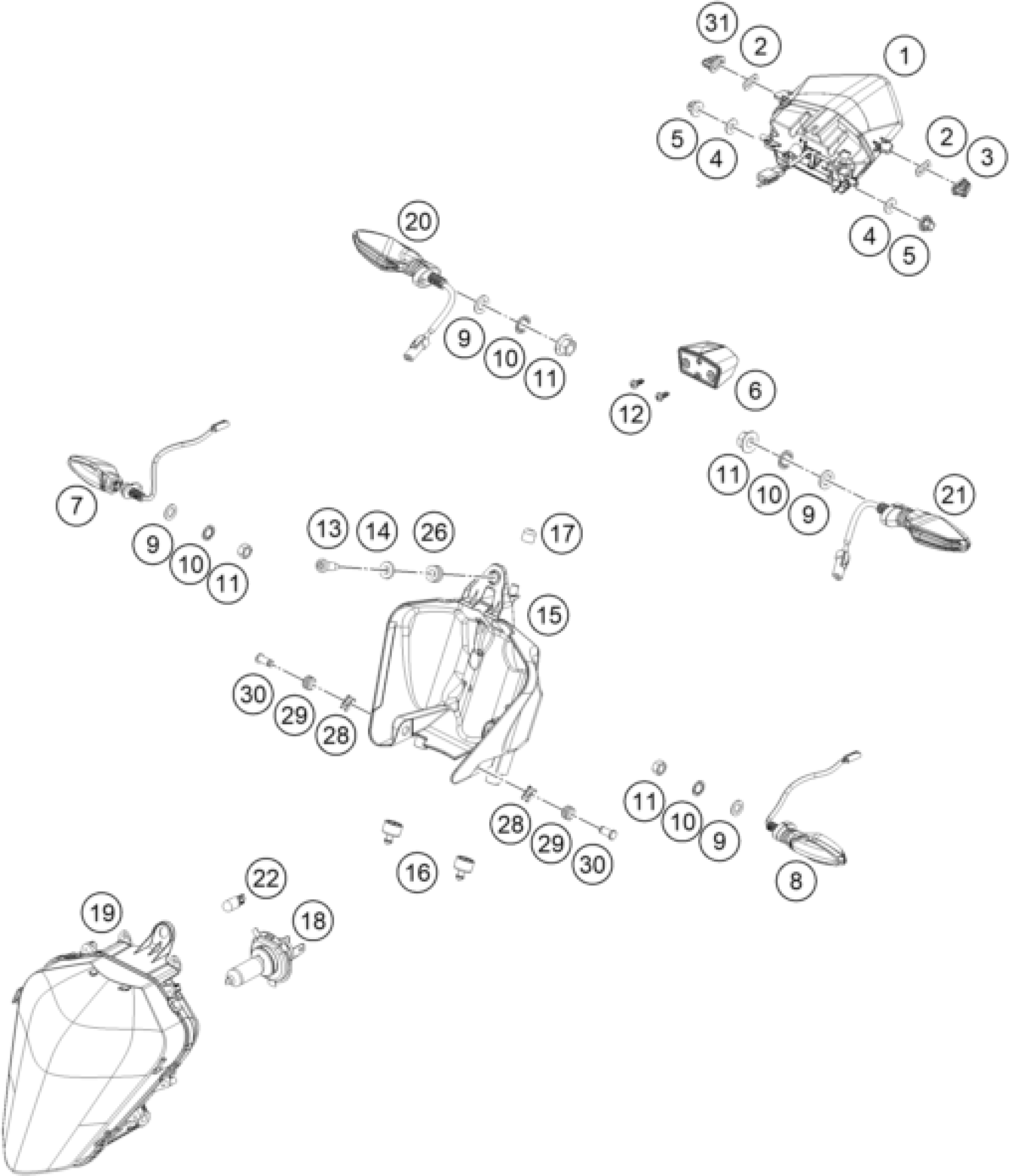

KTM 250 DUKE ORANGE B.D. 17 <2017> LIGHTING SYSTEM Diagram

#

Description

Price

1

lamp tail MY17

93014040100

Unavailable

2

Washer

93014040040

Unavailable

3

Rubber grommet tail light left

93014040020

Unavailable

4

Washer

93014040030

Unavailable

5

Rubber bushing

93014040010

Unavailable

6

LICENSE PLATE ILLUMINATION

90114047000

Unavailable

7

Indicator front rh

93014026000

Unavailable

8

Indicator front lh

93014025000

Unavailable

9

WASHER PLAIN 10,5

J125100003

Unavailable

10

TOOTHED WASHER M10

J797100003

Unavailable

11

HEX NUT M10X1,25

90114030000

Unavailable

12

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

Unavailable

13

Screw connection halogen headl

93114013000

Unavailable

14

Washer 9.2x17x2

93014007000

Unavailable

16

Rubber bushing

93014015000

Unavailable

17

Rubber bushing

93014014000

Unavailable

19

Bulb head lamp

93114001100

Unavailable

26

Rubber bushing

93014017000

Unavailable

20

FLASHER REAR R/S

90514036100

Unavailable

21

FLASHER REAR L/S

90514035100

Unavailable

18

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

22

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

15

Light bulb headlight bracket

93114010000

Unavailable

28

SEC. CLIP MASK CARR. PIVOT BKT

90114064012

Unavailable

29

GROMMET MASK CARR. PIVOT BKT

90114064011

Unavailable

30

SAFETY BOLT 8X1,5

J070080150

Unavailable

31

Rubber grommet tail light righ

93014049000

Unavailable
