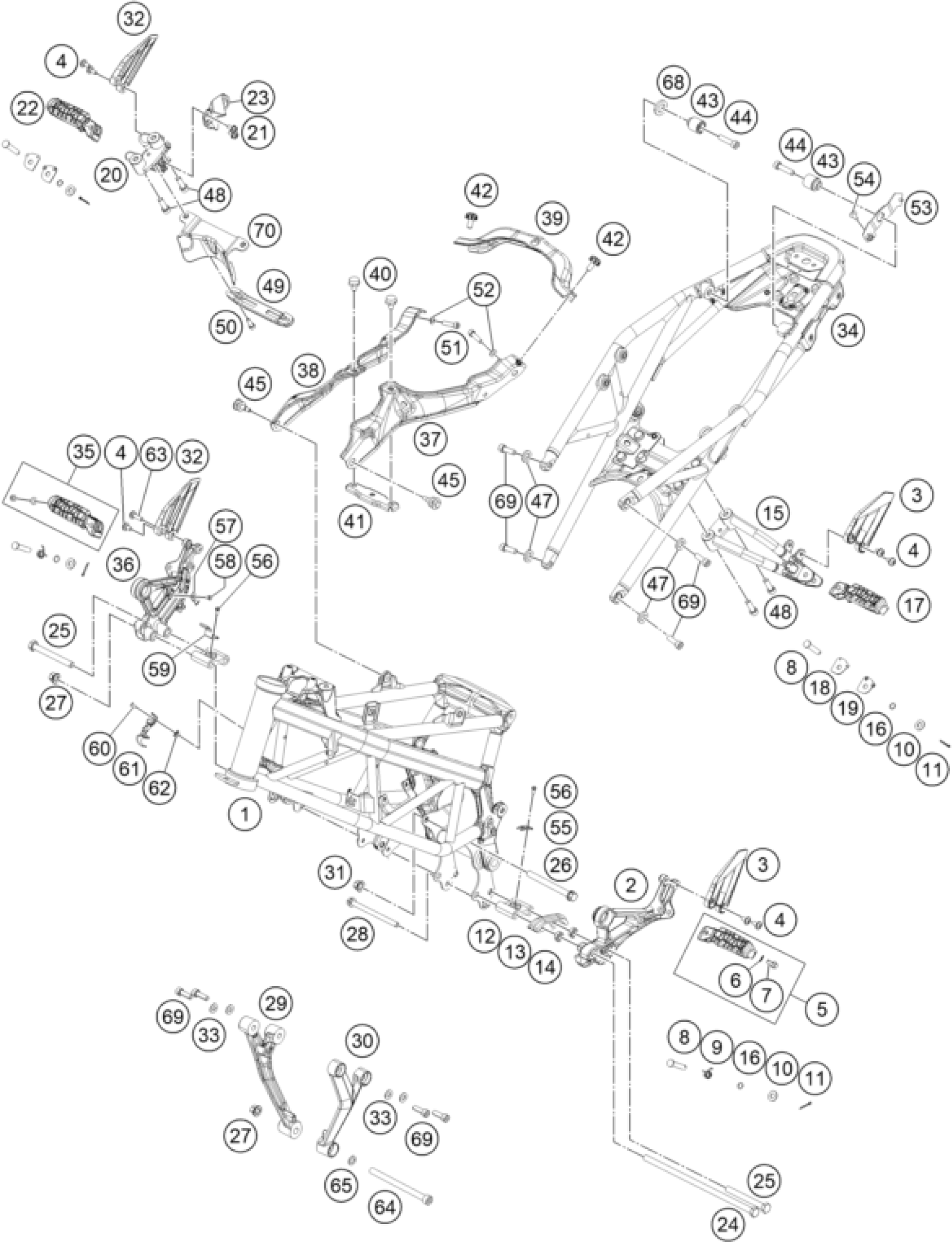

KTM 250 DUKE ORANGE B.D. 17 <2017> FRAME Diagram

#

Description

Price

1

FRAME Duke 17 black

9300300100030

Unavailable

2

Footrest bracket front left

93003038000

Unavailable

3

Heel protector left

93003048050

$5.23

4

Screw M6X1X9

93008020060

Unavailable

5

footrest front left cpl.

90103040033

$12.71

6

PLAIN WASHER 6,4X12X1

90103040001

$1.49

7

CAP SCREW M6X10 SS

J029060103S

$2.05

8

Pin footrest pivot black

93003054000

$2.05

9

footrest return spring

90103042000

$4.11

10

WASHER M8

J125080004

$1.49

11

PIN 25X1,8MM

J094018250

$1.49

12

footrest support holder, front

90103038001

$9.90

13

chainguide

90104070000

$10.84

14

spacer chainguide

90104066010

$3.08

15

Footrest bracket rear left

93003048000

$61.89

16

O-RING 9X1,5

J770009015

$1.49

17

footrest rear left cpl.

90103050033

$21.87

18

Plate lock pillion step bottom

93003053000

$1.49

19

Plate lock pillion step top

93003052000

$1.49

20

Footrest bracket rear right

93003049000

$66.10

21

Hexagon screw M6X10

J025060101

$1.49

22

footrest rear right cpl.

90103051033

$21.87

23

Retaining bracket

93005084000

$9.90

24

HH COLLAR SCREW M10X1,25X265

J025102656

$6.35

25

HH COLLAR SCREW M10X1,25X92

J025100926

$3.08

26

HH COLLAR SCREW M10X110 WS14

J025101103

$3.08

27

FLANGED NUT M10X1.25 WS14

90103038002

$2.05

28

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

29

Engine brace right

93303006000

$18.22

30

Engine brace left250/390

93303005000

$17.66

32

Heel protector right

93003049050

$3.08

33

WASHER M8

J125080005

$1.49

34

Rear frame orange

93003002000EB

$443.84

35

footrest front right cpl.

90103041033

$12.71

36

Footrest bracket front right

93003039000

$179.51

37

Bracket spider lh

93003002050

$24.77

38

Bracket spider rh

93003002151

$22.52

39

Bracket seat mount loose

93003002030

$7.38

40

Retaining pin

93007044000

$1.49

41

Seat cowl front complete

93003001070

$4.11

42

Rubber buffer

93008023000

$1.49

43

Seat support complete

93007047033

$5.32

44

hexagon socket screw M8X30

J912080303

$1.49

45

Screw

93007046050

$6.54

47

Washer M8

J125080001

$1.49

48

BOLT

90103098000

$2.05

49

Passenger footrest bracket

93003056000

$4.11

50

bolt socket-M6X1XL18

J912060186

$1.49

51

hexagon socket screw M8X31

93008019070

$1.49

52

Washer plain

J125080002

$1.49

53

Retaining bracket

93006040060

$4.11

54

Screw truss M5X16

J031050166

$1.49

55

CABLE BRACKET

90111045050

$1.49

56

FLANGED BOLT M6X14

90103032000

$1.49

57

Retaining bracket

93013041000

$1.49

58

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

59

Support

93013026000

$1.49

60

Roundhead screw M4X12

J031050121

$1.49

61

Guide clutch cable

93032059010

$3.08

62

CLIP NUT M5

90108050001

$2.05

63

Screw M6X1X25

93008043000

$1.49

64

BOLT M10X135

90203008000

$5.23

65

Washer M10

J125100009

$1.49

68

Washer - plain

J125140003

$1.49

69

Hexagon screw M8X25

J912080251

$2.05

70

Splash protector monoshock

93004050000

$2.05

31

Nut socket-M10x1.25

93003005100

$2.05
