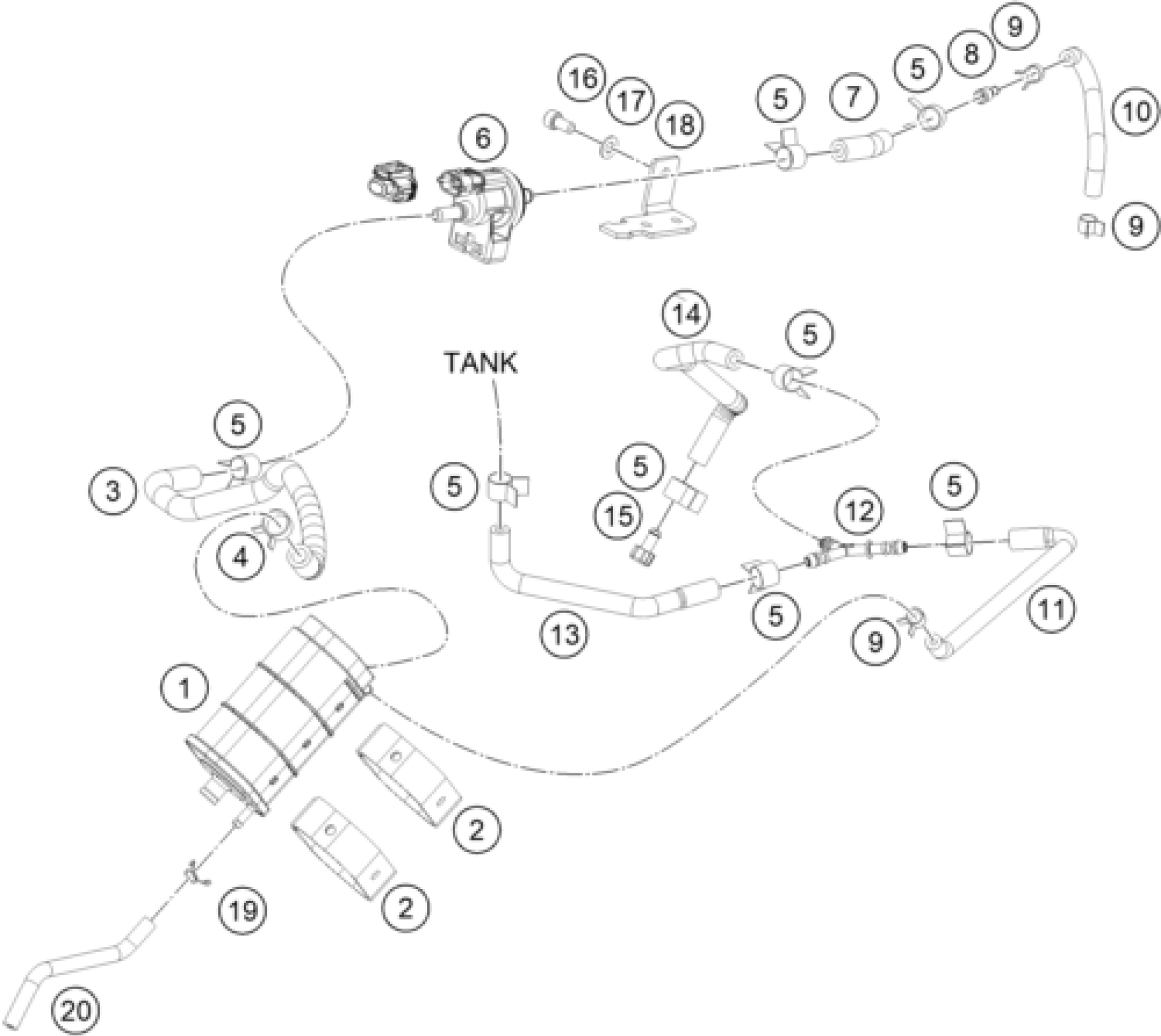

KTM 250 DUKE ORANGE B.D. 17 <2017 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

Activated carbon filter

93015001000

$40.29

2

Rubber band

93015003000

$2.05

3

Hose

93015020000

$20.09

4

SPRING BAND CLAMP 15X10

90607017001

$2.05

5

SPRING BAND CLAMP D13

90607017003

$2.05

6

fuel tank vent valve

90607030000

$71.33

7

Pre-formed hose

93015021000

$5.23

8

CONNECTOR TUBE EVAP

90207016004

$1.49

9

CLAMP D9

90607017002

$1.49

10

Tube connector to throttle bod

93015028000

Unavailable

11

Y connection

93015017000

$11.68

12

CONNECTOR Y SHAPE

90507015000

$3.08

13

Pre-formed hose

93015026000

$5.23

14

TUBE CONNECTOR TO PLUG

90515023000

$9.15

15

PLUG FUEL DRAIN

90515011000

$1.49

16

hexagon socket screw M6X12

J912060123

$1.49

17

Washer M6

J125060006

$1.49

18

Fitting panel

93015032000

$2.05

19

CLAMP

90107013008

$1.49

20

Hose active carbon filter

93015029000

$1.49
