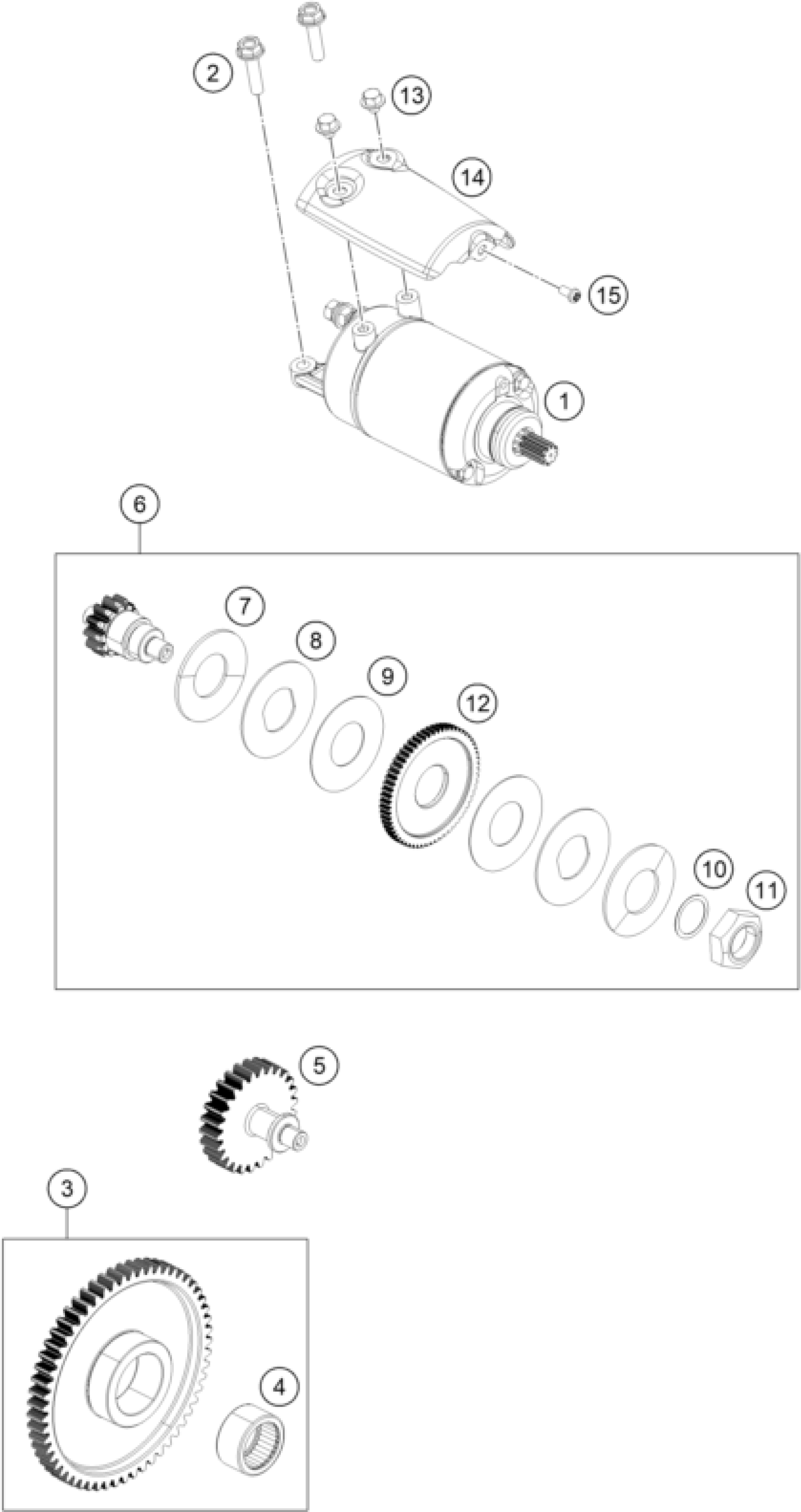

KTM 250 DUKE ORANGE B.D. 17 <2017 ELECTRIC STARTER Diagram

#

Description

Price

1

ELECTRIC STARTER CPL.

93840001000

$315.55

2

HH COLLAR SCREW M6X25 SW10

J025060256

$1.49

3

GEAR STARTER CLUTCH CPL.

90240020000

$61.14

4

NEEDLE ROLLER BEARING HK2516

J618253216

$10.18

5

GEAR STARTER COUNTER

90240022000

$26.45

6

GEAR STARTER COUNTER CPL.

90240023033

$57.59

7

CONICAL WASHER

90240023006

$2.05

8

WASHER

90240023005

$2.05

9

PAD FRICTION

90240023004

$7.94

10

SHIM STARTER 0,30MM

90240023007

Unavailable

10

SHIM STARTER 0,45MM

90240023008

Unavailable

10

SHIM STARTER 0,60MM

90240023009

Unavailable

10

SHIM STARTER 0,75MM

90240023010

Unavailable

11

NUT STARTER COUNTER

90240023003

$3.08

12

GEAR STARTER COUNTER

90240023002

$29.16

14

SHIELD STARTER MOTOR

93840012000

$5.23

15

SCREW PAN CROSS M4X8

J005040083

$1.49

13

HH COLLAR SCREW M5X6

J025060083S

$1.49
