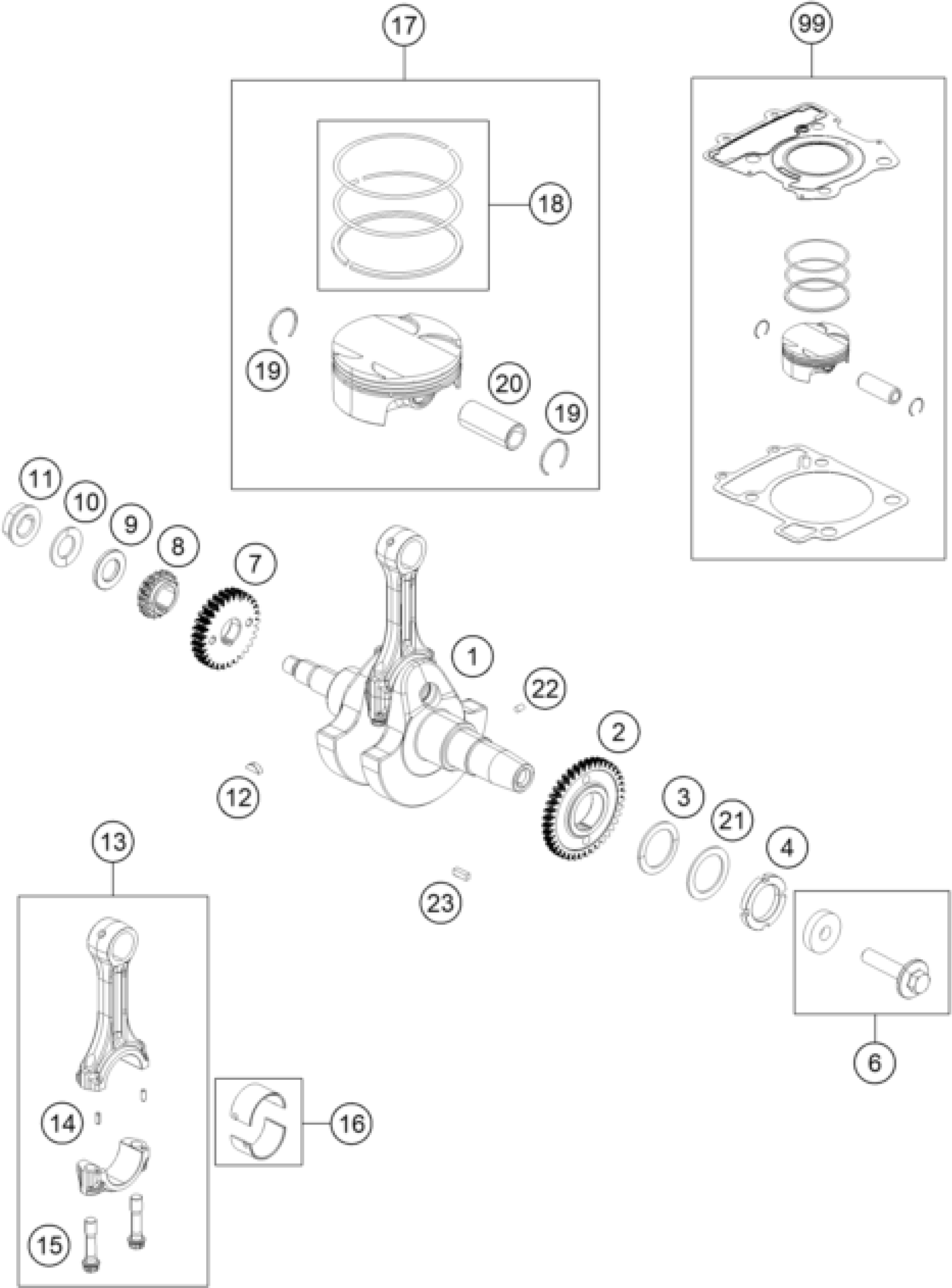

KTM 250 DUKE ORANGE B.D. 17 <2017> CRANKSHAFT, PISTON Diagram

#

Description

Price

1

Crankshaft cmpl.

93730018000

Unavailable

2

GEAR BALANCER DRIVE

90230055000

Unavailable

3

CONICAL WASHER 28,35X38X1,75

90230069000

Unavailable

4

NUT FOR DRIVE WHEEL AGW

90130018008

Unavailable

6

ROTOR SCREW CPL.

90239005050

Unavailable

7

PRIMARY GEAR 30T

90232023030

Unavailable

8

SPROCKET CRANKSHAFT

90236014000

Unavailable

9

WASHER PLAIN

90236015000

Unavailable

10

SPECIAL WASHER

90236015001

Unavailable

11

NUT M16X1,5

90230029000

Unavailable

12

WOODRUFF KEY 4X5X13

J888040050

Unavailable

13

Connecting rod

93730015000

Unavailable

14

PARALLEL PIN

90630015002

Unavailable

15

CON ROD SCREW

90230015013

Unavailable

16

BUSH BIG END

91230014010

Unavailable

16

BUSH BIG END (GREEN)

91230014011

Unavailable

16

BUSH BIG END ''BLACK''

91230014012

Unavailable

17

PISTON CPL.

91230007000

Unavailable

18

PISTON RINGS CPL.

91230030010

Unavailable

19

CIRCLIP

91230033001

Unavailable

20

PISTON PIN

91230033000

Unavailable

21

PLAIN WASHER 28,2X39X1,5

90230068000

Unavailable

22

Parallel pin

90134013000

Unavailable

99

PISTON KIT 250 RC

91230007010

Unavailable

23

Woodruff key 4X4X12

J888040150

Unavailable
