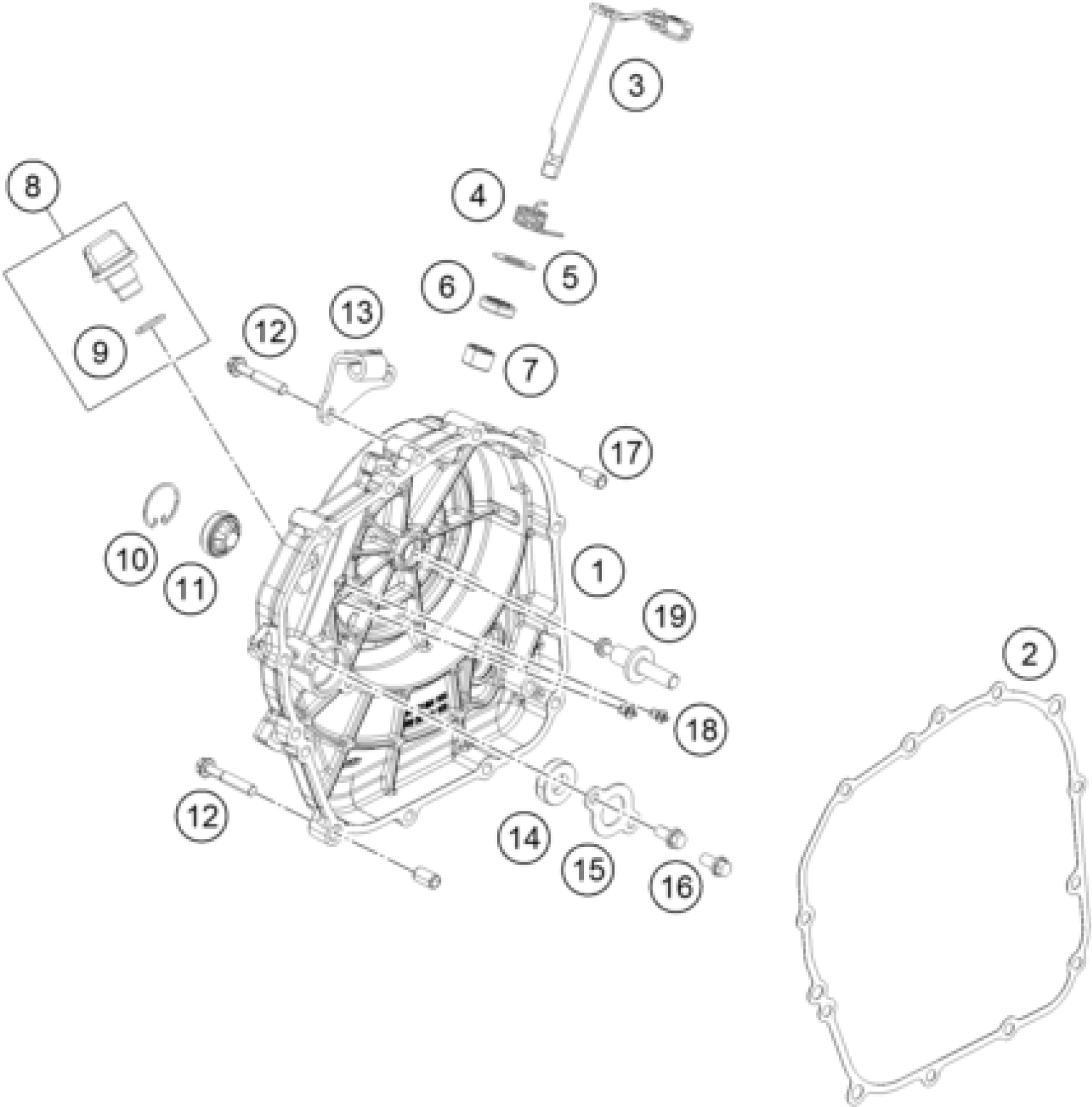

KTM 250 DUKE ORANGE B.D. 17 <2017 CLUTCH COVER Diagram

#

Description

Price

1

CLUTCH COVER WITH PLUG

90230001144

$91.81

2

GASKET CLUTCH COVER

90230027000

$5.23

3

CLUTCH RELEASE LEVER CPL.

90232048133

$11.77

4

SPRING F. RELEASE LEVER

90232048003

$2.05

5

WASHER 12,5X24X0,8MM

90132048005

$1.49

6

OIL SEAL RING

90132051000

$3.08

7

needle bearing

90132050000

$5.23

8

OIL PLUG CPL.

90130020000

$1.49

9

O-RING 13,8X2,4

J770013824

$1.49

10

WIRE CIRCLIP 28X1,5

90130095001

$2.05

11

OIL GAUGE GLASS

90130095100

$5.60

12

Hex collar screw M6X35

J025060353

$1.49

13

BRACKET CLUTCH CABLE

90230059100

$5.79

14

Oill seal ring

90134127000

$5.23

15

STOPPER SHAFT SEAL RING

90230060001

$2.05

16

FLANGED BOLT 6X12

90130078001

$1.49

17

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

18

OIL JET

90130064000

$6.07

19

PULL ROD

90232048004

$7.75
