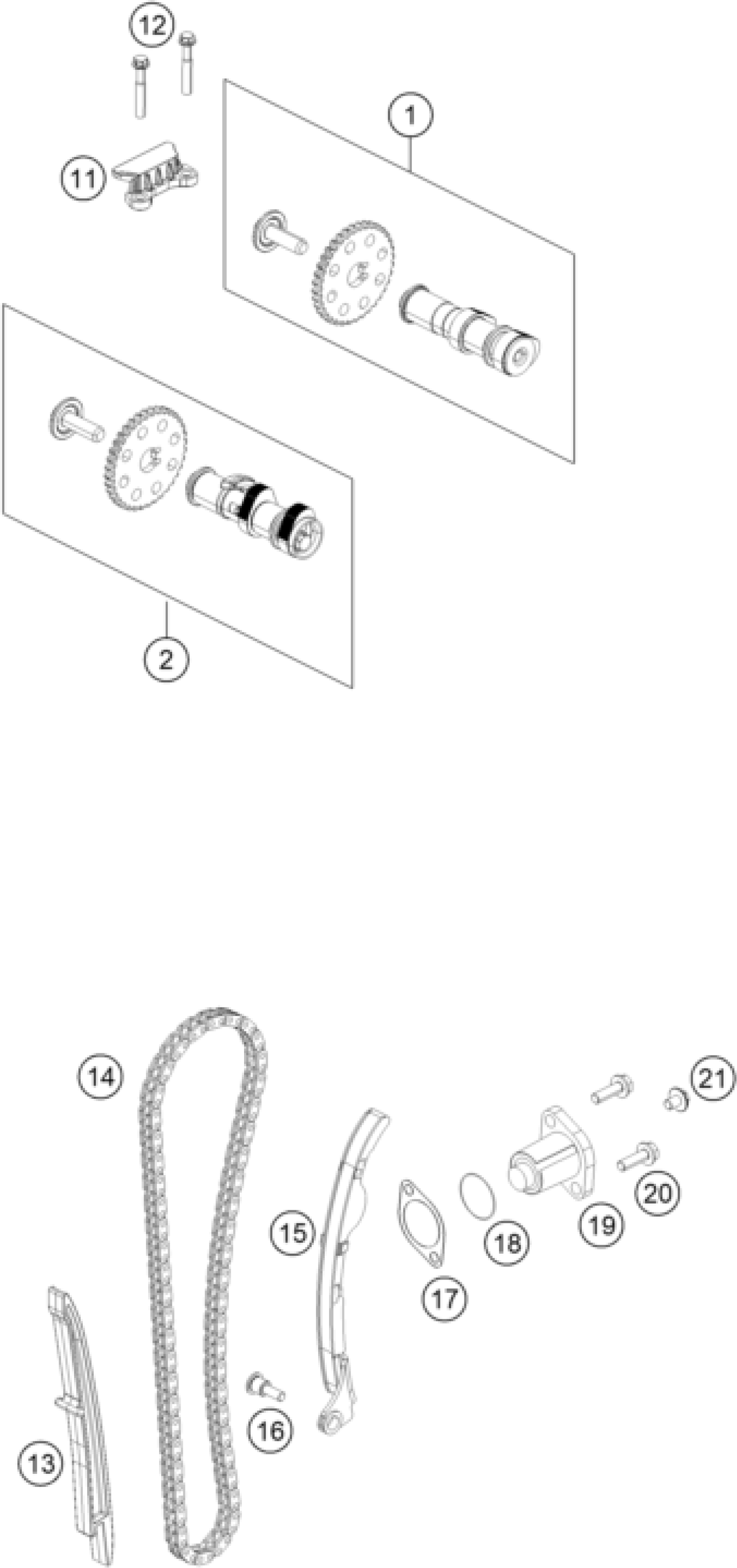

KTM 250 Duke, orange 2019 TIMING DRIVE Diagram

#

Description

Price

1

Camshaft inlet valve, complete

93736009133

Unavailable

2

Camshaft exhaust valve, comple

93736010133

Unavailable

11

CHAIN GUIDE TOP

90236018000

Unavailable

12

HH COLLAR SCREW M6X40

J025060401

Unavailable

13

TIMING CHAIN GUIDE

90236001000

Unavailable

14

TIMING CHAIN

90236013000

Unavailable

15

TENSIONER RAIL CPL.

90236002000

Unavailable

16

SCREW TENSIONER RAIL

90236002004

Unavailable

17

GASKET CHAIN ADJUSTER

90136003003

Unavailable

18

O-RING 10,15X1,5

J770010015

Unavailable

19

CHAIN ADJUSTER

90236003044

Unavailable

20

HH COLLAR SCREW M6X20

J025060201

Unavailable

21

SPECIAL SCREW 6X6

90136003002

Unavailable
