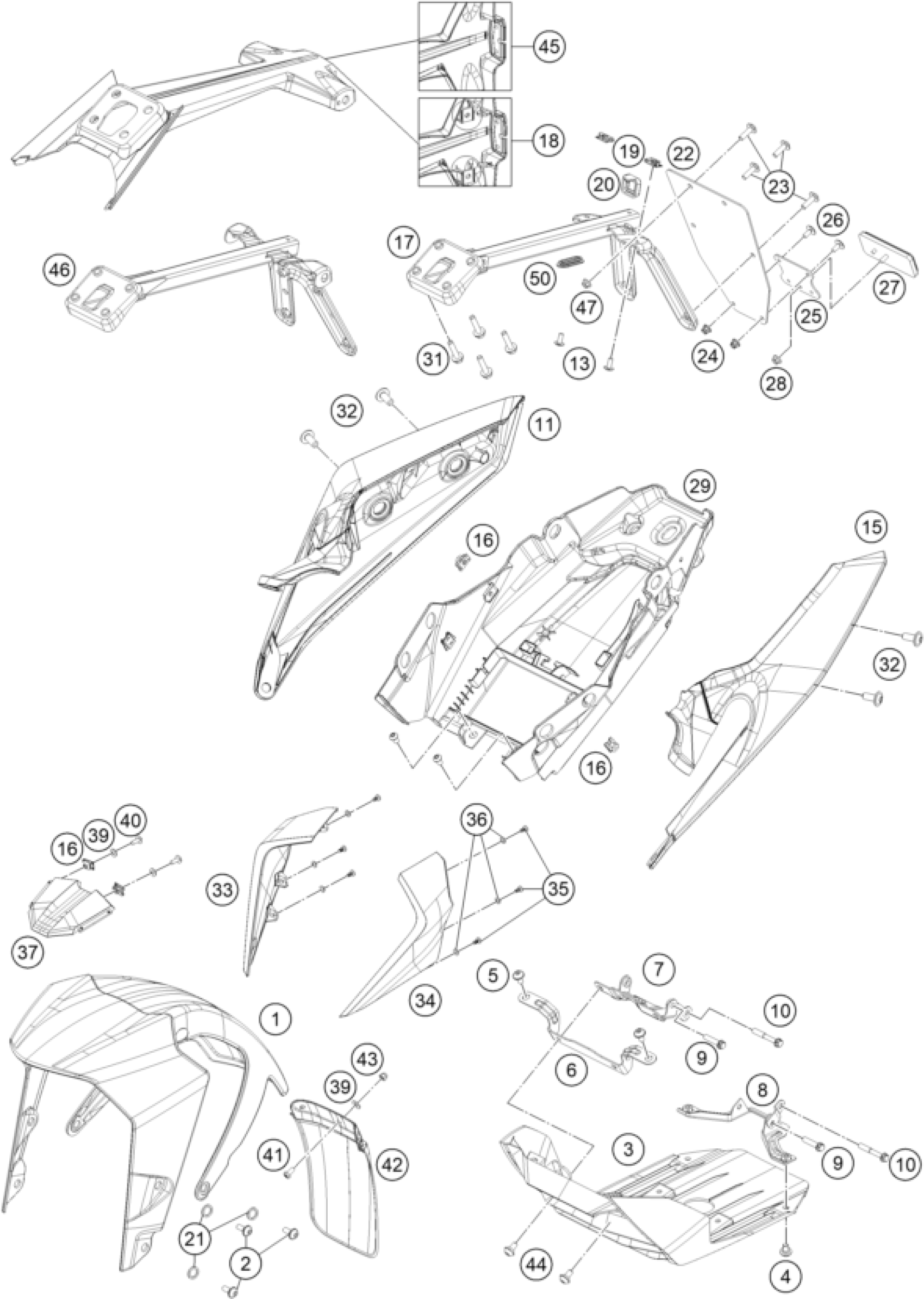

KTM 250 Duke, orange 2019 MASK, FENDERS Diagram

Front fender cpl. black

9300801003330

$54.32

Panhead screw with shoulder

J031050161

$1.49

Under-engine fairing 250/390

93308020000

$28.79

Screw M6X1X9

93008020060

$2.05

SOCKET HEAD BOLT M6X12

90508006001

$1.49

Bracket belly pan front

93008021000

$7.38

Bracket belly pan rear

93008021020

$6.07

Bracket belly pan rear

93008021120

$11.30

Hexagon srew M6X14

J025060144

$1.49

Hexagon screw M6X35

J025060359

$1.49

Side fairing rs cpl. white

9300804210028

$35.90

Lens head screw M5X12

J031050123

$1.49

Side fairing ls cpl. white

9300804110028

$40.76

CLIP NUT M5

90108050001

$2.05

Structure assembly plate numbe

93008015200

$31.97

License plate holder support c

93008015050

$11.11

Clip Nut M5

93008083010

$1.49

Protection rubber

93008015010

$1.49

Washer nylon

93009059000

$1.49

REAR FENDER EXT.

90808016000

$3.08

AH SCREW M6X1X20

90508006003

$4.11

HEX NUT M5 AF8

90102031010

$1.49

REFLECTOR MOUNTING

90514044000

$2.05

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

REFLECTOR

90514045000

$3.08

HH COLLAR NUT

90204060001

$1.49

Tail end lower part

93008019000

$45.25

Hex collar screw M6X22

J025060226

$1.49

AH SCREW M8X20

90508008001

$1.49

Head light mask right halogen

93108002000EB

Unavailable

Head light mask left halogen o

93108001000EB

Unavailable

SHEET MET.SCR. DIN 7981 3,5X13

J981350133

$1.49

Washer plain small 4.5X8X0.5XB

J125040003

$1.49

Headlight bottom cover - Orang

93108003000EB

Unavailable

WASHER D=5,5 BLACK

90514007010

$1.49

Panhead screw M5X14

J031050143

$5.23

Screw pan cross-M5X0.8XL14Xbla

93014096000

$1.49

Flap fender front

93008010010

Unavailable

Nut nyloc FL-M5X0.8

93014095000

$1.49

Screw M6X1X13

93008040000

$1.49

Licence plate holder support

93008015300

$40.85

License plate holder support,

93008015150

$21.03

Nut nyloc flanged M6X1XHT.9.1

90508016001

$1.49

grommet

93008015060

$1.49
