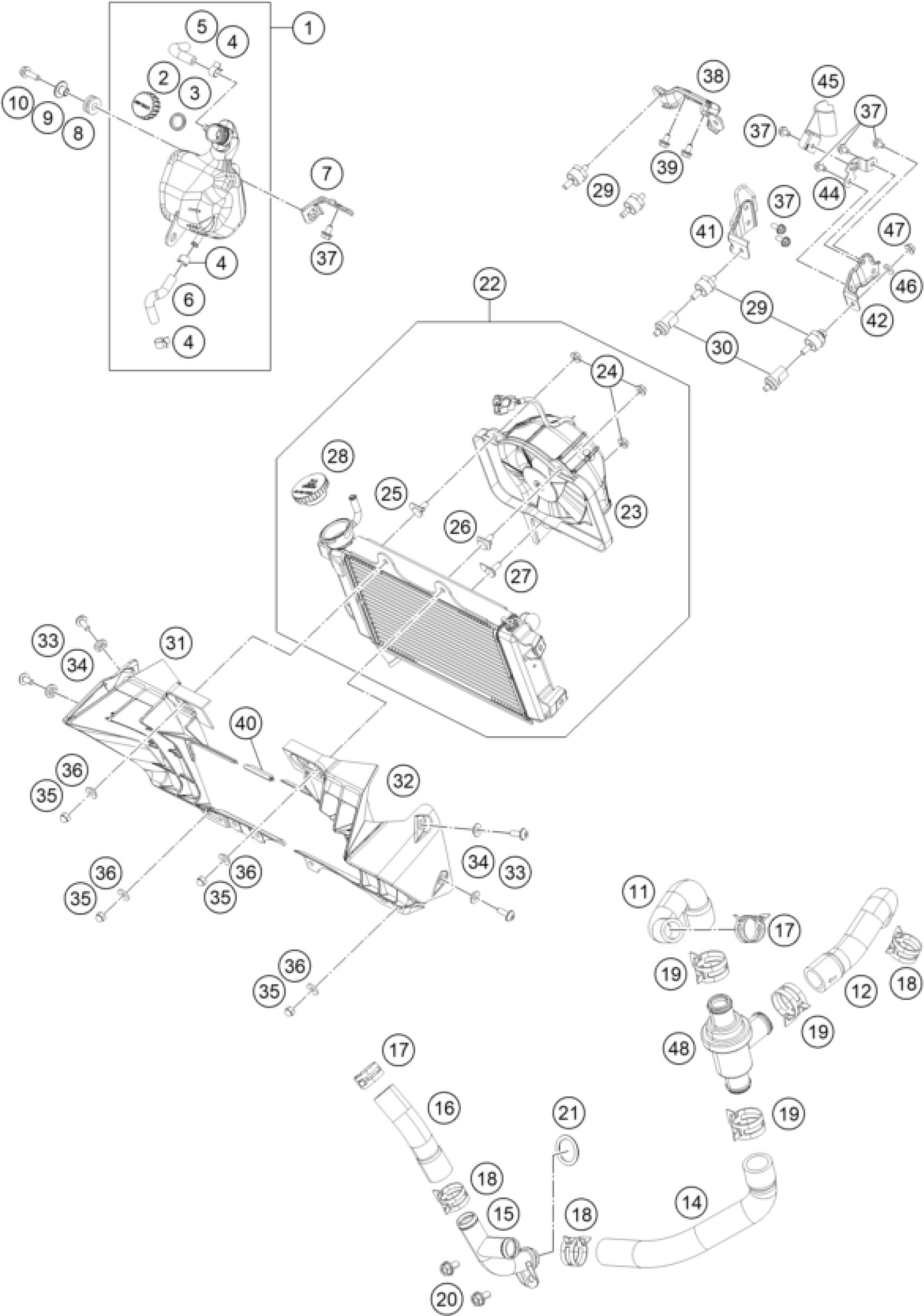

KTM 250 Duke, orange 2019 COOLING SYSTEM Diagram

#

Description

Price

1

Compensating tank complete

93035065033

$16.73

2

PLUG F. EXPANSION TANK

90135066000

$3.39

3

COMPENSATING TANK O-RING

90102055000

$1.69

4

CLAMP 10MM

90107018011

$2.54

5

HOSE 6X10,5X80 MM

90135067000

$1.69

6

Pre-formed hose

93035067000

$1.69

7

Retaining bracket

93035065050

$3.39

8

Rubber bushing

93008028050

$1.69

9

distance sleeve

93035065030

$1.69

10

HH COLLAR SCREW M6X20 SW10

J025060203

$1.69

11

Pre-formed hose

93035024000

$8.13

12

Pre-formed hose

93035025000

$6.96

14

Pre-formed hose

93035026000

$10.09

15

COOLANT PIPE T

90635071033

$31.78

16

pre-formed hose radiator-t-pie

90235024030

$8.41

17

hose clamp D24

90135020002

$3.39

18

hose clamp D26

90135020001

$3.39

19

HOSE CLAMP D28

90135020003

$3.39

20

Hex collar screw M6X14

J025060141

$1.69

21

O-RING 18,5X3

J770018530

$2.54

22

Radiator complete

93035010033

Unavailable

23

FAN CPL.

90835041033

Unavailable

24

FLANGED NUT

90835041004

$2.54

25

BRACKET FAN MOUNTING 3

90835041003

$2.54

26

BRACKET FAN MOUNTING 2

90835041002

$2.54

27

BRACKET FAN MOUNTING 1

90835041001

$2.54

28

RADIATOR CAP

90135016100

$18.05

29

SILENTBLOCK M6

93335001000

$4.24

30

Spacer for radiator cover

93035033020

$3.39

31

Radiator fairing right

93035035100

$11.58

32

Radiator fairing left

93035034100

$10.84

33

SPECIAL SCREW M6X1X16

90808043000

$1.69

34

Washer

93035033010

$1.69

35

Cap nut M6

93035003000

$1.69

36

Washer 6.5x16x2

93035044000

$1.69

37

HH COLLAR SCREW M6X10 SW10

J025060103

$1.69

38

Support

93035004000

$3.39

39

Hexagon screw M6X10

J025060101

$1.69

40

Flange

93035009050

$1.69

41

RADIATOR SUPPORT R/S BELOW

90203006001

$4.24

42

RADIATORSUPPORT L/S BELOW

90203005001

$3.39

44

Retaining bracket

93035017060

$1.69

45

THERMOSTAT HALTER

93035017050

$2.54

46

WASHER SPRING B6

J127060003

$1.69

47

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.54

48

THERMOSTAT

90135017000

$33.56
