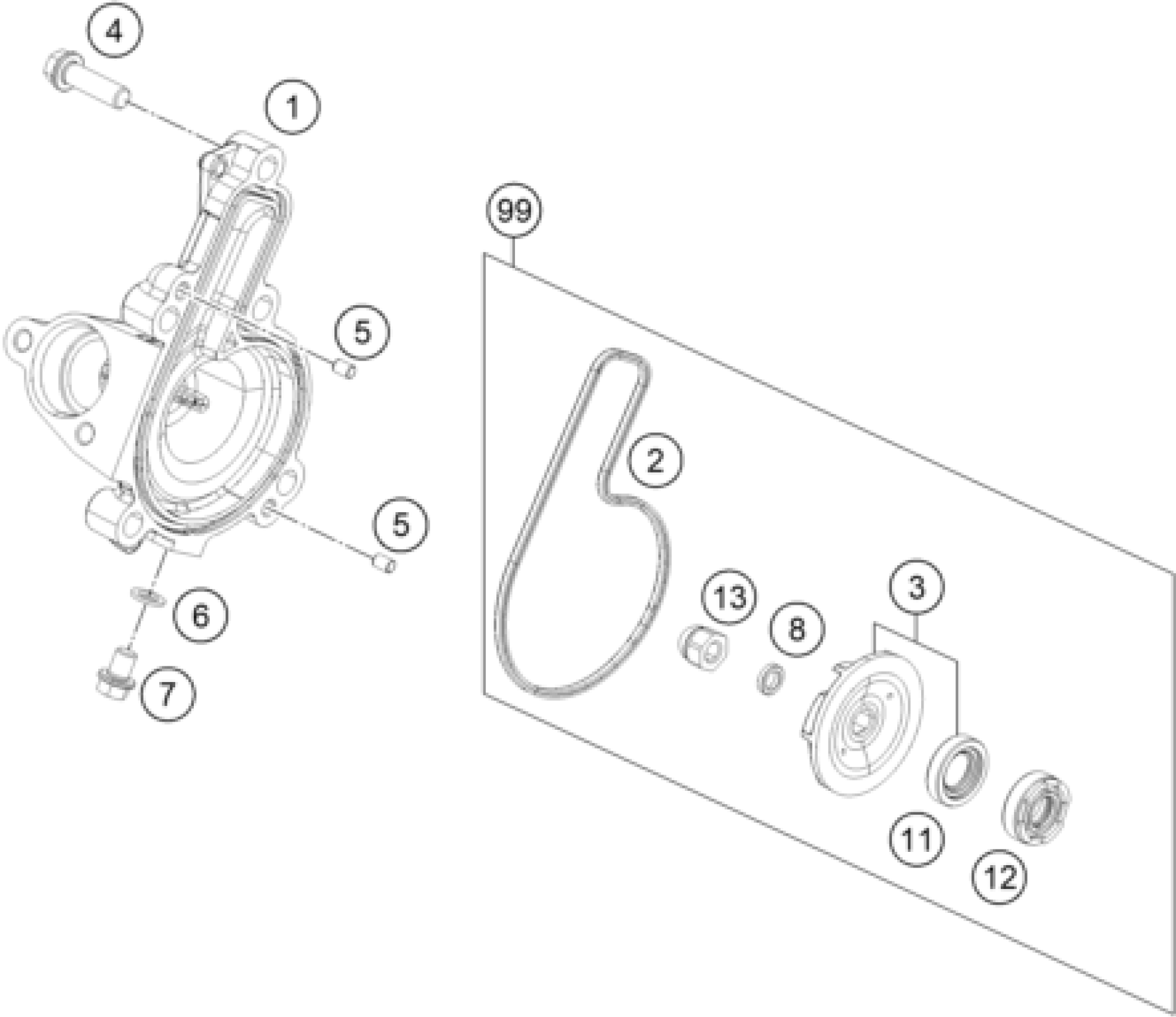

KTM 250 Duke, orange 2018 WATER PUMP Diagram

#

Description

Price

1

WATER PUMP COVER

91235052000

$19.92

2

WATER PUMP COVER GASKET

90135053000

$6.86

3

KIT WATER PUMP ROTOR & SEAL

90135055044

$7.45

4

Hex collar screw M6X20

J025060204

$1.69

5

Parallel pin

90134013000

$1.69

6

COPPER GASKET

J603061001

$1.69

7

BOLT M6X10

90110057000

$1.69

8

SPACER SHIM

90130055006

$3.39

11

SHAFT SEALING RING 12X24X5,5

J760122455

$7.75

12

Shaft seal ring 12x24x6

0760122406

$5.88

13

DOME NUT WAPU-WHEEL

90135058000

$1.69

99

Water pump rep. kit duke

90135055210

Unavailable
