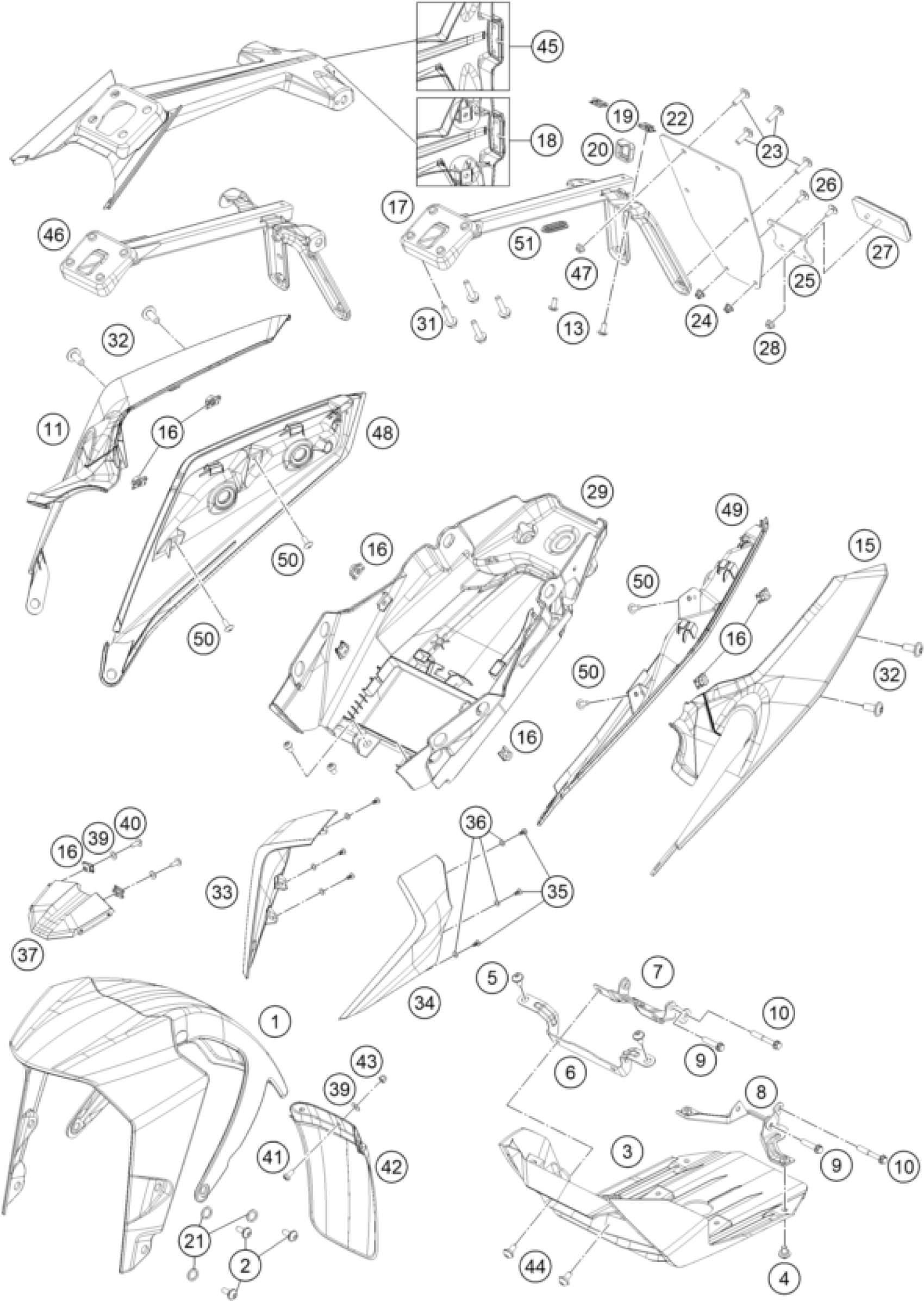

KTM 250 DUKE, black w/o ABS-B.D. 2021 MASK, FENDERS Diagram

#

Description

Price

1

ASSLY DUKE250 FRT FENDER DARK

93008010033KC

Unavailable

2

Panhead screw with shoulder

J031050161

$1.49

3

Under-engine fairing 250/390

93308020000

$28.79

4

Screw M6X1X9

93008020060

$2.05

5

SOCKET HEAD BOLT M6X12

90508006001

$1.49

6

Bracket belly pan front

93008021000

$7.38

7

Bracket belly pan rear

93008021020

$6.07

8

Bracket belly pan rear

93008021120

$11.30

9

Hexagon srew M6X14

J025060144

$1.49

10

Hexagon screw M6X35

J025060359

$1.49

11

DUKE 250 SEATCOWL UP RH DARK G

93008039000KC

Unavailable

13

Lens head screw M5X12

J031050123

$1.49

15

DUKE 250 SEATCOWL UP LH DARK G

93008018010KC

Unavailable

16

CLIP NUT M5

90108050001

$2.05

17

Structure assembly plate numbe

93008015200

$31.97

18

License plate holder support c

93008015050

$11.11

19

Clip Nut M5

93008083010

$1.49

20

Protection rubber

93008015010

$1.49

21

Washer nylon

93009059000

$1.49

22

REAR FENDER EXT.

90808016000

$3.08

23

AH SCREW M6X1X20

90508006003

$4.11

24

HEX NUT M5 AF8

90102031010

$1.49

25

REFLECTOR MOUNTING

90514044000

$2.05

26

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

27

REFLECTOR

90514045000

$3.08

28

HH COLLAR NUT

90204060001

$1.49

29

Tail end lower part

93008019000

$45.25

31

Hex collar screw M6X22

J025060226

$1.49

32

AH SCREW M8X20

90508008001

$1.49

33

DUKE 250 SIDE MASK RH DARK GAL

93108002000KC

Unavailable

34

DUKE 250 SIDE MASK LH DARK GAL

93108001000KC

Unavailable

35

SHEET MET.SCR. DIN 7981 3,5X13

J981350133

$1.49

36

Washer plain small 4.5X8X0.5XB

J125040003

$1.49

37

MIDDLE MASK JP181284 DARK GALA

93108003000KC

Unavailable

39

WASHER D=5,5 BLACK

90514007010

$1.49

40

Panhead screw M5X14

J031050143

$5.23

41

Screw pan cross-M5X0.8XL14Xbla

93014096000

$1.49

42

Flap fender front

93008010010

Unavailable

43

Nut nyloc FL-M5X0.8

93014095000

$1.49

44

Screw M6X1X13

93008040000

$1.49

45

License plate holder support,

93008015150

$21.03

46

Licence plate holder support

93008015300

$40.85

47

Nut nyloc flanged M6X1XHT.9.1

90508016001

$1.49

48

SEAT COWL LOWER RH

93008019030

$27.48

49

SEAT COWL LOWER LH

93008019020

$26.64

50

Lens head screw M5X12

J031050123

$1.49

51

grommet

93008015060

$1.49
