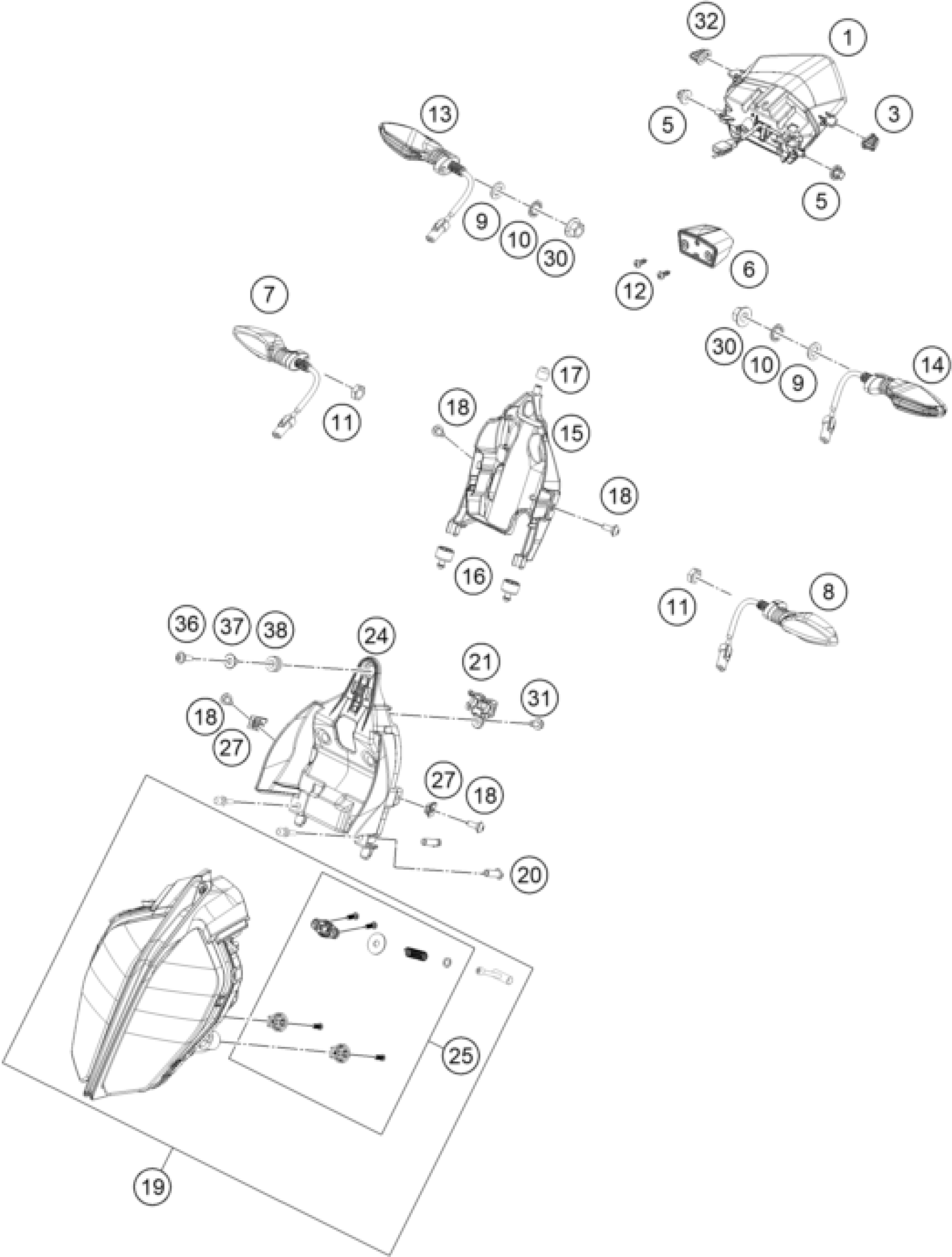

KTM 250 DUKE, black w/o ABS-B.D. 2021 LIGHTING SYSTEM Diagram

#

Description

Price

1

lamp tail MY17

93014040100

Unavailable

3

Rubber grommet tail light left

93014040020

Unavailable

5

Rubber bushing

93014040010

Unavailable

6

LICENSE PLATE ILLUMINATION

90114047000

Unavailable

7

Indicator front rh

93014026000

Unavailable

8

Indicator front lh

93014025000

Unavailable

9

WASHER PLAIN 10,5

J125100003

Unavailable

10

Toothed washer, M10

J06797100183

Unavailable

11

Nut hex thin-M10x1.25

J934100006

Unavailable

12

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

Unavailable

13

FLASHER REAR R/S

90514036100

Unavailable

14

FLASHER REAR L/S

90514035100

Unavailable

15

Support

93014013000

Unavailable

16

Rubber bushing

93014015000

Unavailable

17

Rubber bushing

93014014000

Unavailable

18

Screw M6X1X13

93008040000

Unavailable

19

Head light

93214001000

Unavailable

20

Insert M6 LED HL holder

93014021000

Unavailable

21

Holder LED HL adjustment mecha

93014020000

Unavailable

24

Holder headlamp LED

93014019100

Unavailable

25

Kit LED lamp Bush

93014099000

Unavailable

27

Range change metal nut M6

93008084010

Unavailable

30

Hex nut, M10

J934100001

Unavailable

31

Screw M6X1X9

93008020060

Unavailable

32

Rubber grommet tail light righ

93014049000

Unavailable

36

AH SCREW M6X1X20

90508006003

Unavailable

37

Collar head lamp holder MTG

93014018100

Unavailable

38

Rubber bushing

93014017000

Unavailable
