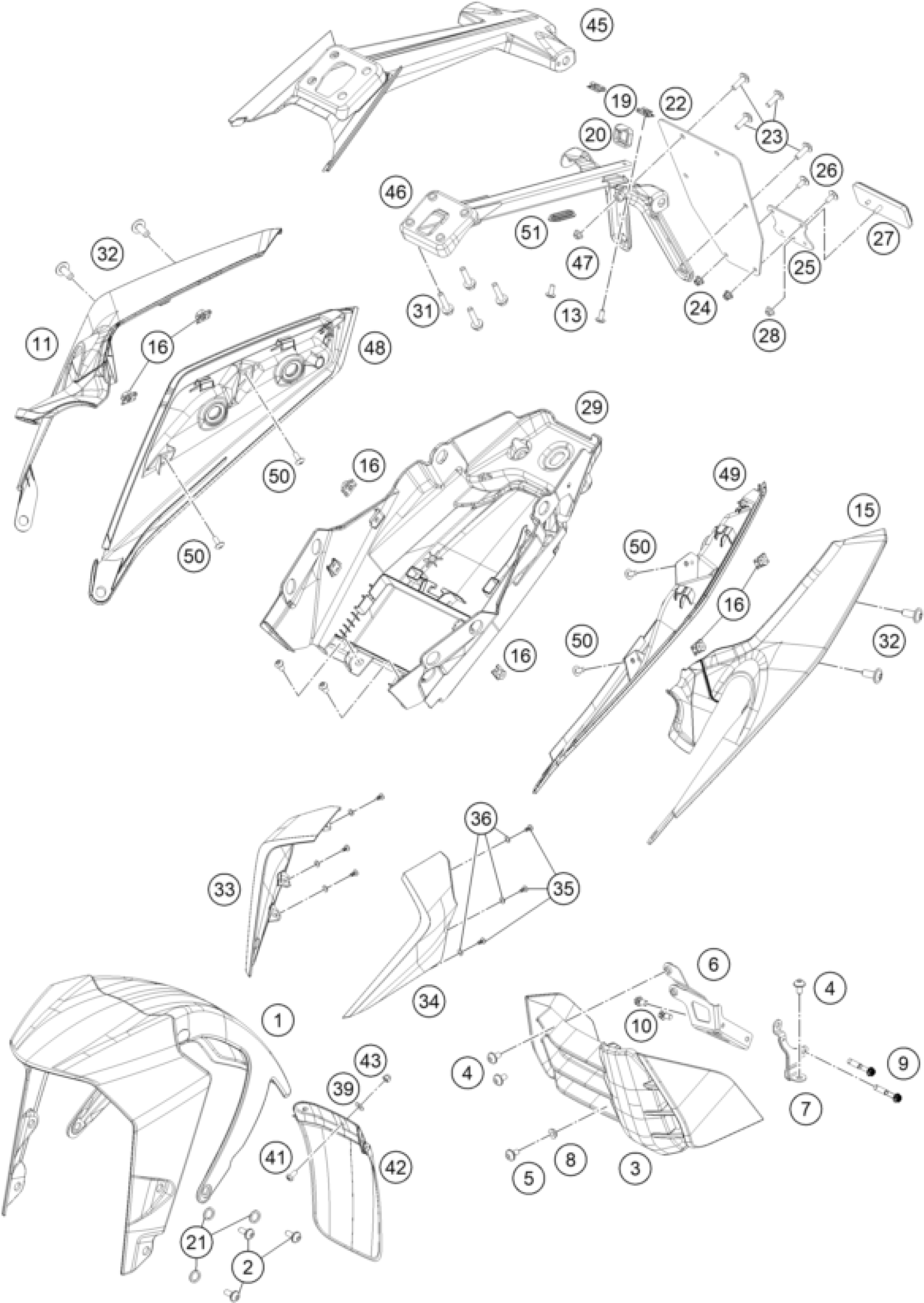

KTM 250 DUKE, black - B.D. 2022 MASK, FENDERS Diagram

#

Description

Price

1

ASSLY DUKE250 FRT FENDER DARK

93008010033KC

Unavailable

2

Panhead screw with shoulder

J031050161

$1.49

3

Belly Pan

93308020100

$37.67

4

Screw M6X1X9

93008020060

$2.05

5

screw butn hd-m5x0.8xl10xpreco

J031050106

$1.49

6

Front spoiler bracket right

94308021020

$1.49

7

Front spoiler bracket left

94308021010

$1.49

8

Sleeve 6.2x4x9

J800000600401

$1.49

9

Hexagon srew M6X14

J025060144

$1.49

10

Hexagon collar screw M5x10

J900000501001

$1.49

11

DUKE 250 SEATCOWL UP RH DARK G

93008039000KC

Unavailable

13

Lens head screw M5X12

J031050123

$1.49

15

DUKE 250 SEATCOWL UP LH DARK G

93008018010KC

Unavailable

16

CLIP NUT M5

90108050001

$2.05

19

Clip Nut M5

93008083010

$1.49

20

Protection rubber

93008015010

$1.49

21

Washer nylon

93009059000

$1.49

22

REAR FENDER EXT.

90808016000

$3.08

23

AH SCREW M6X1X20

90508006003

$4.11

24

HEX NUT M5 AF8

90102031010

$1.49

25

REFLECTOR MOUNTING

90514044000

$2.05

26

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

27

REFLECTOR

90514045000

$3.08

28

HH COLLAR NUT

90204060001

$1.49

29

Tail end lower part

93008019000

$45.25

31

Hex collar screw M6X22

J025060226

$1.49

32

AH SCREW M8X20

90508008001

$1.49

33

SIDE MASK RH FR FAIRING DARK G

93008002000KC

$15.42

34

SIDE MASK LH FR FAIRING DARK G

93008001000KC

$15.42

35

Lens head screw M3,5X10

J981030101

$1.49

36

Washer plain small 4.5X8X0.5XB

J125040003

$1.49

39

WASHER D=5,5 BLACK

90514007010

$1.49

41

Screw pan cross-M5X0.8XL14Xbla

93014096000

$1.49

42

Flap fender front

93008010010

Unavailable

43

Nut nyloc FL-M5X0.8

93014095000

$1.49

45

License plate holder support,

93008015150

$21.03

46

Licence plate holder support

93008015300

$40.85

47

Nut nyloc flanged M6X1XHT.9.1

90508016001

$1.49

48

SEAT COWL LOWER RH

93008019030

$27.48

49

SEAT COWL LOWER LH

93008019020

$26.64

50

Lens head screw M5X12

J031050123

$1.49

51

grommet

93008015060

$1.49
