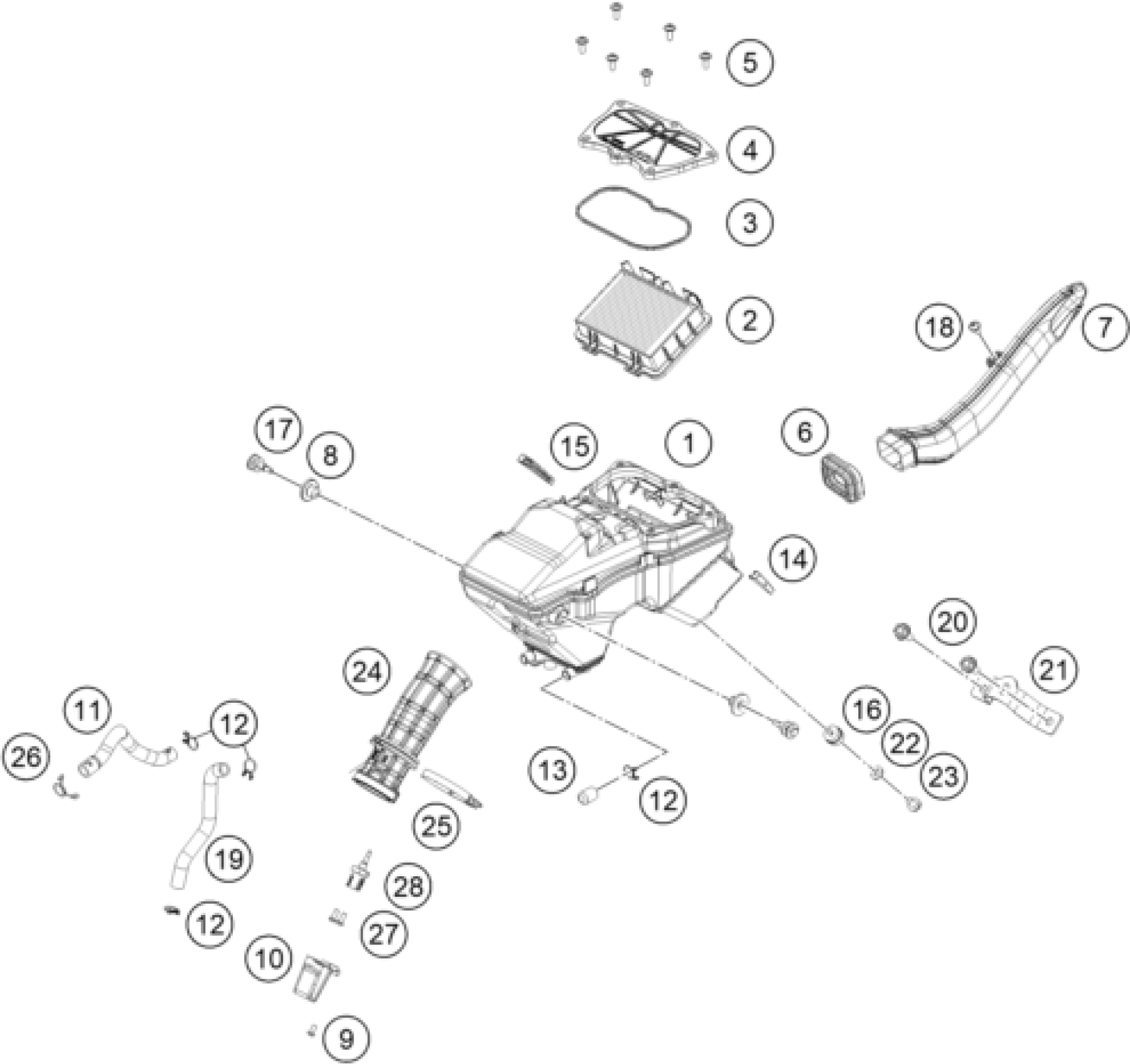

KTM 250 DUKE, black - B.D. 2021 AIR FILTER Diagram

#

Description

Price

1

Air box CPL

94206001000

Unavailable

2

FILTER

93006015000

$22.24

3

Seal

93006020050

$1.49

4

Air filter box cover

93006002000

$10.46

5

Flat-head screw M6

93006039000

$1.49

6

Carburetor connection boot

93006001060

$2.05

7

Intake snorkel cmpl.

94306040033

$14.86

8

Damping rubber

93006001080

$1.49

9

Oval head screw M5X10

J005050101

Unavailable

10

SENSOR COVER

93041080060

$1.49

11

Engine vent hose

93030088050

$22.71

12

HOSE CLAMP

90130087001

$3.08

13

Plug

93030089000

$1.49

14

Rubber cowl pad

93006001015

$1.49

15

Distance piece air filter box

93006021000

$1.49

16

SILENT BLOCK AIRFILTER

90106001007

$5.88

17

Screw

93007046050

$6.54

18

SOCKET HEAD BOLT M6X12

90508006001

$1.49

19

Engine vent hose

93030087050

$3.08

22

Washer - plain

J125060001

$1.49

23

HH COLLAR SCREW M6X8 SW10

J026060083

$1.49

24

Intake snorkel cmpl.

94306040033

$14.86

25

hose clamp

90241002010

$5.23

26

SENSOR COVER

93041080060

$1.49

27

Oval head screw M5X10

J005050101

Unavailable

28

Distance piece air filter box

93006021000

$1.49
