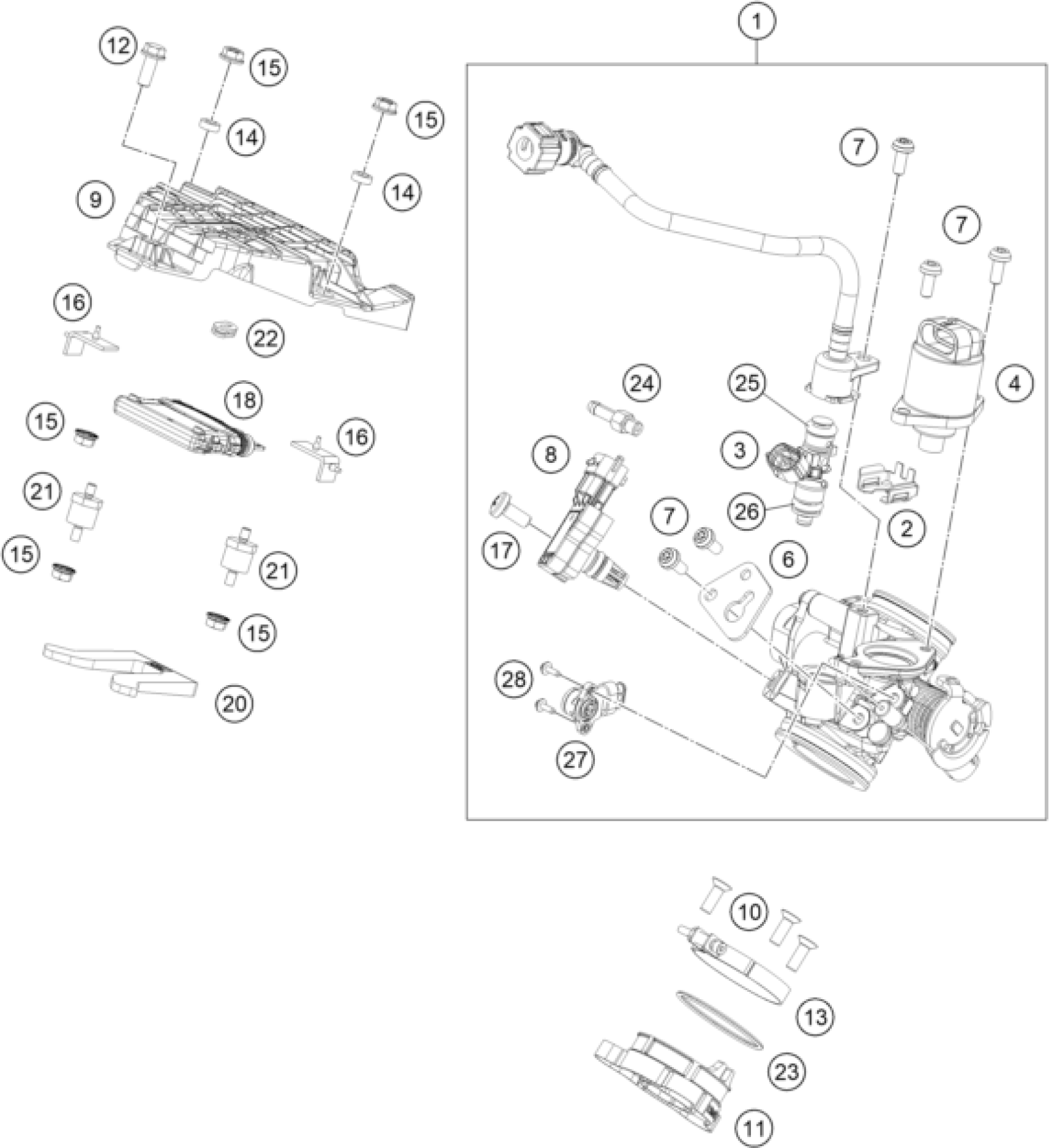

KTM 250 DUKE, black 2022 THROTTLE BODY Diagram

#

Description

Price

1

BODY THROTTLE ASSEMBLY

93241001100

Unavailable

2

INJECTOR CLIP

90141001001

$3.08

3

FUEL INJECTOR

90641023000

Unavailable

4

IDLE ADJUSTER

90641072000

$80.31

6

CABLE SUPPORT

90141023002

$3.08

7

SPECIAL SCREW M5X12

90141023005

$1.49

8

Pressure sensor

93041085000

$65.16

9

Control unit bracket

93041029000

$7.38

10

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

11

CONN. FLANGE CYLINDER-THR.BODY

90641002300

$22.81

12

Hexagonal bolt M6x14

J933060146

$1.49

13

CLAMP

90641002010

$4.11

14

Sleeve

93041029020

$1.49

15

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

16

rubber band, ECU

93841036000

$22.99

17

SPECIAL SCREW M6X14

90141071001

$5.41

18

Control unit

93041031000

Unavailable

20

Rubber cowl pad

93041030100

$2.05

21

Bump rubber ECU support

93011038000

$4.11

22

DAMPER ECU

93541034000

$11.49

23

O-RING CONN. FL. CYL.-THR.BODY

90141002006

$2.05

24

NOZZLE EVAP

90641801001

$4.11

25

O-ring

55641023020

$10.56

26

O-ring

55641023010

$7.66

27

Throttle position sensor

90641002000

Unavailable

28

SPECIAL SCREW M4X13

90141070001

$1.49
