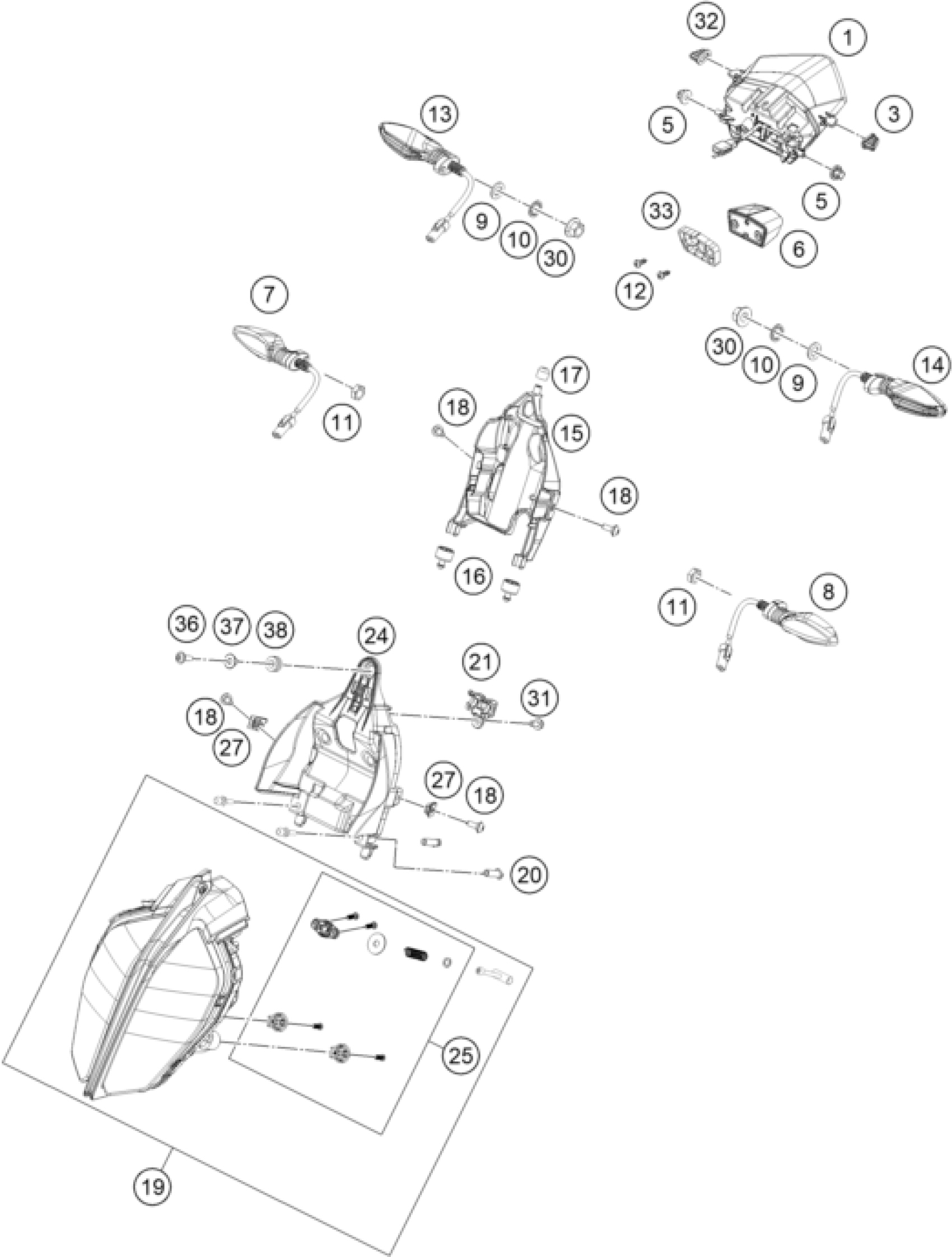

KTM 250 DUKE, black 2022 LIGHTING SYSTEM Diagram

#

Description

Price

1

lamp tail MY17

93014040100

$118.36

3

Rubber grommet tail light left

93014040020

$1.49

5

Rubber bushing

93014040010

$1.49

6

LICENSE PLATE ILLUMINATION

90114047000

$26.55

7

Indicator front rh

93014026000

$37.39

8

Indicator front lh

93014025000

Unavailable

9

WASHER PLAIN 10,5

J125100003

$1.49

10

Toothed washer, M10

J06797100183

$1.49

11

Nut hex thin-M10x1.25

J934100006

$1.49

12

Oval head screw M4,2x22

J981042226

$1.49

13

FLASHER REAR R/S

90514036100

$43.47

14

FLASHER REAR L/S

90514035100

$46.74

15

Support

93014013000

$8.78

16

Rubber bushing

93014015000

$1.49

17

Rubber bushing

93014014000

$1.49

18

Screw M6X1X13

93008040000

$1.49

19

Head light

93214001000

$670.01

20

Insert M6 LED HL holder

93014021000

$2.05

21

Holder LED HL adjustment mecha

93014020000

$1.49

24

Holder headlamp LED

93014019100

$19.53

25

Kit LED lamp Bush

93014099000

$5.23

27

Range change metal nut M6

93008084010

$1.49

30

Hex nut, M10

J934100001

$1.49

31

Screw M6X1X9

93008020060

$2.05

32

Rubber grommet tail light righ

93014049000

$1.49

36

AH SCREW M6X1X20

90508006003

$4.11

37

Collar head lamp holder MTG

93014018100

$1.49

38

Rubber bushing

93014017000

$1.49

33

Spacer license plate lighting

90114047010

Unavailable
