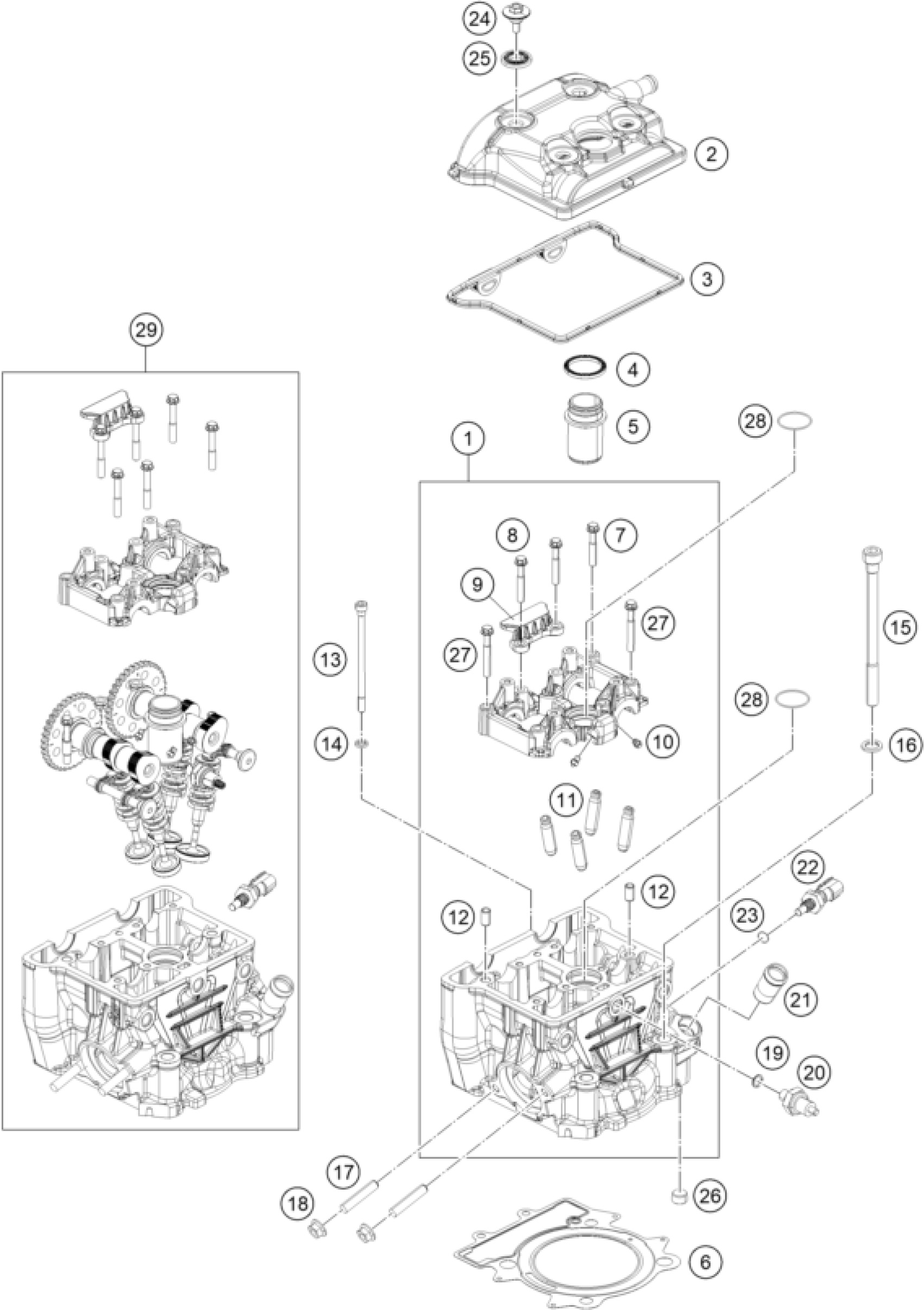

KTM 250 DUKE, black 2022 CYLINDER HEAD Diagram

#

Description

Price

1

HEAD CYLINDER-HOLDER CAMSHAFT

93736020033

Unavailable

2

Valve mechanism cover cmpl.

93336052100

Unavailable

3

Gasket rubber

93836053000

Unavailable

4

GASKET SPARK PLUG SHAFT

90236054000

Unavailable

5

SPARK PLUG SHAFT

90236074000

Unavailable

6

Cylinder head gasket

93730036000

Unavailable

7

Hexagon screw M6X35

J025060359

Unavailable

8

HH COLLAR SCREW M6X45

J025060453

Unavailable

9

CHAIN GUIDE TOP

90236018000

Unavailable

10

OIL JET

90130064000

Unavailable

11

VALVE GUIDE

90236025000

Unavailable

12

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

13

SOCKET HEAD SCREW M6X102

J912061023

Unavailable

14

WASHER 7X11X2

J125070003

Unavailable

15

SOCKET HEAD SCREW M10X144

J912101449

Unavailable

16

WASHER 11,2X18X2

J125110003

Unavailable

17

STUD M8

90136020001

Unavailable

18

FLANGED NUT M8 H7,5 WS12

90136038000

Unavailable

19

O-RING

90138091001

Unavailable

20

OIL PRESSURE SENSOR

90138091000

Unavailable

21

PIPE COOLANT

90235019000

Unavailable

22

TEMPERATURE SENSOR

90135047000

Unavailable

23

O-ring 7.65x1.78

J770000817800

Unavailable

24

VALVE COVER SCREW

90136052020

Unavailable

25

DECOUPLING ELEMENT

90136052010

Unavailable

26

PLUG

90236024000

Unavailable

27

BOLT-FLANGE-KAE ST-F DIA-06 L-

J900000604003

Unavailable

28

O-RING 29,8X1,9

J770029819

Unavailable

29

Cylinder head cmpl.

93736020044

Unavailable
