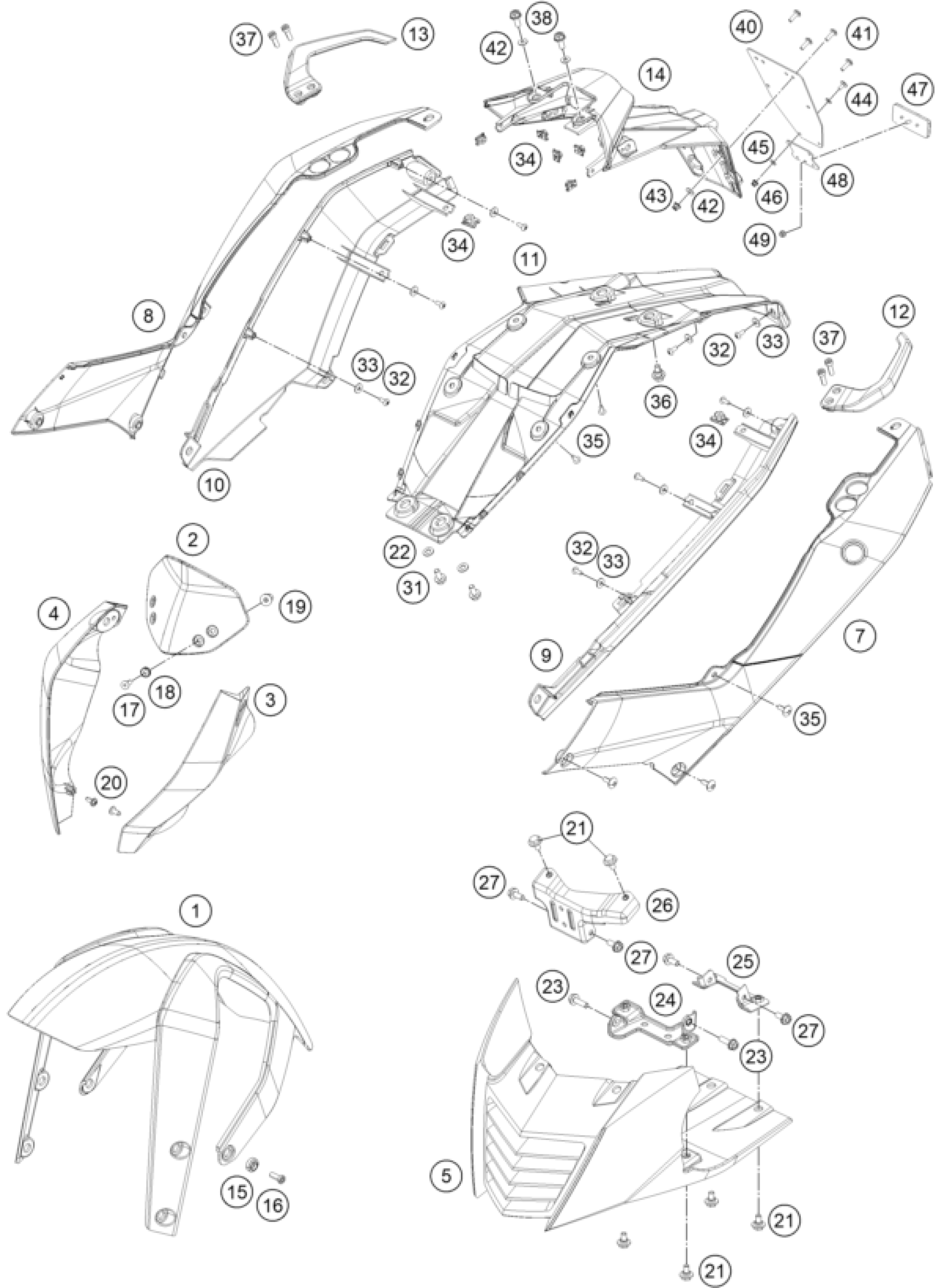

KTM 250 DUKE BL. ABS B.D. 16 <2016> MASK, FENDERS Diagram

#

Description

Price

1

FRONT FENDER DUKE - EBONY BLAC

9010801000030A

Unavailable

2

WIND SHIELD

90108008000

$19.81

3

SIDE MASK LH DUKE -EBONY BLACK

9010800200030A

Unavailable

4

SIDE MASK RH DUKE - EBONY BLAC

9010800300030A

Unavailable

5

BELLY PAN

90208020000

$25.80

7

SEAT COWL LH TOP DUKE - SATIN

9010804100033

Unavailable

8

SEAT COWL RH DUKE SATIN BLACK

9010804200033

Unavailable

9

SIDE COVER BOTTOM L/S

90108043000

$23.74

10

SIDE COVER BOTTOM R/S

90108044000

$21.68

11

UNDER TRAY

91208019000

Unavailable

12

GRIP L/S CPL.

90112008033

$18.78

13

GRIP R/S CPL.

90112009033

$18.60

14

NUMBER PLATE SUPPORT

91208015000

$37.14

15

BUSHING FRONT FENDER

90108010050

$4.11

16

SPECIAL SCREW M6X1X20

90601097000

Unavailable

17

AH SCREW M5X20

J019050201

$1.49

18

WASHER FOR WINDSHIELD

90108008050

$5.23

19

WELL NUT M5 L16

90108008060

$2.05

20

EJOT PT screw K50x12

0081050121

$2.05

21

SPECIAL SCREW M6X12X3

90108076000

$2.05

22

PLAIN WASHER 6,5X13X1

J125060003

$1.49

23

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

24

BRACKET BELLY PAN MIDDLE MTG

90208020001

$5.23

25

BRACKET BELLY PAN REAR MTG

90208020003

$2.05

26

BRACKET BELLY PAN TOP MTG

90208020002

$5.98

27

HH COLLAR SCREW M6X14 SW8

J025060143

$1.49

31

HH COLLAR SCREW M6X14 SW8

J025060143

$1.49

32

CROSS PAN SCREW 4X12 PH

J081040121

$1.49

33

WASHER 4,5X12X1MM

J021040003

$1.49

34

CLIP NUT M5

90108050001

$2.05

35

CHEESE-HEAD SCREW M5X16

J031050163

$1.49

36

SPECIAL SCREW M6X12,5 WS8

90108015050

$2.05

37

AH SCREW M8X27

J020080274

$2.05

38

HH COLLAR SCREW M6X14 WS10

J025060149

$1.49

40

REAR FENDER EXT.

90808016000

$3.08

41

AH SCREW M6X1X20

90508006003

$4.11

42

WASHER

90108015020

$1.49

43

Nut nyloc flanged M6X1XHT.9.1

90508016001

$1.49

44

CHEESE-HEAD SCREW M5X15

J031050153

$1.49

45

WASHER D=5,5

90508015010

$1.49

46

HEX NUT M5 AF8

90102031010

$1.49

47

REFLECTOR

90514045000

$3.08

48

REFLECTOR MOUNTING

90514044000

$2.05

49

HH COLLAR NUT

90204060001

$1.49
