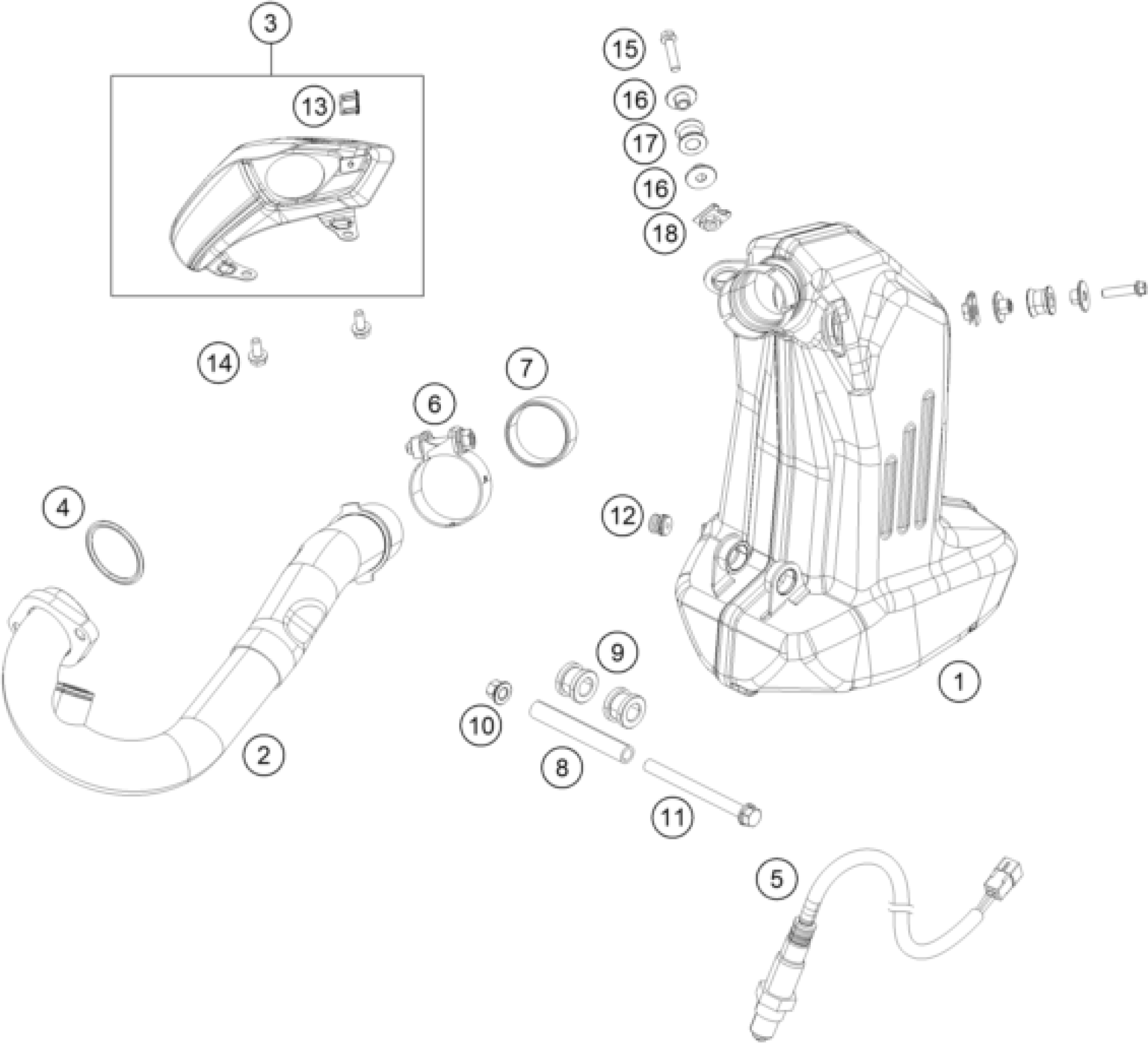

KTM 250 DUKE BL. ABS B.D. 16 <2016> EXHAUST SYSTEM Diagram

#

Description

Price

1

SILENCER CPL.

91205083501

Unavailable

2

MUFFLER CPL.

90205007000

$118.18

3

HEAT SHIELD CPL.

90105090033

$33.00

4

exhaust flange gasket

90105004000

$5.23

5

oxygen sensor

90141090000

$188.11

6

MUFFLER CLAMP

90205050000

$13.64

7

GASKET MUFFLER

90205005005

$7.10

8

muffler mounting tube

90105084000

$4.11

9

damper, bottom

90105068100

$1.49

10

FLANGED NUT M8 H7,5 WS12

90136038000

$1.49

11

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

12

DAMPER HEAT SHIELD

90205085000

$1.49

13

RUBBER CAP

90105085000

$2.05

14

HH COLLAR SCREW M6X14 SW10

J025060146

$1.49

15

HH-COLLAR SCREW M6X35 WS8

J025060356

$1.49

16

muffler mounting spacer bushin

90205086001

$2.05

17

damper, bottom

90205068000

$2.05

18

CLIPNUT M6

90105000001

$1.49
