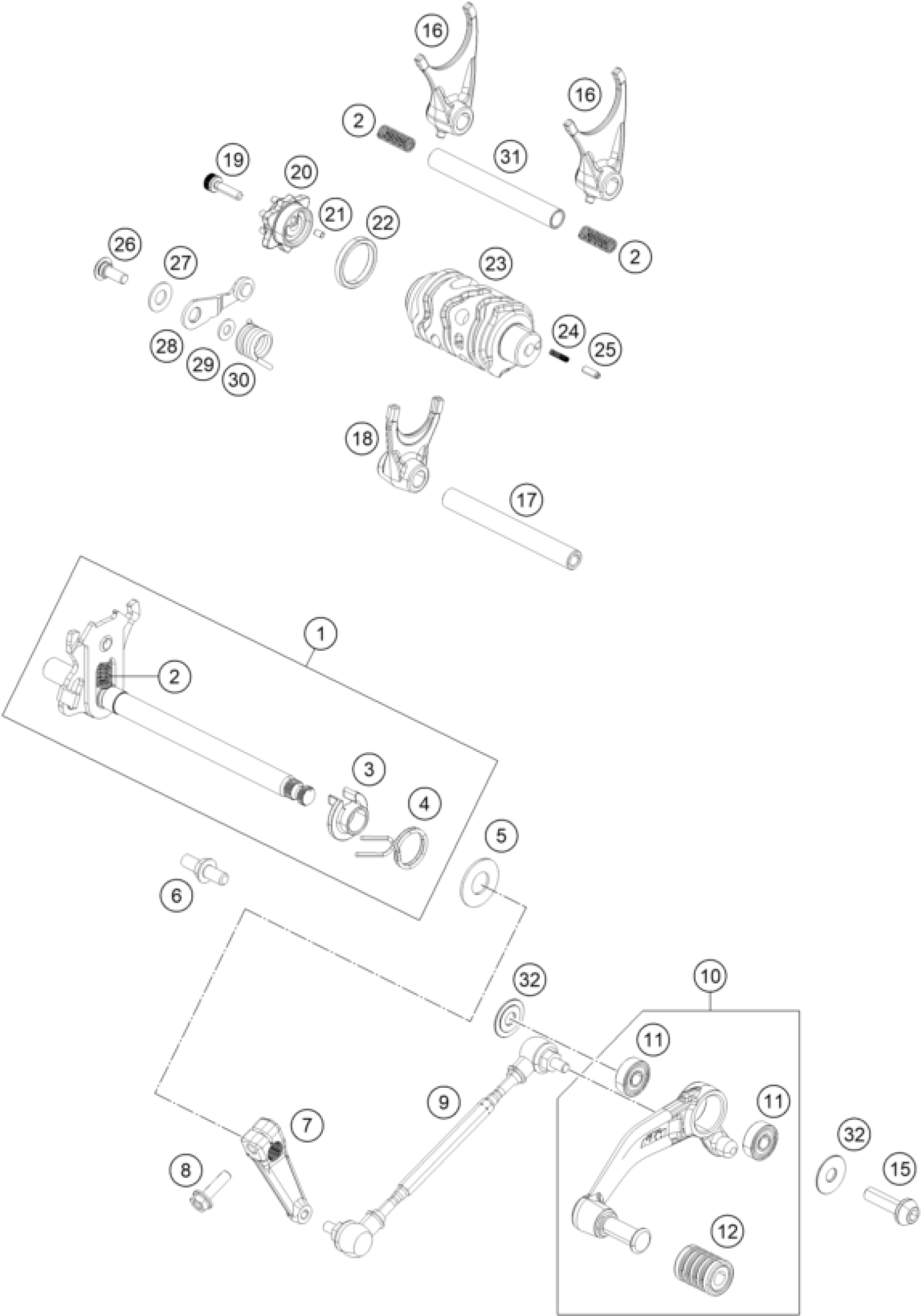

KTM 250 DUKE BL. ABS B.D. 16 <2016> SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90234005033

$30.47

5

STOP DISK 14X30X1,5

90134050000

$2.05

6

SPRING GUIDE

90134016000

$2.05

7

BAFFLE SHIFT LEVER

90634031010

$17.76

8

HH COLLAR SCREW M6X22 SW10

J025060223

$1.49

9

TENSION ROD CPL.

90634040033

$23.55

10

GEARCHANGE LEVER

90134031233

$51.32

11

BALL BEARING 608

J625060800

$7.94

12

GEAR SHIFT LEVER RUBBER

90134035000

$2.05

15

BOLT SHIFT LEVER

90134034300

$2.05

16

SHIFT FORK

90234002000

$22.15

17

SHIFT RAIL

90234019000

$5.88

18

SHIFT FORK

90234001000

$19.53

19

AH SCREW M6X20 SELF LOCKING

90134015003

$4.11

20

SHIFT DRUM LOCATING

90134015000

$16.73

21

Parallel pin

90134013000

$1.49

22

SPACER

90134012002

$3.08

23

SHIFTING DRUM

90234012000

$27.20

24

CONTACT SPRING

90134012003

Unavailable

25

BOLT FOR GEAR INDICATOR

90134012001

$1.49

26

SCREW LOCKING LEVER

90134025000

$2.05

27

WASHER LOCKING LEVER

90134030000

$3.08

28

LOCKING LEVER CPL.

90134024033

$4.11

29

WASHER 6X12,8X1,2

90134039000

$1.49

30

ARRESTING LEVER SPRING

90134023000

$2.05

31

SHIFT RAIL

90234020000

$7.00

32

thrust washer, gear shift leve

90134031020

$2.05

2

SPRING SHIFT RAIL

90234039000

$1.49

3

SPRING BUSHING

90134022000

$4.11

4

RETURN SPRING

90134014000

$4.11
