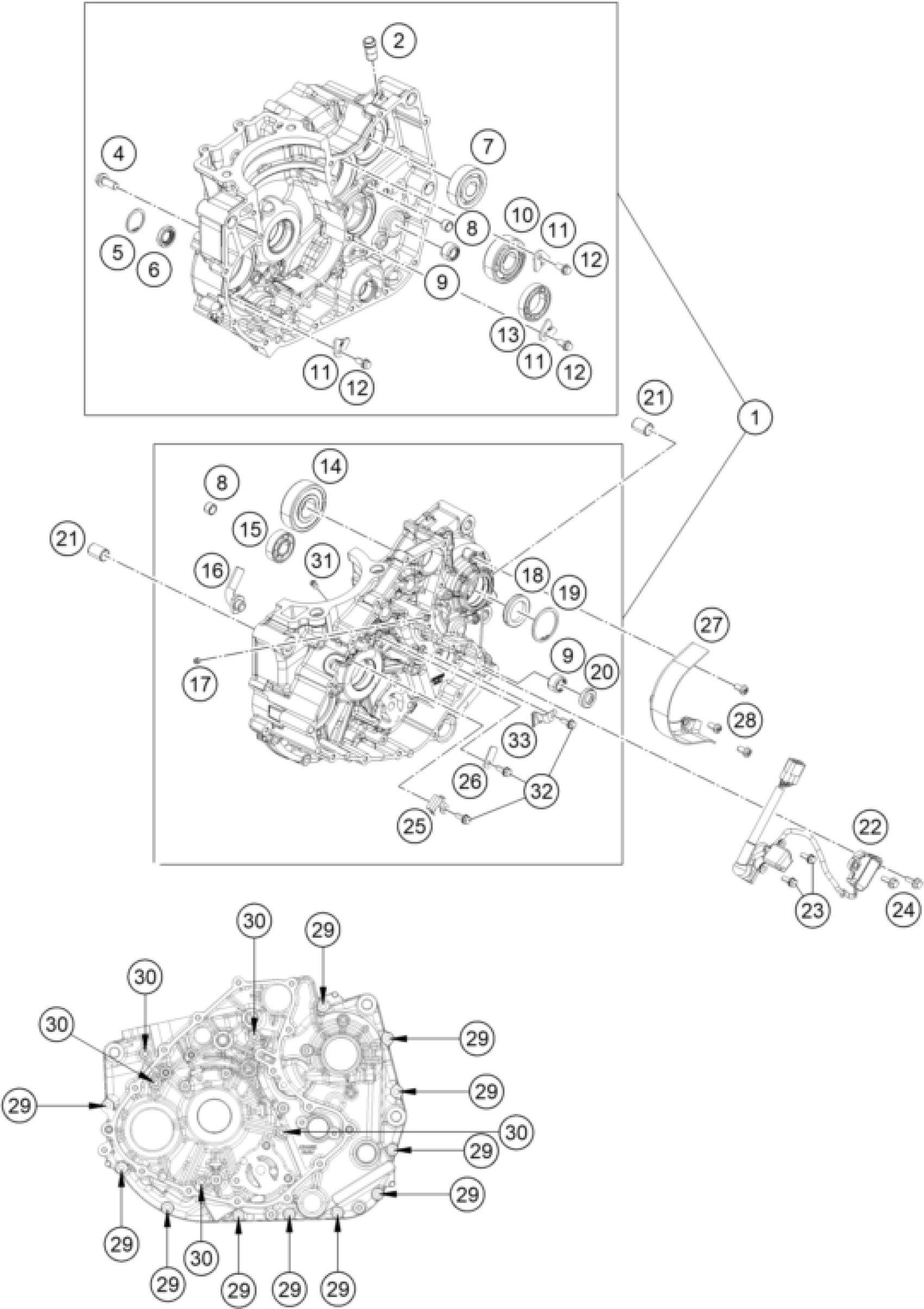

KTM 250 DUKE BL. ABS B.D. 16 <2016> ENGINE CASE Diagram

#

Description

Price

1

ENGINE CASE CPL.

90230000344

$857.29

2

VENTILATION CONNECTOR

90130022000

$3.31

4

FLANGED BOLT M8X20

J011080203S

$1.49

5

CIRCLIP 25X1,2

J472025120

$1.49

6

SHAFT SEALING RING 12X24X5,5

J760122455

$7.75

7

DEEP GROOVE BALL BEARING

90233010001

$14.67

8

BUSH SHIFT RAIL

90234030000

$2.05

9

NEEDLE ROLLER BEARING HK1312

J618131912

$5.23

10

DEEP GROOVE BALL BEARING 6304

J625063040

$13.55

11

STOPPER BALANCER SHAFT BEARING

90230079000

$1.49

12

FLANGED BOLT 6X12

90130078001

$1.49

13

Bearing ball

90130004004

$14.58

14

BALL BEARING 22X56X16-C3L-

J625063320

$31.13

15

BALL BEARING 15X35X11-C3-1

J625062122

$16.35

16

OIL PIPE

90238014000

$7.66

17

OIL NOZZLE

90230066100

$1.49

18

OIL SEAL OUTPUT SHAFT

90230077000

$4.11

19

CIRCLIP 37X1,5

J472037150

$1.49

20

Seal - oil

90130003004

$2.05

21

DOWEL D14

90130003007

$2.05

22

GEAR-POS.SENSOR INC.PULS. COIL

90211023000

$48.24

23

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

24

BOLT FLANGED M5X16 SS

J025050166S

$1.49

25

BRACKET HARNESS

93711022000

$1.49

26

PLATE HARNESS

93711021000

$1.49

27

CHAIN GUARD

90230047000

$6.07

28

SCREW PAN CROSS M6X12 PH SS

J005060123S

$1.49

29

FLANGED BOLT M6X35 WS8

J025060350

$1.49

30

FLANGED BOLT M6X75

J028060753S

$2.05

31

OIL NOZZLE

90230066000

$3.08

33

BRACKET HARNESS GI SENSOR

93711024000

$1.49

32

FLANGED BOLT 6X12

90130078001

$1.49
