- 250 DUKE BL. ABS B.D. 15 <2015
WIRING HARNESS

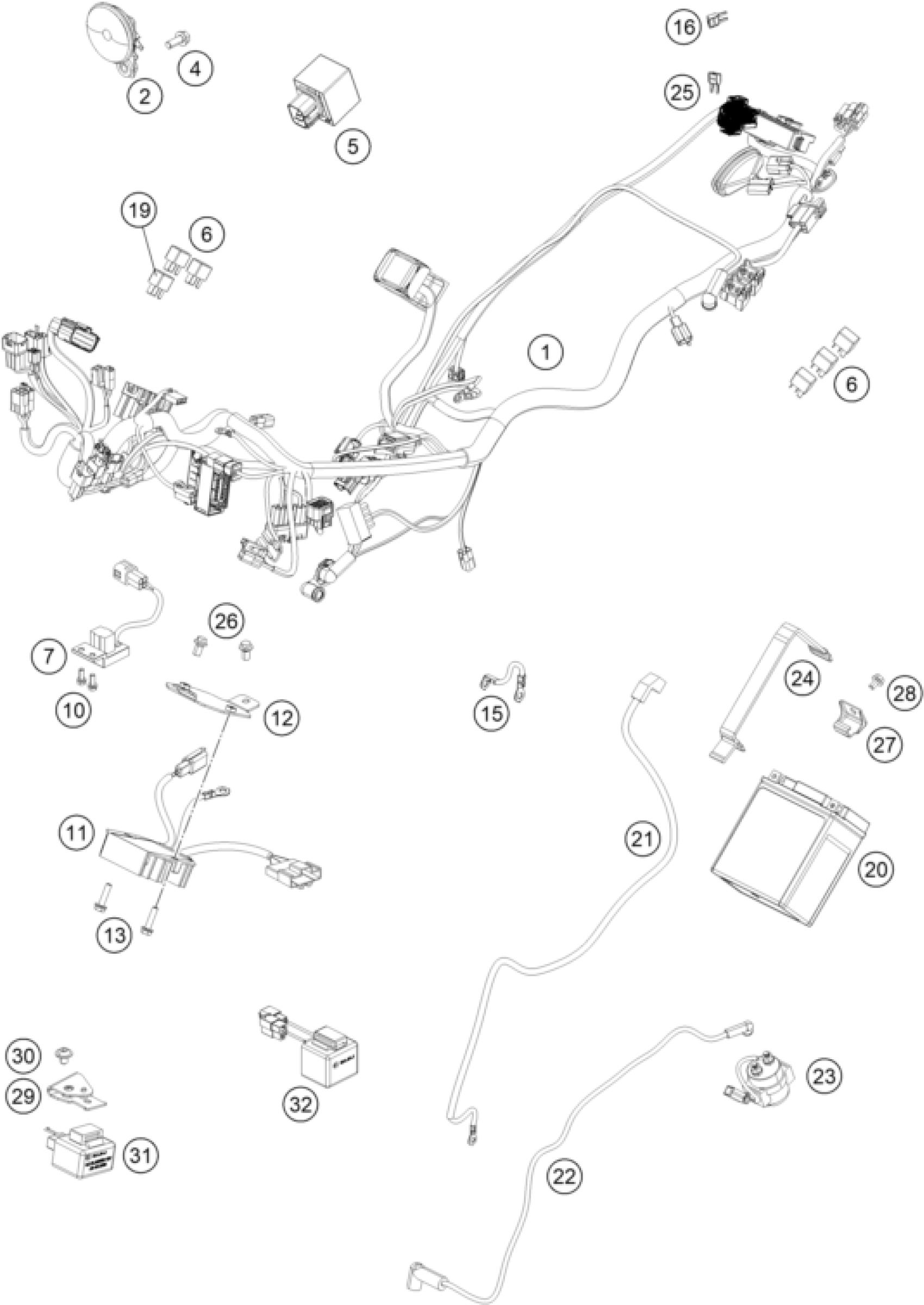

KTM 250 DUKE BL. ABS B.D. 15 <2015 WIRING HARNESS Diagram
#
Description
Price
4
HH COLLAR SCREW M8X12 SW12
J025080123
$1.49
6
relay (interlock)
90611057000
$24.49
7
ROLL OVER SENSOR
90141088000
$31.88
10
HH COLLAR SCREW M5X13 SW8
J011050133
$1.49
11
VOLTAGE REGULATOR
90111034000
$134.26
12
BRACKET REGULATOR MTG
90111134010
$5.23
13
bolt flanged M6X25
J025060253
$1.49
15
earth wire
90211097000
$9.72
16
FUSE 10A 07
75011088010
Unavailable
1
WIRING HARNESS
90111275100
Unavailable
16
FUSE 15A 07
75011088015
Unavailable
16
FUSE MINI 20A
75011088020
Unavailable
16
FUSE 30A
75011088030
Unavailable
19
RELAY (AUX1DIODE)
90611157000
$24.58
20
BATTERY 12V/8AH
90611053000
$137.81
21
EARTH CABLE
90211197000
$11.77
22
CABLE RELAY TO MOTOR
90211059000
$18.50
23
STARTER RELAY
90111058000
$25.80
24
BRACKET RUBBER FOR BATTERY
90111054000
$5.23
26
HH-COLLAR SCREW M6X10 SW8
J025060109
$1.49
27
BRACKET BATTERY MTG
90611054000
$4.11
28
HH COLLAR SCREW M6X10 SW10
J025060103
$1.49
29
HOLDING PLATE FLASHER RELAY
90103001051
$2.05
30
SPECIAL SCREW M6X1X10
90808073000
$1.49
31
indicator relay
90511030000
$29.44
32
CONTROL UNIT HEAD LIGHT
90511021000
$37.20
2
HORN 82 DIA
90111060100
$22.81
5
IGNITION UNIT
90539010000
$48.52
