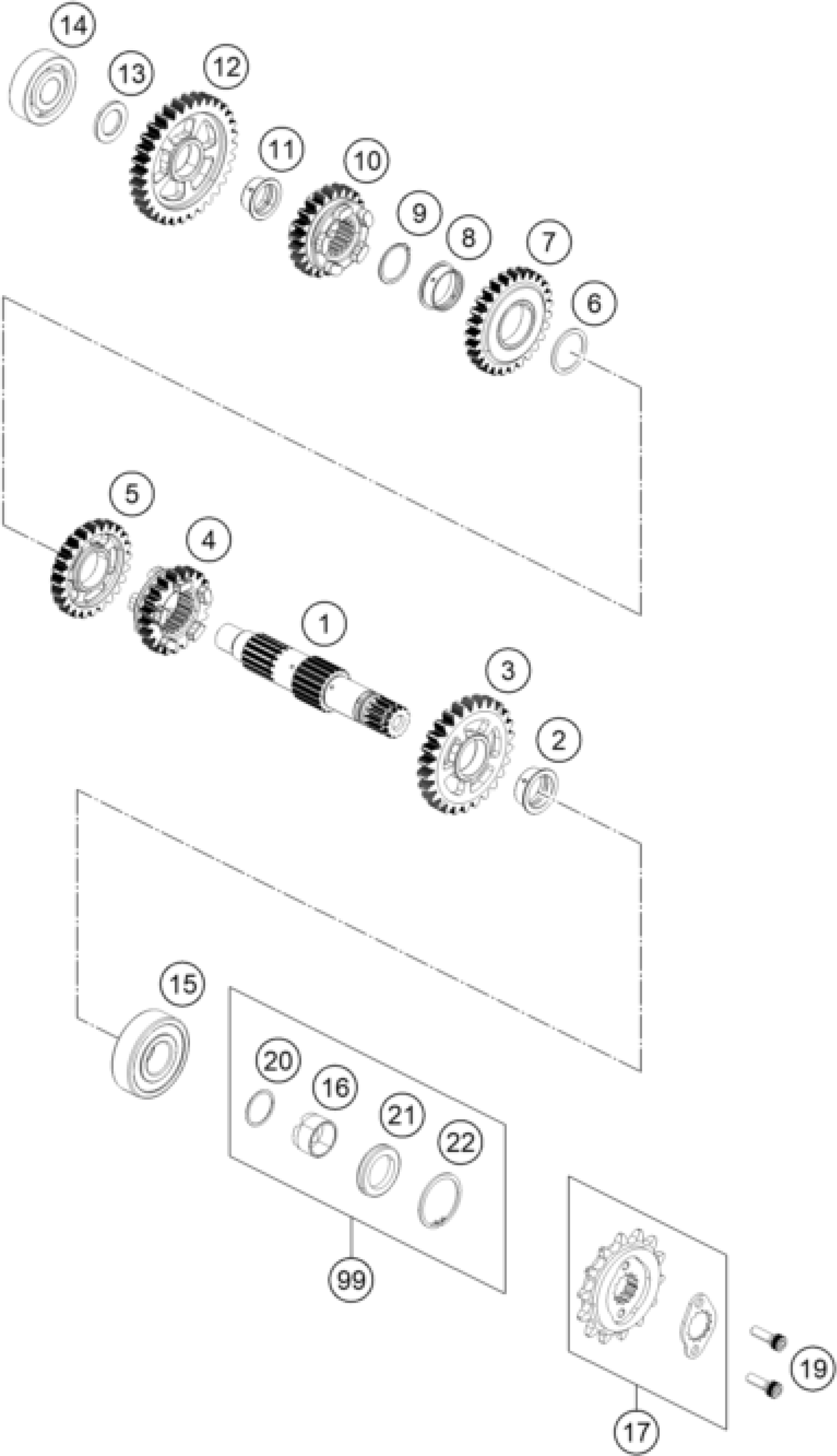

KTM 250 DUKE BL. ABS B.D. 15 <2015 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description

Price

1

COUNTERSHAFT CPL.

90233010010

$192.32

2

COLLAR BUSH

90233012001

$5.23

3

GEAR 2ND DRIVEN

90233012000

$32.63

4

GEAR 6TH DRIVEN

90233016000

$35.90

5

GEAR 4TH DRIVEN

90233014000

$25.98

6

THRUST WASHER

90233037000

$1.49

7

GEAR 3RD DRIVEN

90233013000

$30.47

8

COLLAR BUSH

90233013001

$5.79

9

CIRCLIP 23,5X1,2

J472023120

$1.49

10

GEAR 5TH DRIVEN

90233015000

$34.77

11

COLLAR BUSH

90233011001

$5.23

12

GEAR 1ST DRIVEN

90233011000

$39.64

13

THRUST WASHER

90233038000

$1.49

14

DEEP GROOVE BALL BEARING

90233010001

$14.67

15

BALL BEARING 22X56X16-C3L-

J625063320

$31.13

16

BUSHING SPROCKET

90233030000

$6.44

17

SPROCKET 14T W. LOCKING PLATE

91233029044

Unavailable

19

BOLT M6X10

90110057000

$1.49

20

O-RING 19,5X1,5

J770019515

$2.05

99

SEALING KIT COUNTERSHAFT

90233030044

Unavailable

21

OIL SEAL OUTPUT SHAFT

90230077000

$4.11

22

CIRCLIP 37X1,5

J472037150

$1.49
