- 250 DUKE BL. ABS B.D. 15 <2015
FRONT FORK, TRIPLE CLAMP

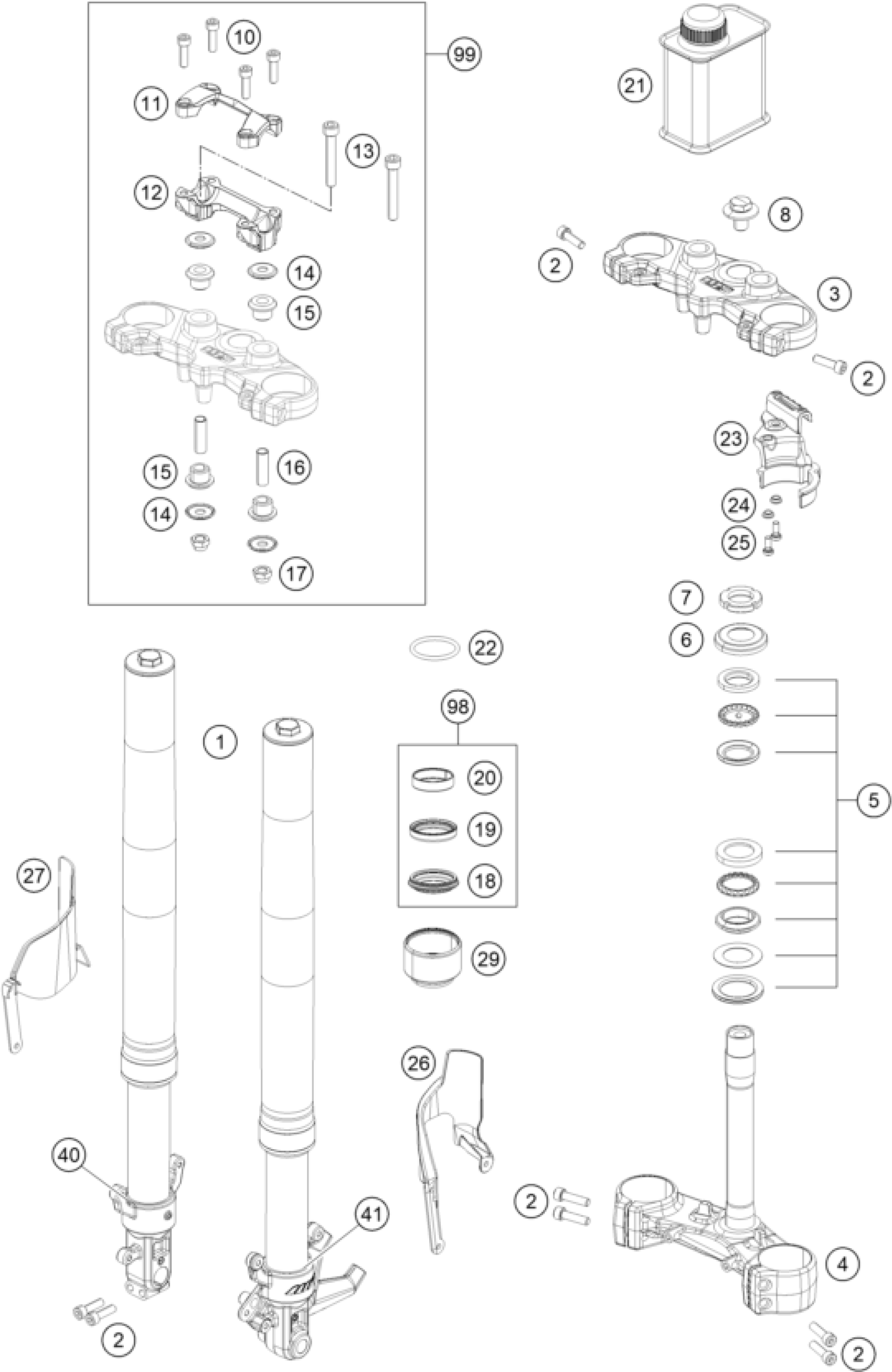

KTM 250 DUKE BL. ABS B.D. 15 <2015 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
19
Shaft seal SKF 43x52,9x11,4 bl
43570623
$16.63
20
Guide bushing 43x47x12
43570618
$11.68
1
FORK LEG L/S CPL.
90201101000
Unavailable
1
FORK LEG R/S CPL.
90201102000
Unavailable
2
BOLT SOCKET M8X1,25X30L
90101031007
$2.05
3
TOP TRIPLE CLAMP
90101034035
$240.38
4
BOT. TRIPLE CLAMP CPL.
90101032100
$310.50
5
STEERING HEAD BEARING-KIT
90101080044
$33.65
6
protection cap
90101086000
$3.08
7
adjusting ring steering head
90101036000
$5.88
8
CLAMP SCREW STEERING HEAD
90101136000
$12.80
10
SPECIAL SCREW M8X29 SS
90101044000
$2.05
11
HANDLEBAR CLAMP
90101038000
$9.15
12
HANDLEBAR SUPPORT D=26MM
90101039000
$13.64
13
AH SCREW M10X1,25X64
J022100643
$3.08
14
WASHER 10,5X32X2
90101042000
$1.49
15
RUBBER BUSHING
90101040000
$2.05
16
SPACER TUBE
90101041000
$4.11
17
SELF L. NUT M10X1,25 H11 WS17
J982101253
$1.49
18
Dirt scarper SKF 43mm black
43570624
$16.73
21
Fork Fluid Viscosity 4.0 5L
48601166S1
$149.59
22
O-ring 43x2 NBR70 siliconized
40140024
$4.11
23
HOSE CLAMP
90113055000
$7.28
24
sleeve for hose clamp
90113055010
$1.49
25
AH SCREW M6X15 10.9
J021060156
$1.49
26
FORK PROTECTION L/S
90101092000
Unavailable
27
FORK PROTECTION R/S
90101093000
Unavailable
40
WHEEL CLAMP CPL. WITH PIPE R/S
90101007044
$289.00
41
AXLE CLAMP CPL. WITH PIPE L/S
90101006144
$351.18
98
REP. KIT FORK KPL.
90101000010
Unavailable
99
HANDLEBAR SUPPORT KIT
90101039010
Unavailable
29
FORK FRONT DUST COVER
90201025000
$4.11
