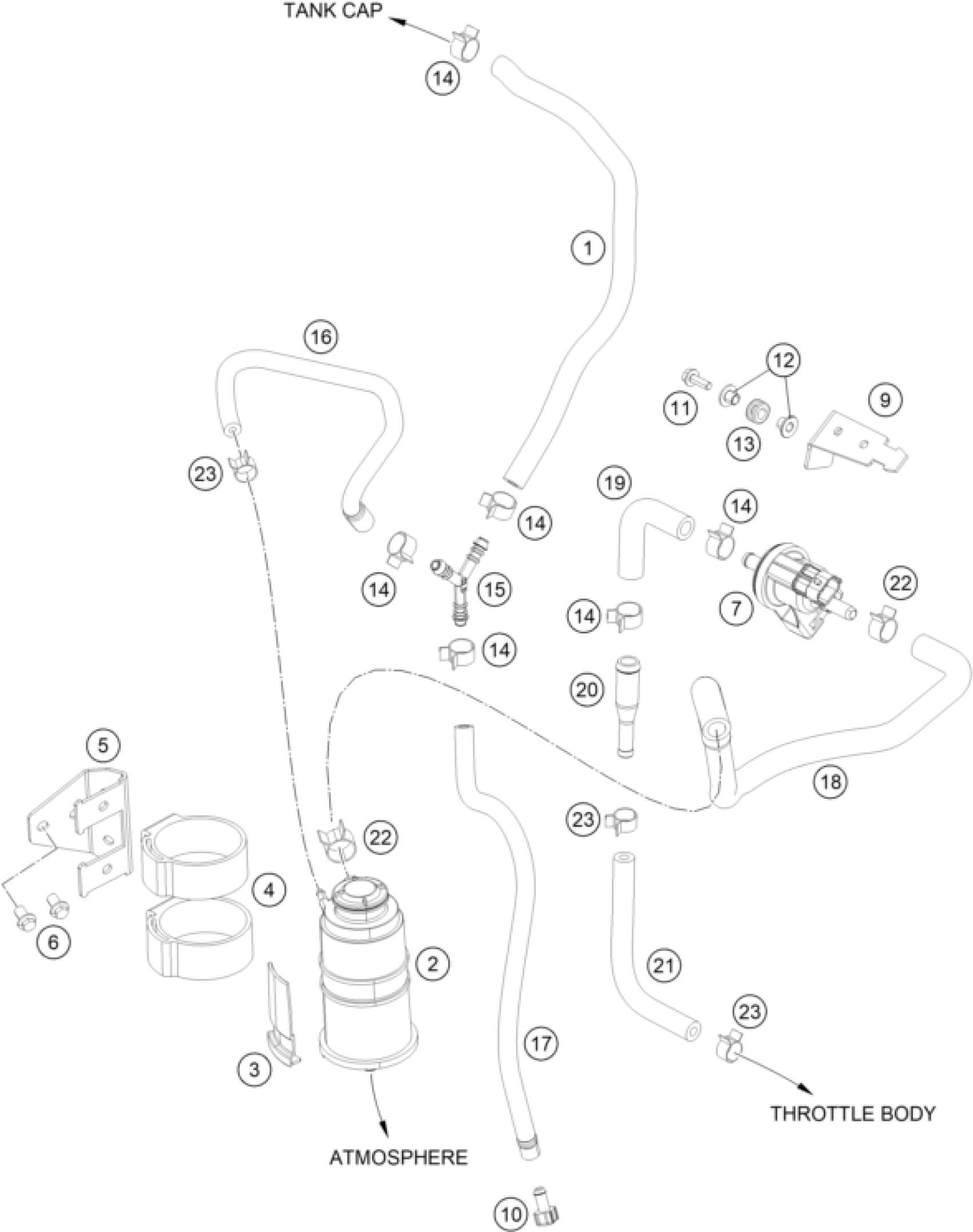

KTM 250 DUKE BL. ABS B.D. 15 <2015> EVAPORATIVE CANISTER Diagram

#

Description

Price

9

BRACKET PURGE VALVE

90203001050

$1.65

10

PLUG FUEL DRAIN

90515011000

$1.49

11

HH COLLAR SCREW M6X18 SW10

J025060183

$1.49

12

COLLAR 8X6X7

90615003000

$1.49

1

HOSE

90607016000

$18.13

2

TANK CANISTER

90207027001

$52.35

3

LOCATOR CAP CANISTER

90203001053

$1.49

4

STRAP CANISTER

90607029001

$2.05

6

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

13

GROMMET 15,5X8X8,1

90615002000

$1.49

7

fuel tank vent valve

90607030000

$71.33

22

SPRING BAND CLAMP 15X10

90607017001

$2.05

23

CLAMP 10MM

90107018011

$2.05

18

HOSE

90207016001

$23.74

19

TUBE PURGE VALVE TO CONNECTOR

90207016002

$4.11

20

CONNECTOR TUBE EVAP

90207016004

$1.49

21

HOSE

90207016003

$5.88

5

BRACKET CANISTER MTG

90203001051

$3.08

16

HOSE

90607016100

$12.05

17

TUBE CONNECTOR TO PLUG

90515023000

$9.15

14

CLAMP D9

90607017002

$1.49

15

CONNECTOR Y SHAPE

90507015000

$3.08
