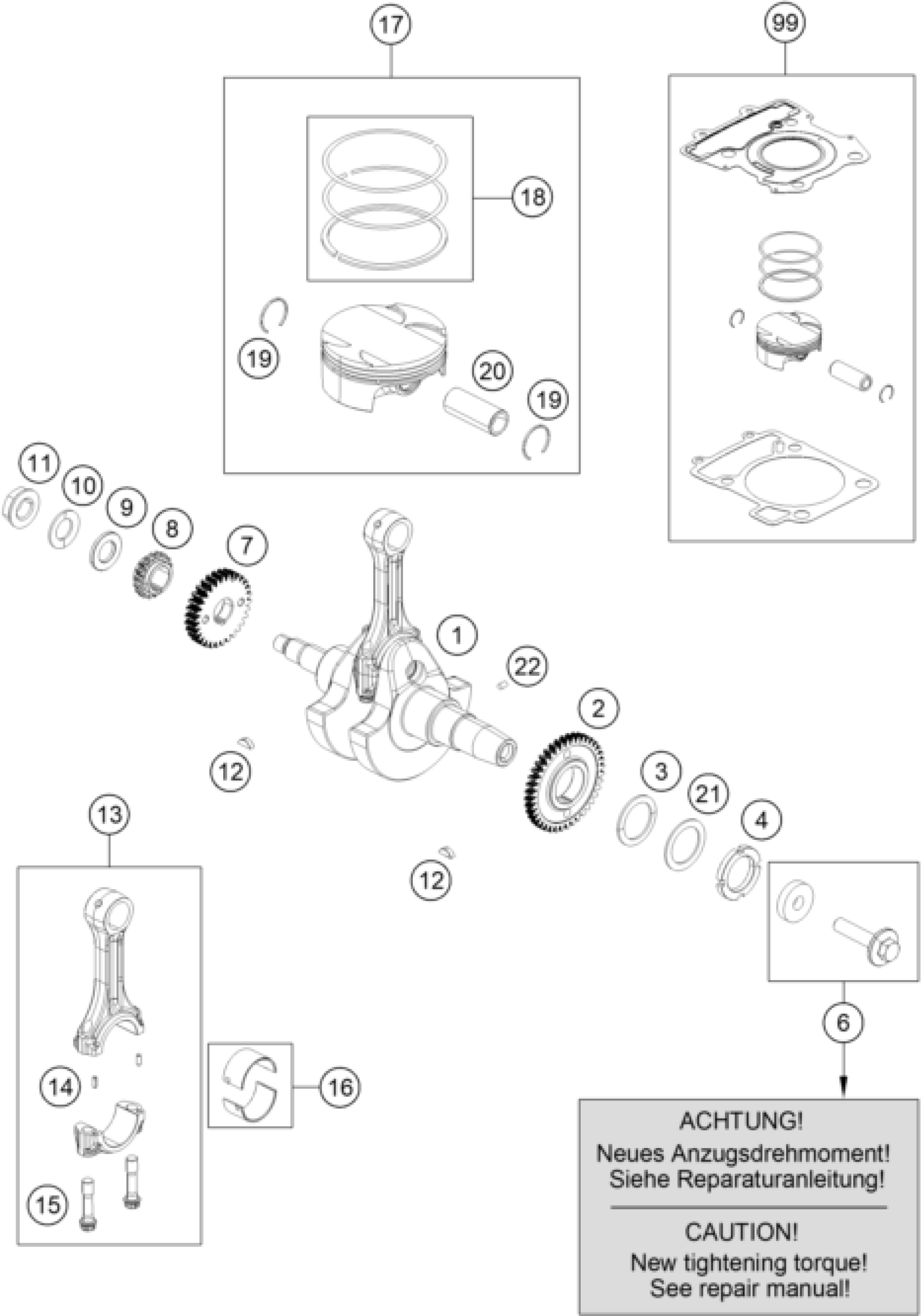

KTM 250 DUKE BL. ABS B.D. 15 <2015> CRANKSHAFT, PISTON Diagram

#

Description

Price

1

CRANKSHAFT CPL.

91230018000

Unavailable

2

GEAR BALANCER DRIVE

90230055000

$30.66

3

CONICAL WASHER 28,35X38X1,75

90230069000

$2.05

4

NUT FOR DRIVE WHEEL AGW

90130018008

$6.35

6

ROTOR SCREW CPL.

90239005050

$5.41

7

PRIMARY GEAR 30T

90232023030

$40.94

8

SPROCKET CRANKSHAFT

90236014000

$11.96

9

WASHER PLAIN

90236015000

$2.05

10

SPECIAL WASHER

90236015001

$1.49

11

NUT M16X1,5

90230029000

$5.23

12

WOODRUFF KEY 4X5X13

J888040050

$2.05

13

CON ROD CPL.

91230015000

Unavailable

14

PARALLEL PIN

90630015002

$2.05

15

CON ROD SCREW

90230015013

$5.23

16

BUSH BIG END

91230014010

Unavailable

17

PISTON CPL.

91230007000

Unavailable

18

PISTON RINGS CPL.

91230030010

Unavailable

19

CIRCLIP

91230033001

Unavailable

20

PISTON PIN

91230033000

Unavailable

21

PLAIN WASHER 28,2X39X1,5

90230068000

$1.49

22

Parallel pin

90134013000

$1.49

99

PISTON KIT 250 RC

91230007010

Unavailable

16

BUSH BIG END (GREEN)

91230014011

Unavailable

16

BUSH BIG END ''BLACK''

91230014012

Unavailable
