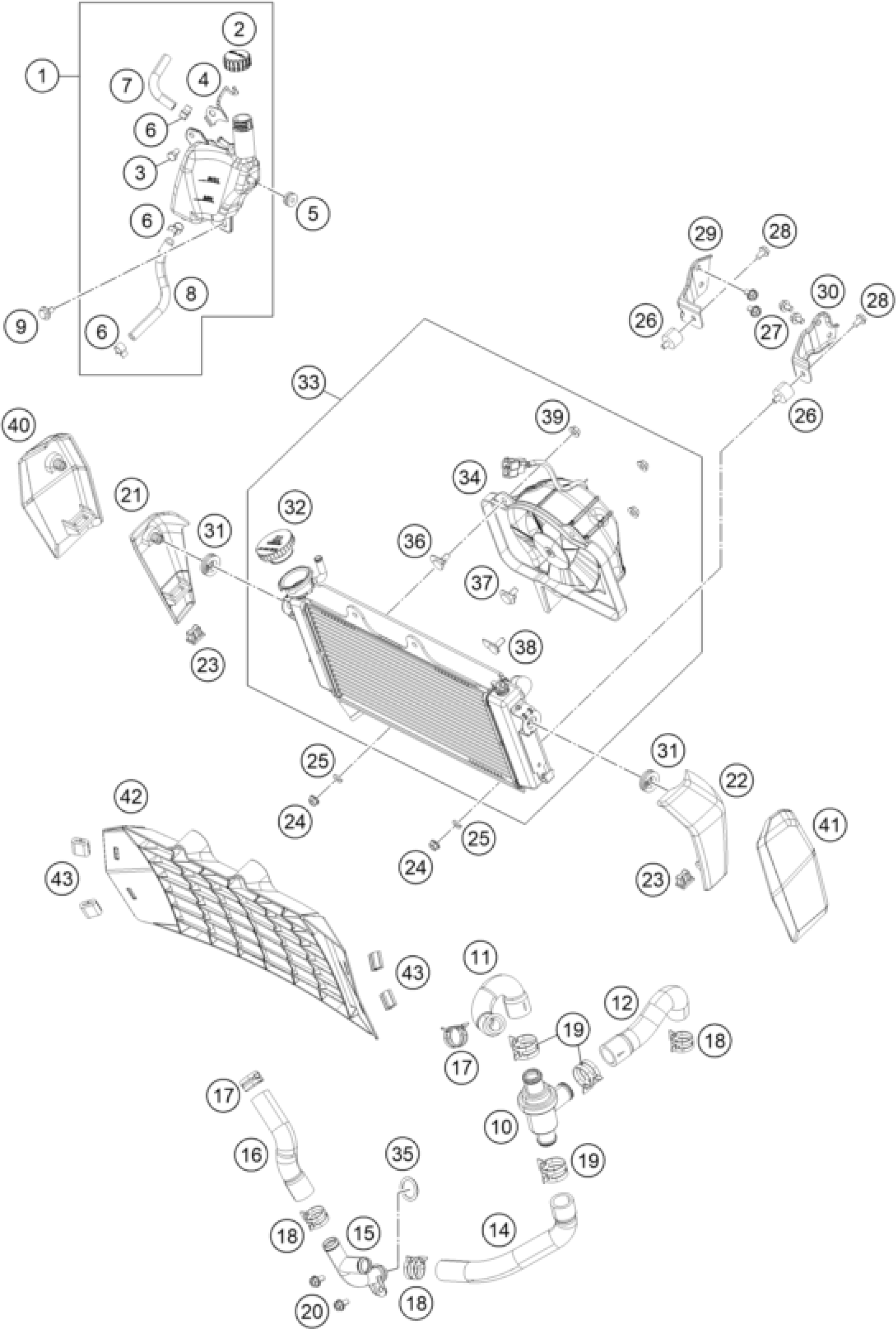

KTM 250 DUKE BL. ABS B.D. 15 <2015> COOLING SYSTEM Diagram

#

Description

Price

31

DAMPING RUBBER I RADIATOR PROT

90108060001

$1.49

32

RADIATOR CAP

90135016100

$17.20

27

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

18

hose clamp D26

90135020001

$3.08

19

HOSE CLAMP D28

90135020003

$3.08

20

COLLAR SCREW M6X12

90135099000

$1.49

21

RADIATOR PROTECTOR R/S

90108061000

Unavailable

22

RADIATOR PROTECTOR L/S

90108060000

Unavailable

23

DAMP. RUBBER II RADIATOR PROT

90108060002

$1.49

24

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

25

WASHER SPRING B6

J127060003

$1.49

26

silentbloc M6

90235001001

$5.23

28

HH COLLAR SCREW M6X8 SW10

J026060083

$1.49

1

EXPANSION RESERVOIR CPL.

90135065033

$26.92

2

PLUG F. EXPANSION TANK

90135066000

$3.08

3

HH COLLAR SCREW M6X12 SW10

J025060126

$1.49

17

hose clamp D24

90135020002

$3.08

29

RADIATOR SUPPORT R/S BELOW

90203006001

$4.11

30

RADIATORSUPPORT L/S BELOW

90203005001

$3.08

33

RADIATOR CPL. WITH FAN

90235010133

$363.80

34

FAN CPL.

90835041033

$168.85

35

O-RING 18,5X3

J770018530

$2.05

36

BRACKET FAN MOUNTING 1

90835041001

$2.05

37

BRACKET FAN MOUNTING 2

90835041002

$2.05

38

BRACKET FAN MOUNTING 3

90835041003

$2.05

39

FLANGED NUT

90835041004

$2.05

40

COVER RADIATOR R/S

90208061000

Unavailable

41

COVER RADIATOR L/S

90208060000

Unavailable

42

COWL RADIATOR

90235040000

Unavailable

4

BRACKET TUBE DRAIN

90103001033

$3.08

5

GROMMET EXPANSION TANK

90135065050

$1.49

6

CLAMP 10MM

90107018011

$2.05

7

HOSE 6X10,5X80 MM

90135067000

$1.49

8

HOSE 6X10X154 MM

90135067050

$2.05

9

SPECIAL SCREW M6X12 FLANGED

90135074000

$2.05

10

THERMOSTAT

90135017000

$33.56

11

HOSE COOLANT THERM. - RADIATOR

90235024020

$8.97

12

HOSE COOLANT ENGINE - THERM.

90235025000

$10.84

14

HOSE COOLANT THERM. TO T-PIPE

90235024010

$13.74

15

COOLING PIPE ''T'' CPL.

90135026000

$31.78

16

pre-formed hose radiator-t-pie

90235024030

$8.41

43

GROMMET RADIATOR COWL

90135032000

$1.49
