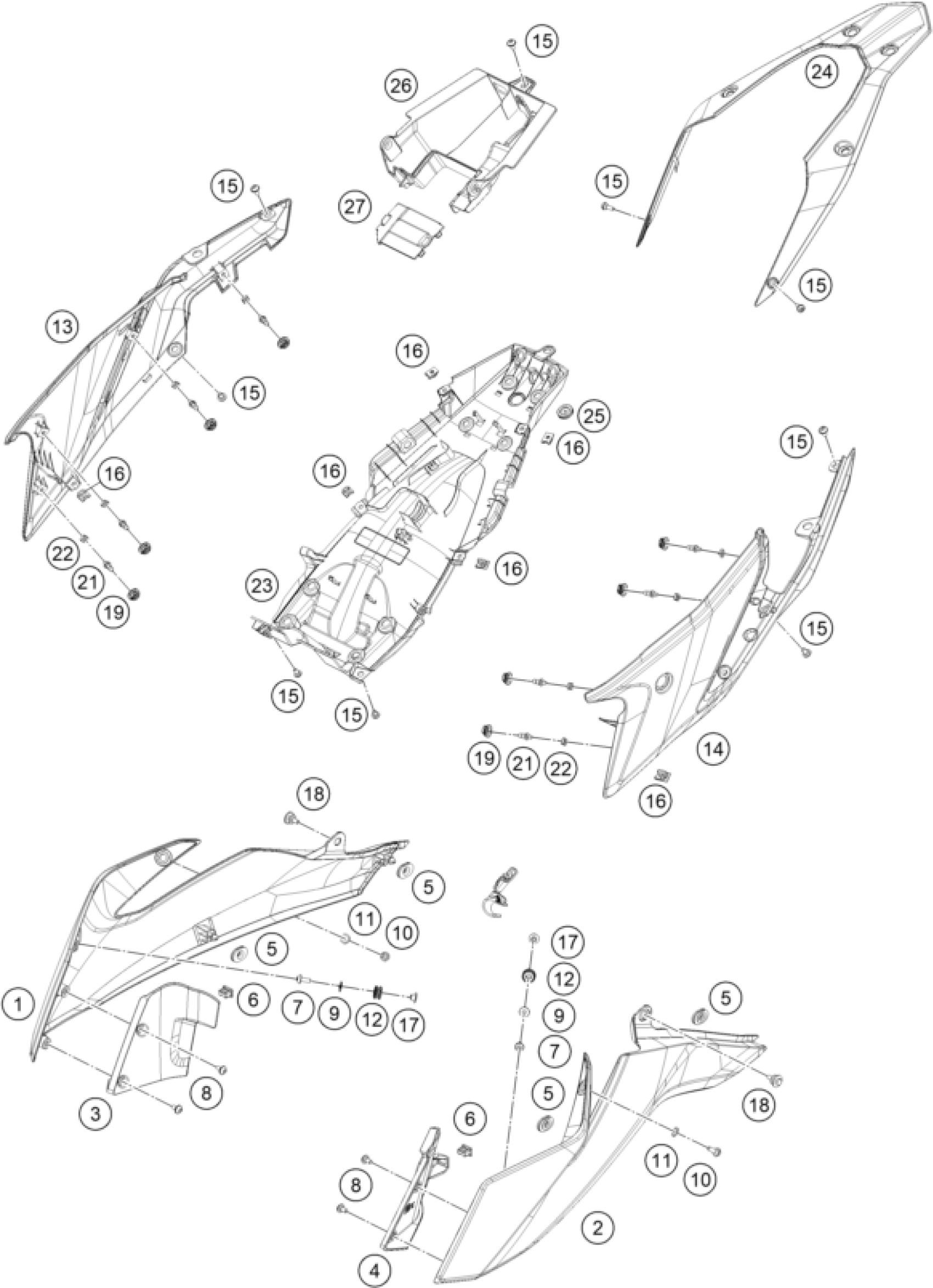

KTM 250 ADVENTURE, grey - B.D. 2024 SIDE TRIM Diagram

#

Description
Price

1

Radiator shroud right

95808051000EBF

Unavailable

2

Radiator shroud, left

95808050000EBF

Unavailable

3

Inner cover, top right

95808025000

$9.44

4

Inside cover left

95808026000

$9.44

5

GROMMET

90108060003

$1.49

6

DAMP. RUBBER II RADIATOR PROT

90108060002

$1.49

7

SPECIAL SCREW M6X1X16

90808043000

$1.49

8

Screw M6X1X13

93008040000

$1.49

9

washer plain id-6.2xod16xthk1x

J125060005

$1.49

10

screw butn hd-m6x1xl 16xblkxst

J031060166

$1.49

11

Washer nylon

93009059000

$1.49

12

Tank bushing

95807013060

$1.49

13

COWL SEAT LOWER RH

95808042000

$31.88

14

rear cover

95808041000

$31.88

15

Screw M6X1X9

93008020060

$2.05

16

Range change metal nut M6

93008084010

$1.49

17

Tank bushing

95807013070

$1.49

18

bolt flange-m6x1xl19xbrightxst

J025060196

$5.23

19

Rubber grommet ignition lock c

93011068010

$1.49

21

Pin quick release

95808041010

$3.08

22

Special nut

95808041020

$1.49

23

rear lower part

95808019000

$73.39

24

Rear fender

95808013000EBB

Unavailable

25

Rubber grommet, wire support s

95808019010

$1.49

26

Rear part inner cover

95808023000

$19.91

27

Starter relay cover

95808023010

$2.05
