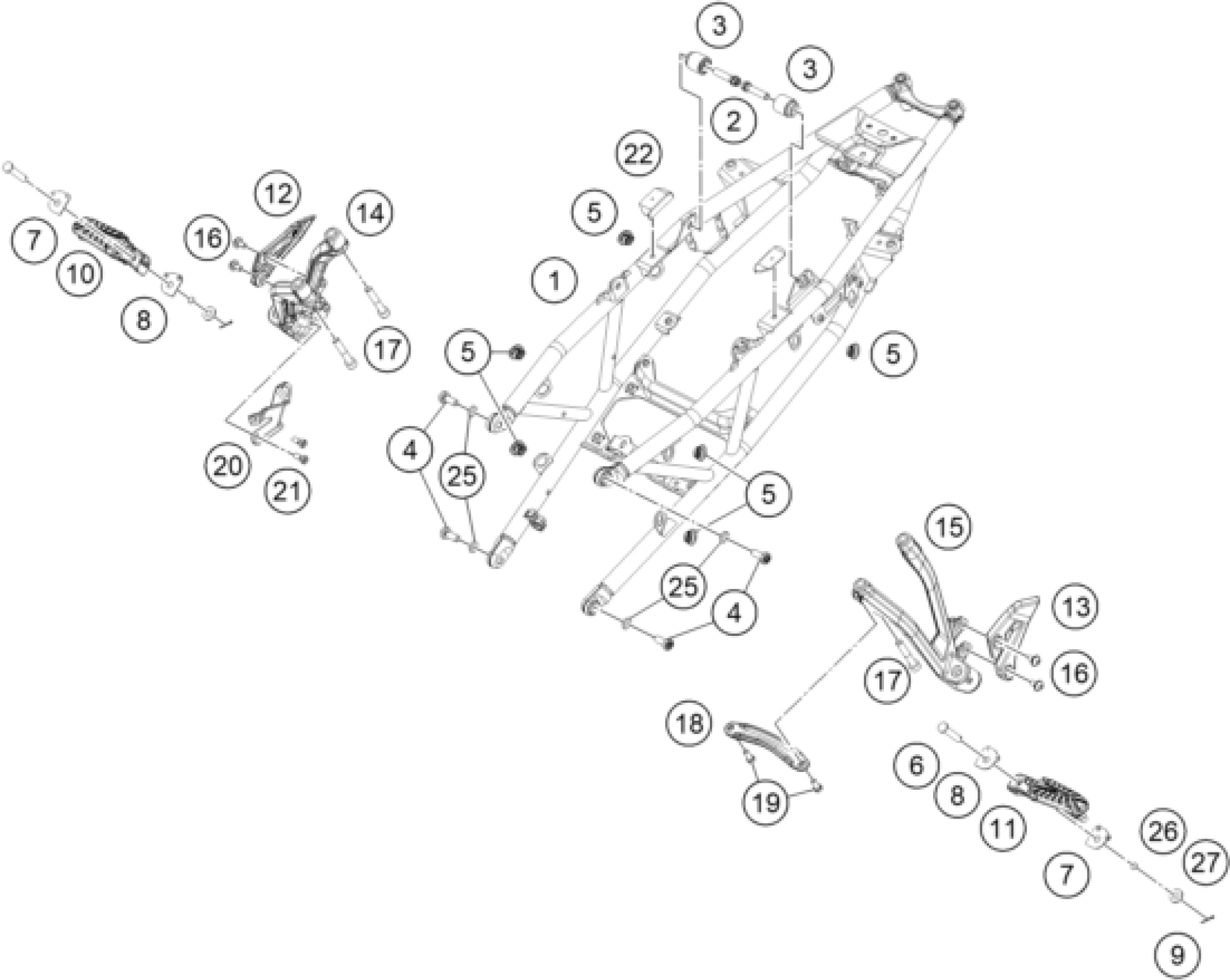

KTM 250 ADVENTURE, blue - B.D. 2024 SUBFRAME Diagram

#

Description
Price

1

Subframe

9580300200056

Unavailable

2

bolt soket-m8x1.25xl35xcl8.8xb

J900000803500

$1.49

3

Seat support complete

93007047033

$5.32

4

Hexagon screw M8X25

J912080251

$2.05

5

Rubber grommet ignition lock c

93011068010

$1.49

6

Pin footrest pivot black

93003054000

$2.05

7

LOCK PLATE UPPER

90503052000

$1.49

8

LOCK PLATE LOWER

90503053000

$1.49

9

PIN COTTER DIA 2.3

J730000301800

Unavailable

10

Rear footpeg cmpl. right

93003151033

$21.87

11

Rear footpeg cmpl. left

93003150033

$21.87

12

Heel protector, rear right

95805089000

$3.08

13

Heel protector, rear left

95805088000

$3.08

14

ADV250STEP PILLION RHJG113109

95703049000C1

Unavailable

15

ADV250STEP PILLION LHJG113108

95703048000C1

Unavailable

16

Screw M6X1X9

93008020060

$2.05

17

Cap head bolt ISO 4762-M8x40-1

J047620804000S

$2.05

18

Reinforcement footrest carrier

95803056000

$4.11

19

bolt socket m6x1

J900000602000

Unavailable

20

Silencer retaining bracket cmp

95805084000

$4.11

21

BOLT SOCKET M6X1X14

90511006100

$1.49

22

Protection cap

95803002070

$1.49

25

washer plain-id8.2xod15xt2xbla

J690000801500

$1.49

26

O-RING 9X1,5

J770009015

$1.49

27

WASHER M8

J125080005

$1.49
