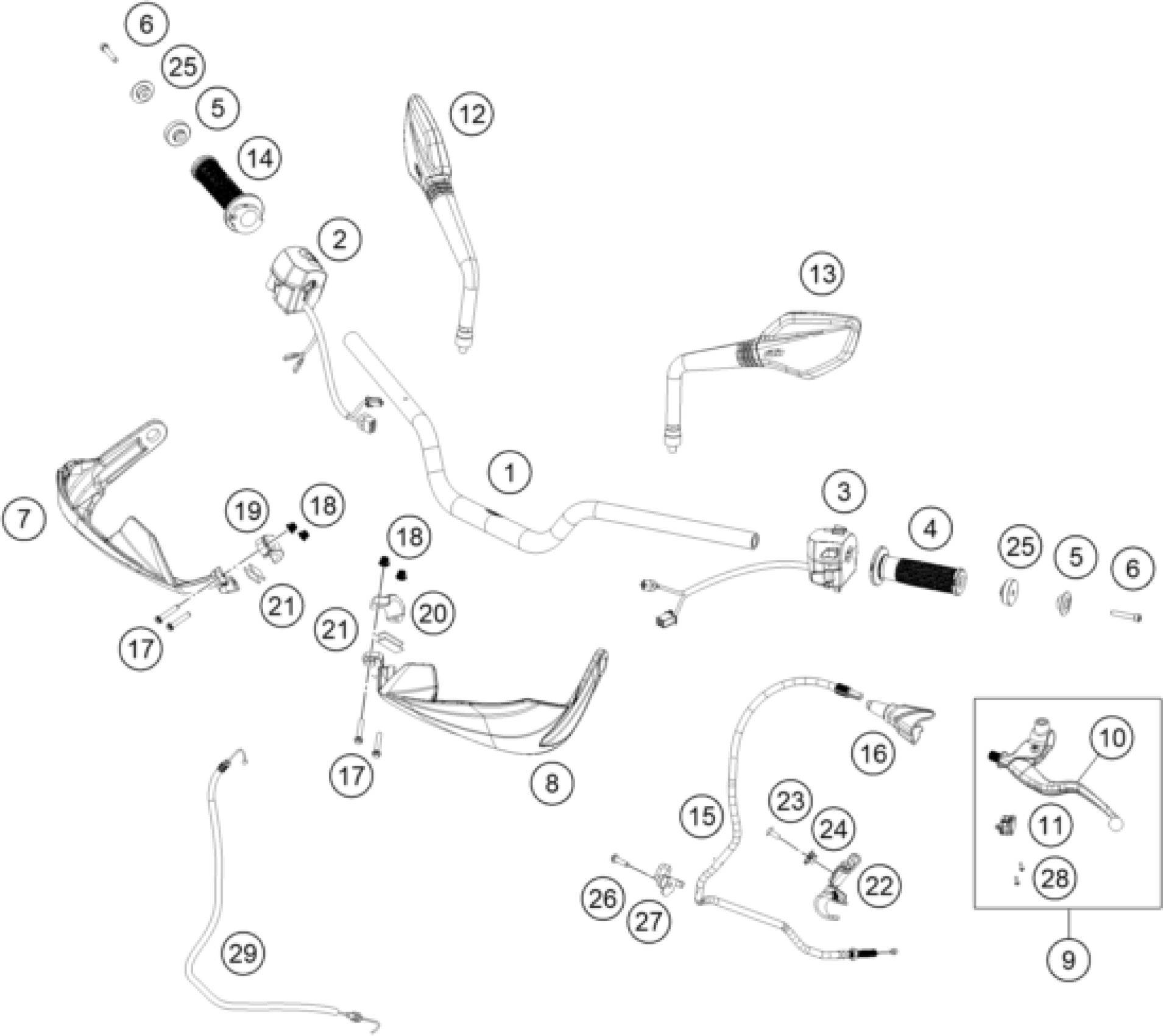

KTM 250 ADVENTURE, blue - B.D. 2024 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

Handlebars

95702001000

Unavailable

2

Throttle cmpl.

95702010044

Unavailable

3

Light switch

95711070000

Unavailable

4

HAND GRIP L/S

90802039000

$5.70

5

COLLAR

95802080052

$4.11

6

Hexagon socket screw, M6x35

J900000603500

$1.49

7

Handguard right

95802081000AB

Unavailable

8

Handguard left

95802080000AB

Unavailable

9

Clutch assembly cmpl.

28302031033

$63.10

10

Clutch lever - NON Adjustable

93002031000

$5.23

11

Clutch switch

90111149000

$23.46

12

Mirror right

93012041000

$28.04

13

Mirror left

93012040000

$28.04

14

THROTTLE GRIP CPL.

91202010044

$8.41

15

Clutch cable wire

95702090000

Unavailable

16

PROTECTION CAP THROTTLE CABLE

90102016000

$2.05

17

bolt

J025060304

Unavailable

18

Nut nyloc flanged M6X1XHT.9.1

90508016001

$1.49

19

Clamp, handguard, right

95802081010

$2.05

20

Clamp, handguard, left

95802080010

$2.05

21

Cellular rubber band 15x35 mm

95802080020

$1.49

22

Guide clutch cable

95832060050

$3.08

23

Roundhead screw M4X12

J031050121

$1.49

24

CLIP NUT M5

90108050001

$2.05

25

Collar

95802080051

$3.08

26

Hexagon screw M8X25

J912080251

$2.05

27

Clutch cable guide

95803001086

$3.08

28

Screw pan cross M3x0.5

90232014002

$1.49

29

THROTTLE CABLE

90102091000

$19.63
