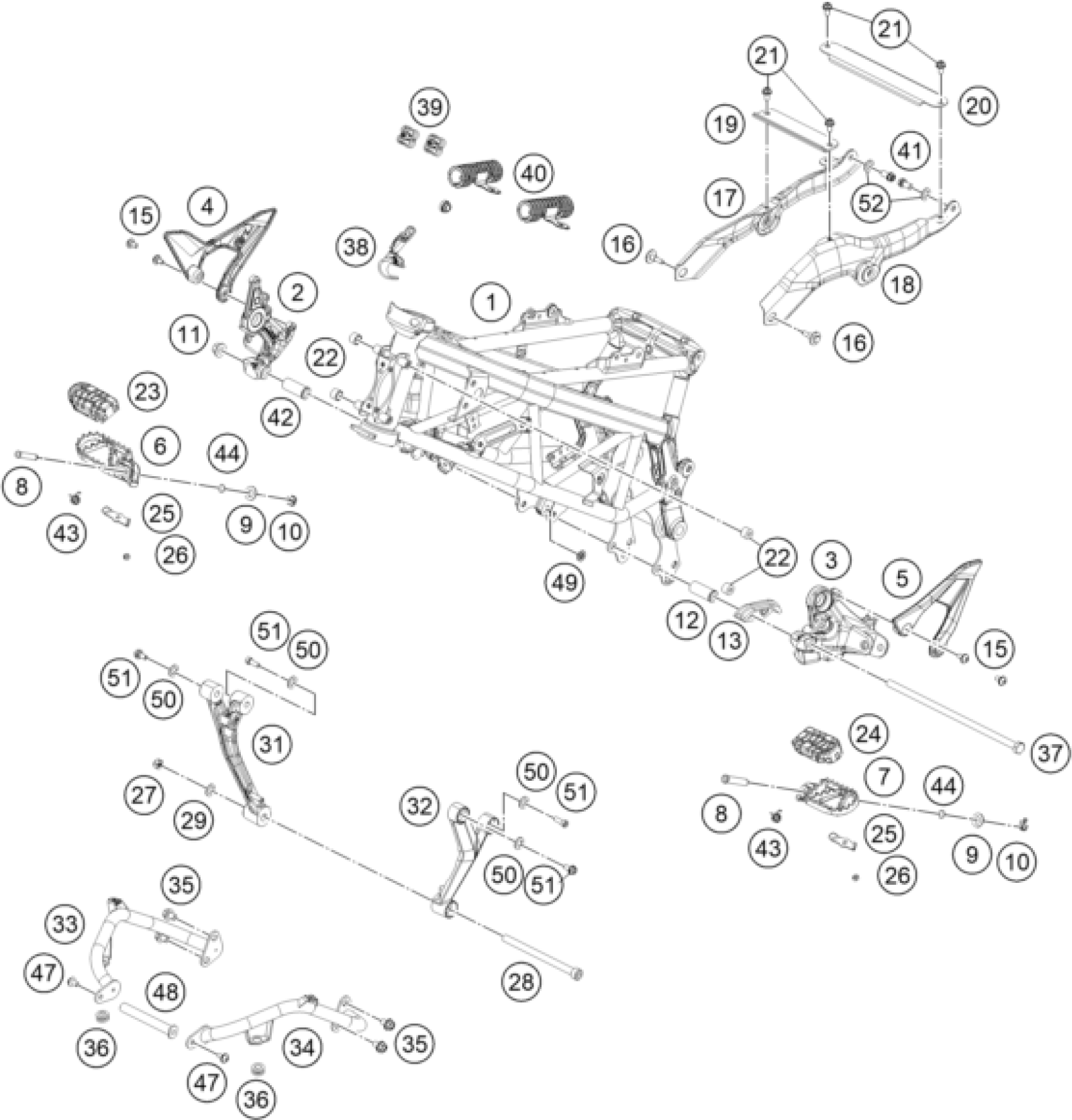

KTM 250 ADVENTURE, blue - B.D. 2024 FRAME Diagram

#

Description
Price

1

Frame

9580300100056

Unavailable

2

ADV250HOLDER STEPRH JG113107 M

95703039000C1

Unavailable

3

ADV250HOLDER STEPLH JG113106 M

95703038000C1

Unavailable

4

Front heel protector right

95803139050

Unavailable

5

Front heel protector left

95803138040

Unavailable

6

Footpeg, front right, cmpl.

95803041133

Unavailable

7

Footpeg tread, front left

95803040050

Unavailable

8

Pin 8x47

J920000804700

Unavailable

9

WASHER M8

J125080005

Unavailable

10

pin cotter-dia. 2.5xl 18

J094020186

Unavailable

11

FLANGED NUT M10X1.25 WS14

90103038002

Unavailable

12

Spacer

95803038010

Unavailable

13

Chain sliding guard

95804070000

Unavailable

15

Screw M6X1X9

93008020060

Unavailable

16

Hex collar screw. M8x23.5

J025080246

Unavailable

17

seat support side panel right

95803001072

Unavailable

18

seat support side panel left c

95803001071

Unavailable

19

seat support cross connection

95803001081

Unavailable

20

seat support cross connection

95803001082

Unavailable

21

Hex collar screw M6X12

J025060122

Unavailable

22

Bushing

95803001088

Unavailable

23

Damper, front right

95803040010

Unavailable

24

Damper, front left

95803041010

Unavailable

25

Retaining bracket, damper

95803044010

Unavailable

26

NUT - NYLOC :- M5 X 0.8

J910000500600

Unavailable

27

NUT HEX FLANGED

J910001001000

Unavailable

28

BOLT SOCKET M10X1.25

J900001013500

Unavailable

29

Washer M10

J125100009

Unavailable

31

ENGINE HANGER RH (JP113403) BL

94503006000C1

Unavailable

32

ENGINE HANGER LH (JP113402) BL

93303005000C11

Unavailable

33

Mask support pipe, right

95808005000

Unavailable

34

Mask support left

95808006000

Unavailable

35

screw button head-m8x1.25xl14x

J031080146

Unavailable

36

Rubber bushing

93014017000

Unavailable

37

HH COLLAR SCREW M10X1,25X265

J025102656

Unavailable

38

Guide clutch cable

95832060050

Unavailable

39

Hose guide

95813046000

Unavailable

40

Tank support rubber

95807012000

Unavailable

41

Bolt Socket Head M8

90103007000

Unavailable

42

Distance sleeve

95803039010

Unavailable

43

footrest return spring

90103042000

Unavailable

44

O-RING 9X1,5

J770009015

Unavailable

47

SPECIAL SCREW M6X1X16

90808043000

Unavailable

48

Wheel spindle mask support

95814010040

Unavailable

49

Clip

90108023100

Unavailable

50

Washer M8

J125080006

Unavailable

51

Hexagon screw M8X25

J912080251

Unavailable

52

Washer, M8

J125100002

Unavailable
