Description

Price

1

Muffler

95805083000

Unavailable

2

ASSEMBLY PREMUFFLER

28105050044

$369.13

3

PIPE ASSEMBLY A

94305007031

$1,039.71

4

clip nut

90103097000

$4.11

5

muffler mounting spacer bushin

90205086001

$2.05

6

damper, bottom

90205068000

$2.05

7

BOLT SILENCER MTG

90105000002

$1.49

8

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

9

muffler mounting tube

90105084000

$4.11

10

damper, bottom

90105068100

$1.49

11

Hex collar nut M6

J926080003

$1.49

12

Exhaust clamp

94305051000

$14.30

13

Exhaust pipe clamp

95805051010

$11.87

14

Exhaust flange gasket, muffler

94305050071

$8.31

15

GASKET EXHAUST

94305050172

$6.82

16

Oxygen sensor

94341090000

$100.69

17

Lens head screw M6X10

J031060103

$1.49

18

Heat protection, rear

95805090033

$27.95

19

GROMMET MUFFLER SHIELD

93805011003

$1.49

20

BOLT FLANGED M8X35

J025080353

$1.49

21

GASKET EXHAUST

90105004100

$5.98

22

BUSH MUFFLER

93805095000

$4.11

23

DAMPER MUFFLER

93805096000

$1.49

24

nut hex flange-M8x1.25xcl8xdac

J692080006

$1.49

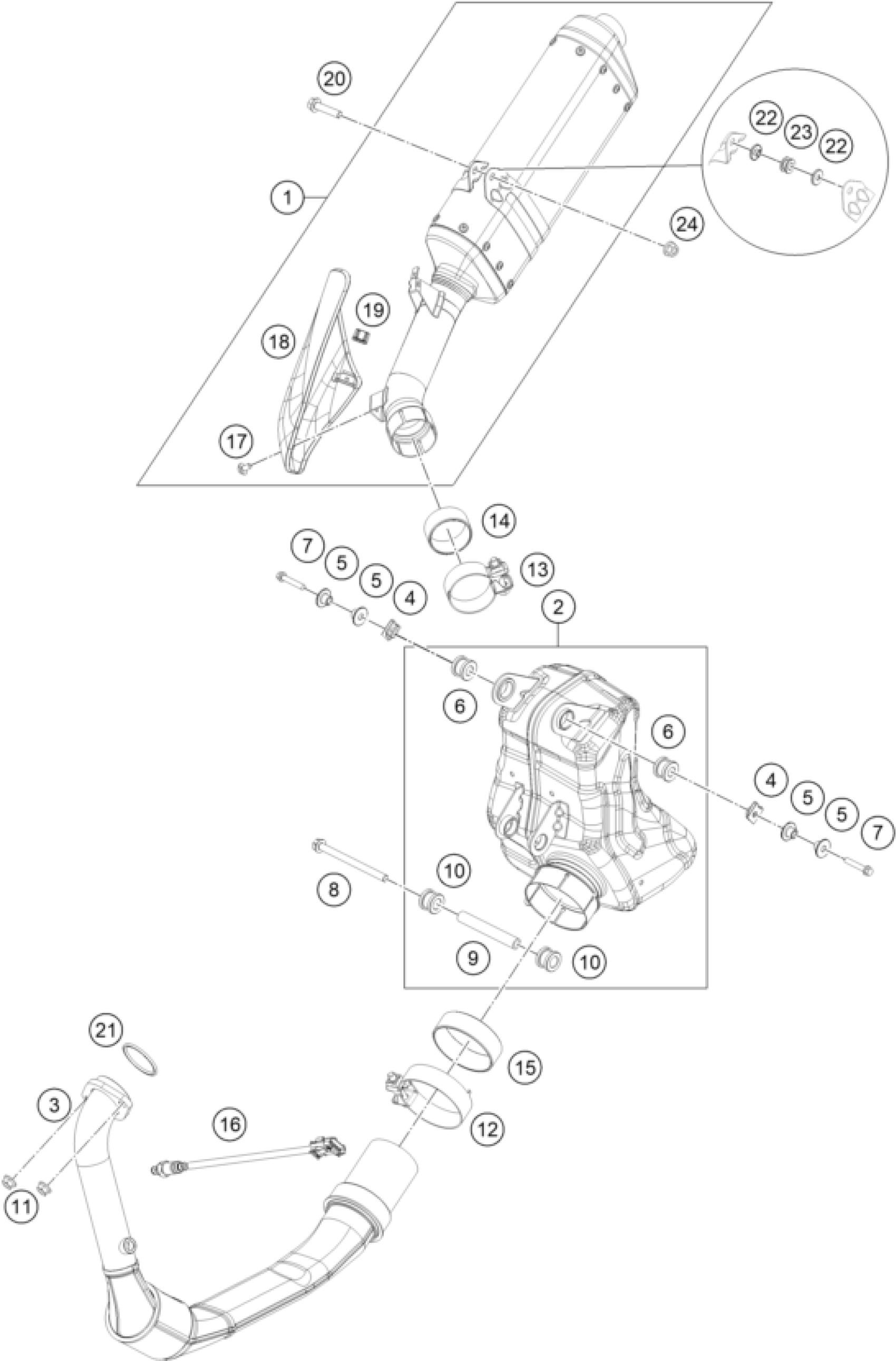

KTM 250 ADVENTURE, blue - B.D. 2024 EXHAUST SYSTEM Diagram

Muffler

ASSEMBLY PREMUFFLER

PIPE ASSEMBLY A

clip nut

muffler mounting spacer bushin

damper, bottom

BOLT SILENCER MTG

HH COLLAR SCREW M8X105 SW12

muffler mounting tube

damper, bottom

Hex collar nut M6

Exhaust clamp

Exhaust pipe clamp

Exhaust flange gasket, muffler

GASKET EXHAUST

Oxygen sensor

Lens head screw M6X10

Heat protection, rear

GROMMET MUFFLER SHIELD

BOLT FLANGED M8X35

GASKET EXHAUST

BUSH MUFFLER

DAMPER MUFFLER

nut hex flange-M8x1.25xcl8xdac
