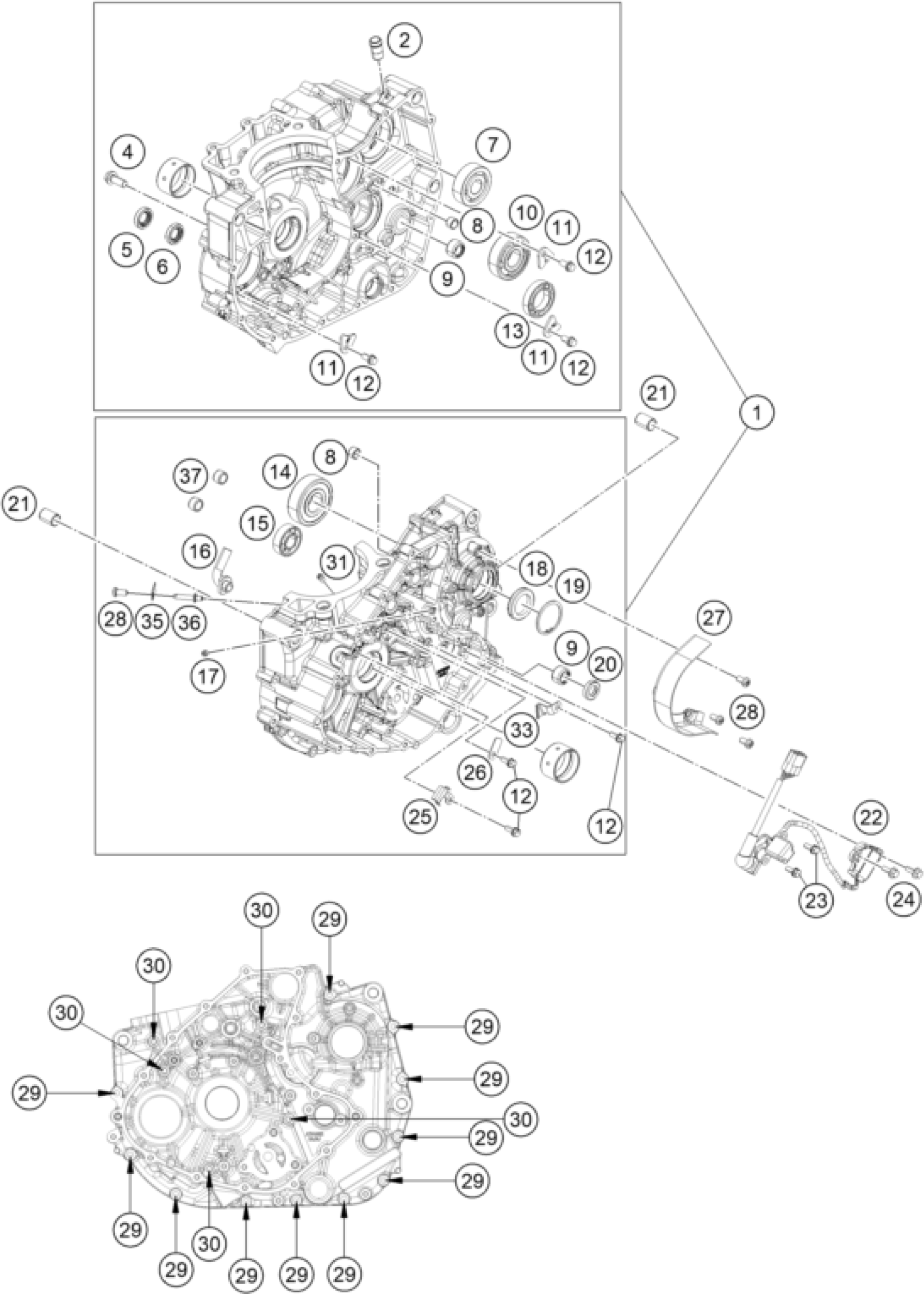

KTM 250 ADVENTURE, blue - B.D. 2024 ENGINE CASE Diagram

#

Description
Price

1

KIT CRCASE ANTHRABLK ADVDUK MY

93830000044

$824.01

2

Pipe breather

90230022000

$3.08

4

FLANGED BOLT M8X20

J011080203S

$1.49

5

SHAFT SEALING RING 12X24X5,5

J760122455

$7.75

6

Shaft seal ring 12x24x6

0760122406

$5.60

7

DEEP GROOVE BALL BEARING

90233010001

$14.67

8

BUSH SHIFT RAIL

90234030000

$2.05

9

NEEDLE ROLLER BEARING HK1312

J618131912

$5.23

10

DEEP GROOVE BALL BEARING 6304

J625063040

$13.55

11

STOPPER BALANCER SHAFT BEARING

90230079000

$1.49

12

Hex collar screw, M6x12

J01665060123S

$11.68

13

Bearing ball

90130004004

$14.58

14

BALL BEARING 22X56X16-C3L-

J625063320

$31.13

15

BALL BEARING 15X35X11-C3-1

J625062122

$16.35

16

OIL PIPE

90238014000

$7.66

17

OIL NOZZLE

90230066100

$1.49

18

OIL SEAL OUTPUT SHAFT

90230077000

$4.11

19

Lock ring for hubs 37x1.5

J710003715000

Unavailable

20

Seal - oil

90130003004

$2.05

21

DOWEL D14

90130003007

$2.05

22

sensor assembly pick up

93811023100

$104.90

23

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

24

FLANGED BOLT M5X16

J025050163S

$1.49

25

BRACKET HARNESS

93711022000

$1.49

26

PLATE HARNESS

93711021000

$1.49

27

CHAIN GUARD

90230047000

$6.07

28

SCREW PAN CROSS M6X12 PH SS

J005060123S

$1.49

29

Hex collar screw M6X35

J025060353

$1.49

30

FLANGED BOLT M6X75

J028060753S

$2.05

31

OIL NOZZLE

90130164000

$27.57

33

BRACKET HARNESS GI SENSOR

93711024000

$1.49

35

Bracket

93830066000

$1.49

36

Nozzle

93830064000

$4.11

37

BUSH STARTER SHAFT

90240018000

$4.11
