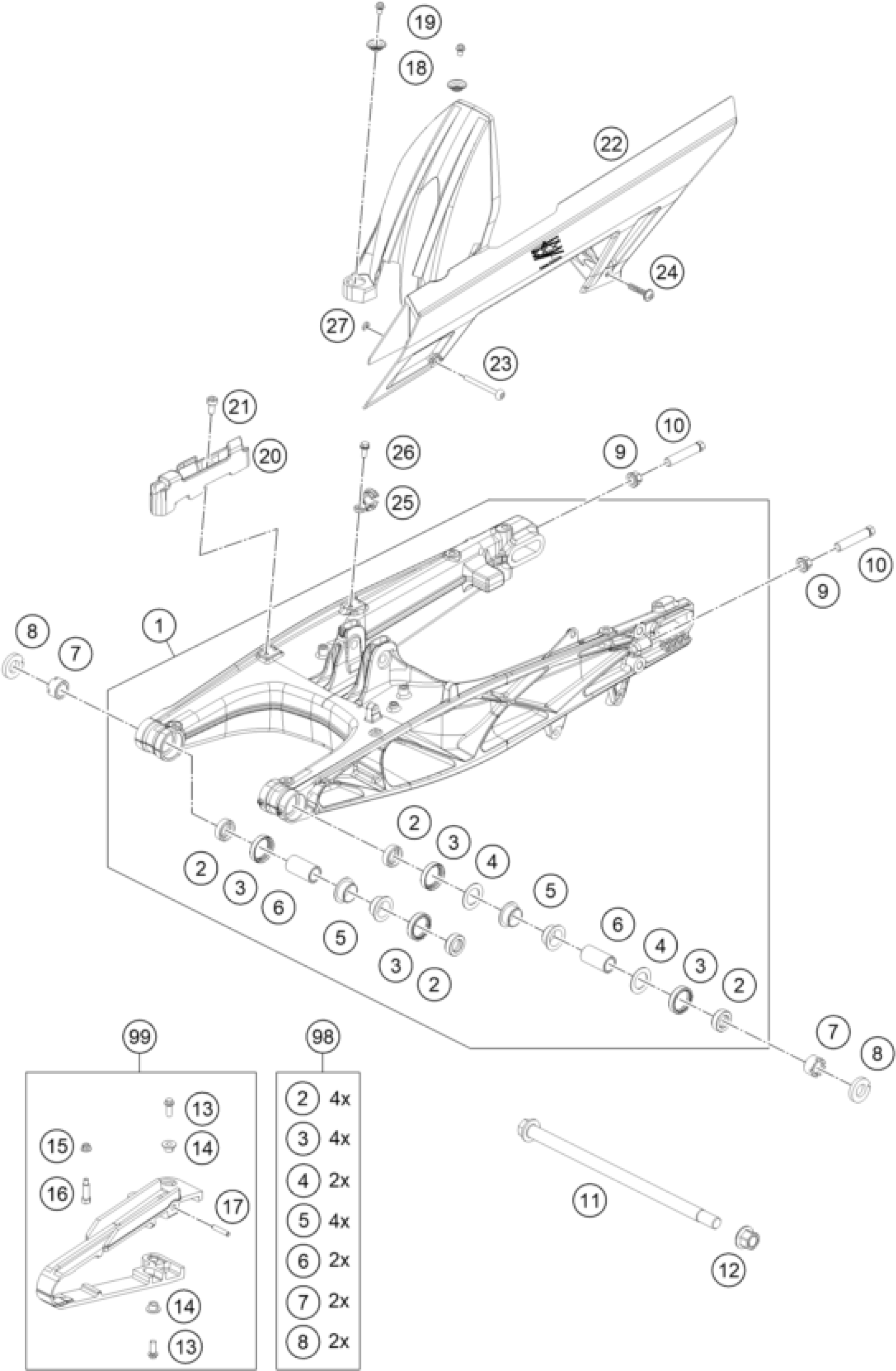

KTM 250 ADVENTURE, blue - B.D. 2023 SWING ARM Diagram

#

Description
Price

1

ADV 390 SWING ARM ASSLY

95804030044

$437.01

2

cup for radial shaft seal

90104034000

$4.11

3

OIL SEAL RING 25X32X7

90104034001

$3.08

4

Thrust washer 22.2x31.7x1

90104036000

$1.49

5

Igus plain bearing

90104031000

$5.23

6

sleeve bushing 15.1x20x38

90104032000

$6.63

7

swingarm adjusting ring

90104046000

$5.88

8

Special wahser

93004042000

$2.05

9

flanged hex nut M10x1.25 WS13

90104010002

$2.05

10

BOLT HEX M10X1.25X50 WS10

90104040000

$5.23

11

Shaft swing arm L=299mm

90104037000

$17.76

12

FLANGED NUT M14X1.5

90104038000

$3.08

13

HH COLLAR SCREW M6X16 SW8

J025060169

$1.49

14

chain slider bushing

90604062000

$1.49

15

Hex collar nut, M5

J06923050053

$1.49

16

screw M5x0.8x30

90104040100

$1.49

17

SLEEVE CHAIN GUARD

90904070020

$2.05

18

Supporting shell

93004051000

$1.49

19

Hex collar screw M6X8

J025060081

$1.49

20

clamp hose

94513047000

$1.58

21

bolt soket-m5x0.8xl10xcl10.9xb

J912050102

$1.49

22

Chain cover

93004060100

$27.48

23

hexagon socket screw M5X0.8X55

93004065000

$1.49

24

Plastic screw 6x30

93004064000

$1.49

25

clamp hose

94513047010

$1.49

26

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

27

WASHER CHAIN SLIDING GUARD

90504067000

$1.49

98

SWINGARM REP. KIT 11-17

90104230010

Unavailable

99

CHAIN GUARD KIT 250/390

90104066210

Unavailable
