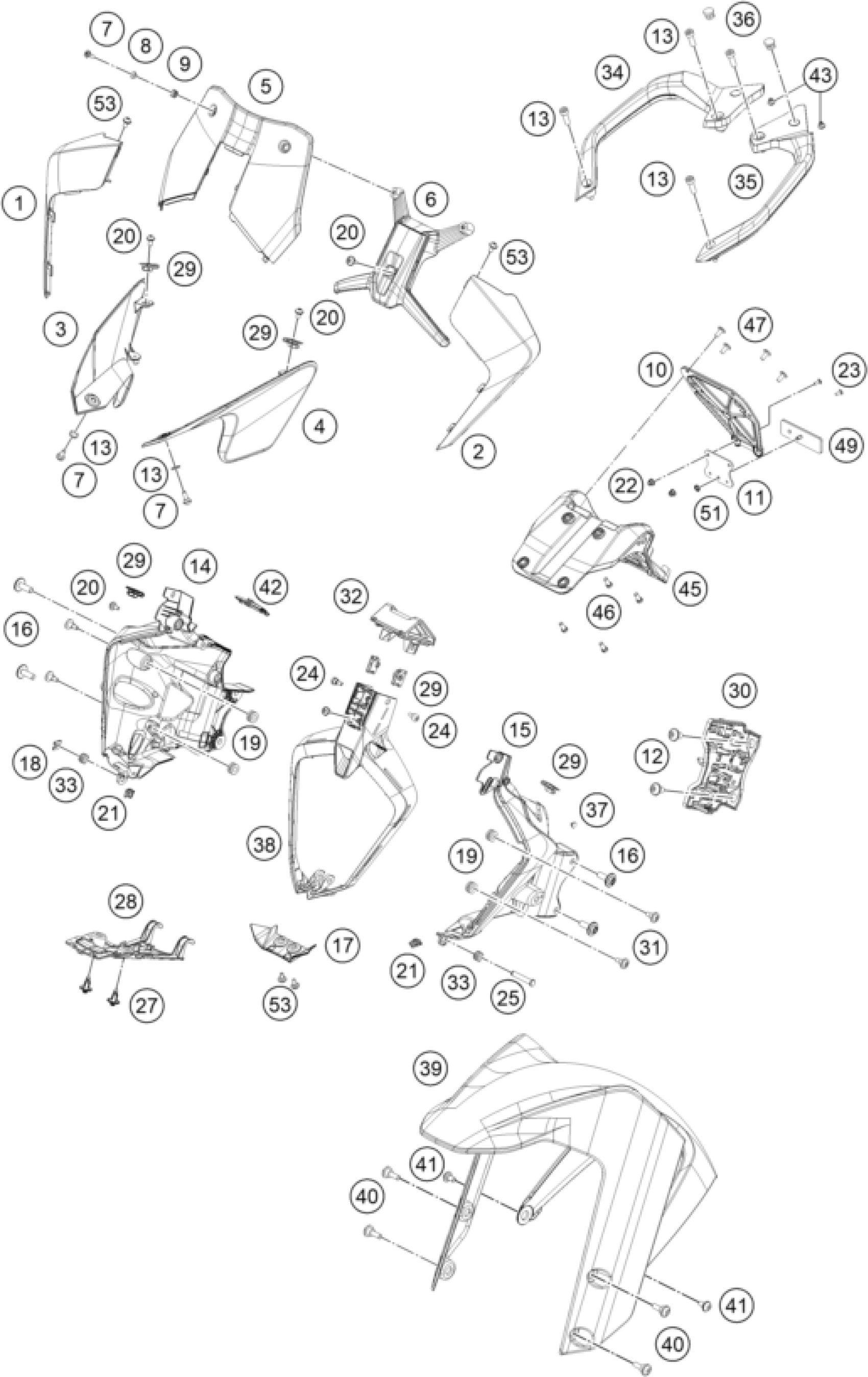

KTM 250 ADVENTURE, blue - B.D. 2022 MASK, FENDERS Diagram

#

Description
Price

1

headlight mask right

95808001020

$7.47

2

Headlight mask, left

95808001010

$7.47

3

spoiler right

95808004000

$7.94

4

spoiler left

95808003000

$7.94

5

Windshield R EU

95808108000

$50.95

6

Windshield holder

95808008050

$17.76

7

Roundhead screw M5X18

J031060183

$1.49

8

Collar TFT speedo small

93014062010

$2.05

9

RUBBER SLEEVE

90507040001

$1.49

10

Reflector holder

95812181000

$3.08

11

REFLECTOR MOUNTING

90514044000

$2.05

12

Screw M6X1X9

93008020060

$2.05

13

BOLT SOCKET-M8X1.25XL 30XBLACK

J900000803002

Unavailable

14

Mask support right

95714011000

Unavailable

15

Mask support left

95714010000

Unavailable

16

AH SCREW M6X1X20

90508006003

$4.11

17

Cover bottom

95708012000

Unavailable

18

SEC. CLIP MASK CARR. PIVOT BKT

90114064012

$2.05

19

Rubber bushing

93014017000

$1.49

20

screw butn hd-m5x0.8xl10xblkxs

J031050101

$1.49

21

Range change metal nut M6

93008084010

$1.49

22

HEX NUT M5 AF8

90102031010

$1.49

23

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

24

Oval head screw M5x10

95814013010

$1.49

25

PIN

95714013000

Unavailable

27

RIVET

93814050000

$1.49

28

Cable cover, mask support

95814010020

$2.05

29

Clip Nut M5

93008083010

$1.49

30

Connector support front

95711048000

Unavailable

31

screw butn hd-m6x1xl10xblkxste

J031060101

$1.49

32

Cover mask support

95814011020

$3.08

33

GROMMET MASK CARR. PIVOT BKT

90114064011

$1.49

34

Holding bracket, right

95812009000

$74.98

35

Holding bracket, left

95812008000

$74.98

36

Cover

95812008030

$1.49

37

Plug

J650001000200

$1.49

38

ADV250 MASK MIDDLE JG181363 SA

95714012000

Unavailable

39

Front fender

95808010000

$42.53

40

Roundhead screw, M6x16

95808010070

$1.49

41

Oval head screw M6x12

J900000601200

$1.49

42

Cover, 12#V power socket

95811042050

$1.49

43

Rubber buffer

J650001200500

$1.49

45

numberplate carrier

95808015000

$42.35

46

Cyl.screw M6x16-8.8

J900000601601S

$1.49

47

Panhead screw M6

93008037000

$1.49

49

REFLECTOR

90514045000

$3.08

51

Hex collar nut, M5

J06923050053

$1.49

53

screw butn hd-m5x0.8xl13xblkxs

J031050136

$1.49
