Description

Price

1

Activated charcoal filter

95815001000

$39.45

2

holder plate

95815002000

$4.11

3

Pre-formed hose 7x13 L=105mm

95815022105

$4.11

4

CONNECTOR TUBE EVAP

90207016004

$1.49

5

Hose, ACF purge valve

95815000660

$16.73

6

Act. charcoal filter hose 4x10

95815000218

$7.56

7

Pre-formed hose L = 412 mm

95715020412

Unavailable

8

Valve purge

90607830000

$52.07

9

Screw M6X1X9

93008020060

$2.05

10

Act. charcoal filter hose 5,5x

95815000790

$21.78

11

CONNECTOR Y SHAPE

90507015000

$3.08

12

PIPE DRAIN

95815000240

$7.94

13

PLUG FUEL DRAIN

90515011000

$1.49

14

HOSE CLAMP

90507017000

$1.49

15

SPRING BAND CLAMP D13

90607017003

$2.05

16

Spring clip 9.5

J300000801000

$1.49

18

nut hex flanged

J926060006

$1.49

19

CLAMP 10MM

90107018011

$2.05

20

Hose guide

95813046000

$4.11

21

Hose guide

95815046000

$4.11

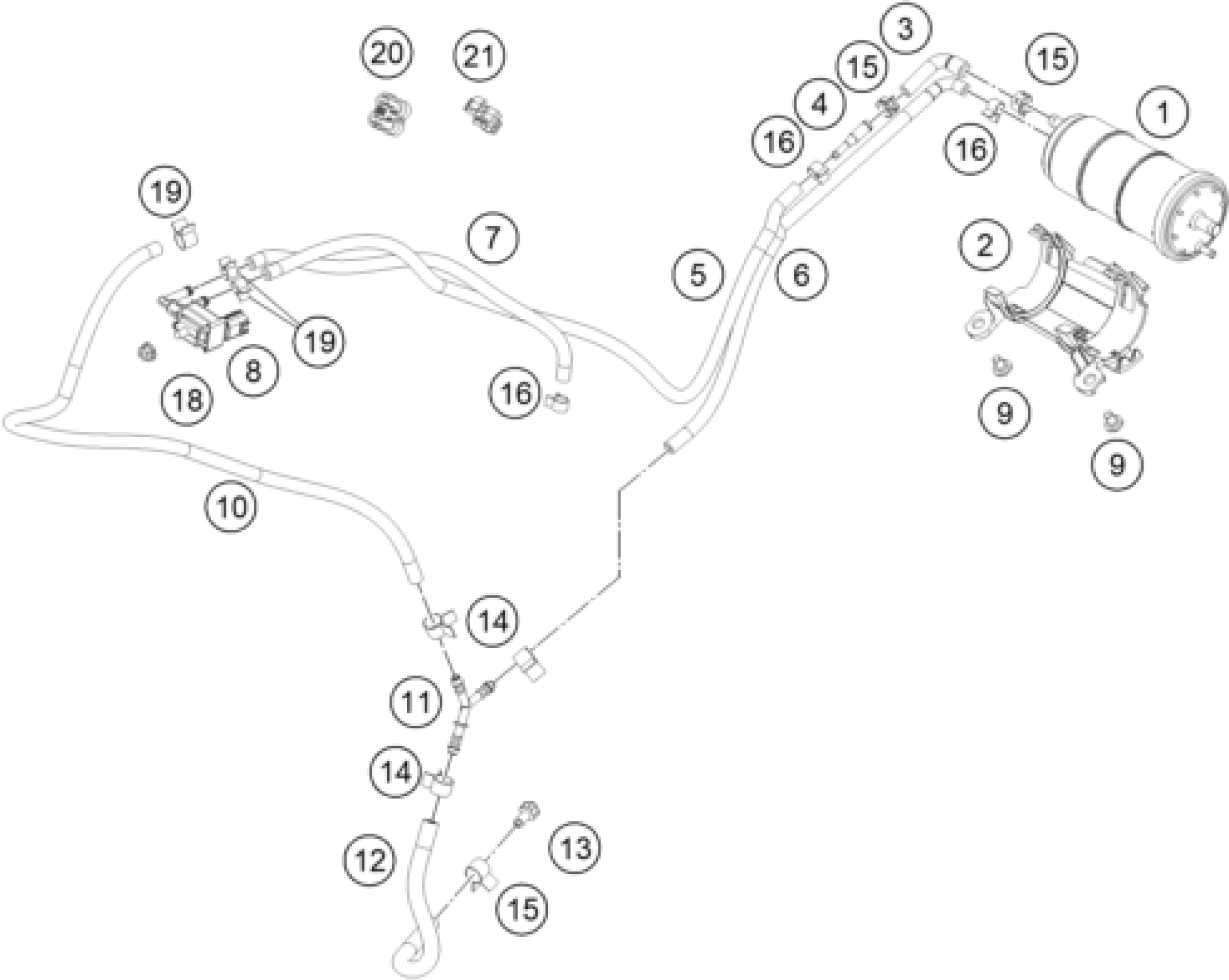

KTM 250 ADVENTURE, blue - B.D. 2022 EVAPORATIVE CANISTER Diagram

Activated charcoal filter

holder plate

Pre-formed hose 7x13 L=105mm

CONNECTOR TUBE EVAP

Hose, ACF purge valve

Act. charcoal filter hose 4x10

Pre-formed hose L = 412 mm

Valve purge

Screw M6X1X9

Act. charcoal filter hose 5,5x

CONNECTOR Y SHAPE

PIPE DRAIN

PLUG FUEL DRAIN

HOSE CLAMP

SPRING BAND CLAMP D13

Spring clip 9.5

nut hex flanged

CLAMP 10MM

Hose guide

Hose guide
