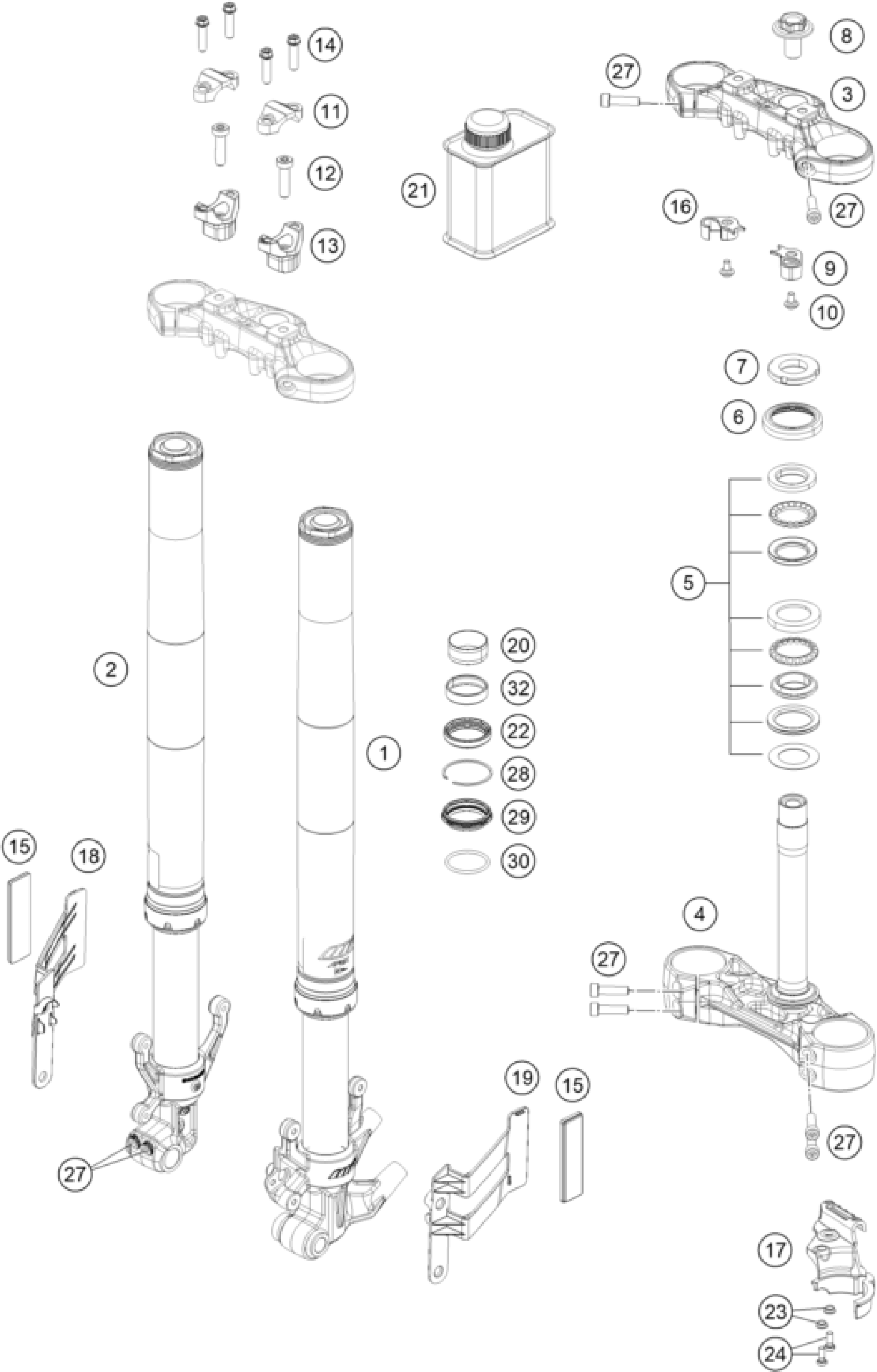

KTM 250 Adventure, black - B.D. 2020 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork leg left NHD

95701001200

Unavailable

2

Fork leg right NHD

95701002200

Unavailable

3

Triple clamp top

95701034033C1

Unavailable

4

assembly lower triple clamp GD

93001032133

$242.90

5

STEERING HEAD BEARING-KIT

90101080044

$33.65

6

protection cap

90101086000

$3.08

7

Adjusting ring steering head

90101036100

$5.23

8

steering head screw

90501044000

$13.92

9

Brake hose bracket left

95801070000

$1.49

10

Screw M6X1X9

93008020060

$2.05

11

Handlebar clamp

95801038000

$5.23

12

bolt socket-m10x1.25xl 30xbrig

J912100303

$2.05

13

Handlebar mount, 41 mm

95801039041

$8.59

14

Bolt socket-M8X1.25Xl 29Xblack

J912080293

$2.05

15

SIDE REFLECTOR FRONT

90512082000

$5.23

16

Clutch cable wire bracket righ

95801071000

$1.49

17

Hose clamp

93013055000

$3.08

18

Reflector holder right

95812084000

$3.08

19

Reflector holder left

95812083000

$3.08

20

GUIDE BUSH LOWER

43578014

$16.45

21

FORK OIL SAE5 5L 2008

48600765S1

Unavailable

22

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

23

sleeve for hose clamp

90113055010

$1.49

24

AH SCREW M6X15 10.9

J021060156

$1.49

27

AH SCREW M8X1.25X30

90501045000

$1.49

28

CIRCLIP

43578044

$4.11

29

Dirt scarper SKF 43mm black

43570624

$16.73

30

O-ring 40x2,5 VMQ70 red ISO 36

43578219

$4.11

32

GUIDE BUSH UPPER

43578016

$16.35
