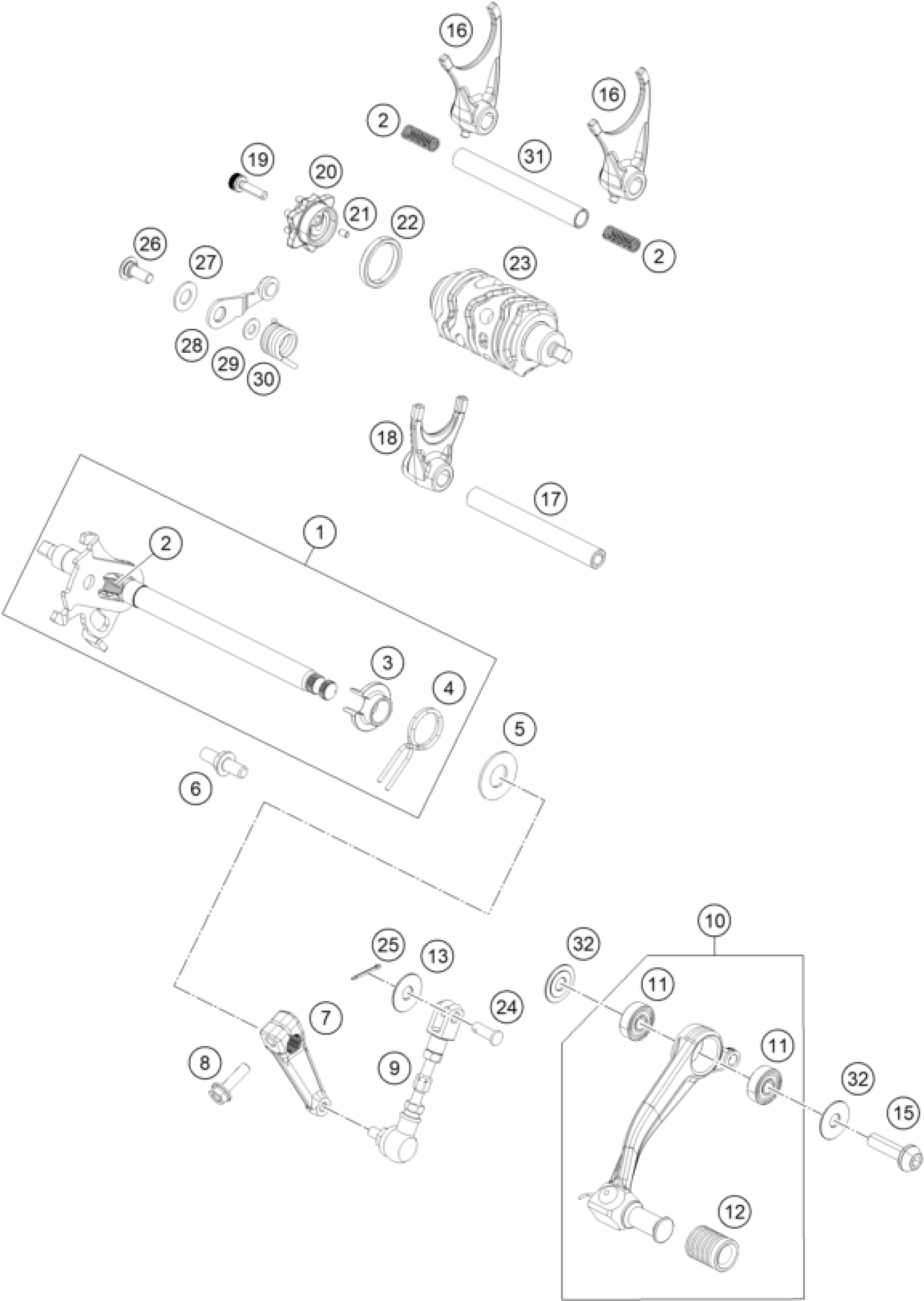

KTM 250 Adventure, black - B.D. 2020 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90234005033

Unavailable

2

SPRING SHIFT RAIL

90234039000

Unavailable

3

SPRING BUSHING

90134022000

Unavailable

4

RETURN SPRING

90134014000

Unavailable

5

STOP DISK 14X30X1,5

90134050000

Unavailable

6

SPRING GUIDE

90134016000

Unavailable

7

Linkage gear shift lever

93034031010

Unavailable

8

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

Unavailable

9

Shift linkage

95834036000

Unavailable

10

Gear shift lever, PREASSEMBLED

95834031044

Unavailable

11

BALL BEARING 608

J625060800

Unavailable

12

Pedal rubber

95834035000

Unavailable

13

Washer nylon 6.5X16X1

J125070001

Unavailable

15

BOLT SHIFT LEVER

90134034300

Unavailable

15

BOLT SHIFT LEVER

90534034300

Unavailable

16

SHIFT FORK

90234002000

Unavailable

17

SHIFT RAIL

90234019000

Unavailable

18

SHIFT FORK

90234001000

Unavailable

19

Bolt socket head M6X1X20 L-pre

90134098000

Unavailable

20

SHIFT DRUM LOCATING

90134015000

Unavailable

21

Parallel pin

90134013000

Unavailable

22

SPACER

90134012002

Unavailable

23

DRUM GEAR SHIFT

93834012000

Unavailable

24

Pin

J920000601600

Unavailable

25

circlip type e

J710000400600

Unavailable

26

SCREW LOCKING LEVER

90134025000

Unavailable

27

WASHER LOCKING LEVER

90134030000

Unavailable

28

LOCKING LEVER CPL.

90134024033

Unavailable

29

Washer, 6x14x1.2

J125061416

Unavailable

30

ARRESTING LEVER SPRING

90134023000

Unavailable

31

Gear shift rail

93834020000

Unavailable

32

WASHER SHIFTING LEVER

90534031020

Unavailable
