Description

Price

1

PEDAL ASSLY BRAKE ADVENTURE

95813050144

$76.10

2

Brake pedal step plate

95813051000

$1.49

3

screw butn hd-m5x0.8xl10xpreco

J031050106

$1.49

4

BALL BEARING 608

J625060800

$7.94

5

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

6

nut hex thick

J934060001

$1.49

7

WASHER SHIFTING LEVER

90534031020

$2.05

8

BOLT SHIFT LEVER

90534034300

$3.08

9

pin for fork end

90113057000

$1.49

10

splint pin 2x15mm

J094020153

$1.49

12

Rear master cylinder, cmpl.

95813060044

$63.66

13

Sheet

93013068000

$1.49

14

Bracket, reservoir

93013068010

$2.05

15

Spacer bushing

93035065020

$1.49

16

HH-COLLAR SCREW M5X10

J025050103

$1.49

17

Hex collar screw M6X18

J025060181

$1.49

18

HH COLLAR SCREW M6X16

90130059000

$1.49

19

Washer nylon 6.5X16X1

J125070001

$1.49

11

SPRING

J500000700100

$1.49

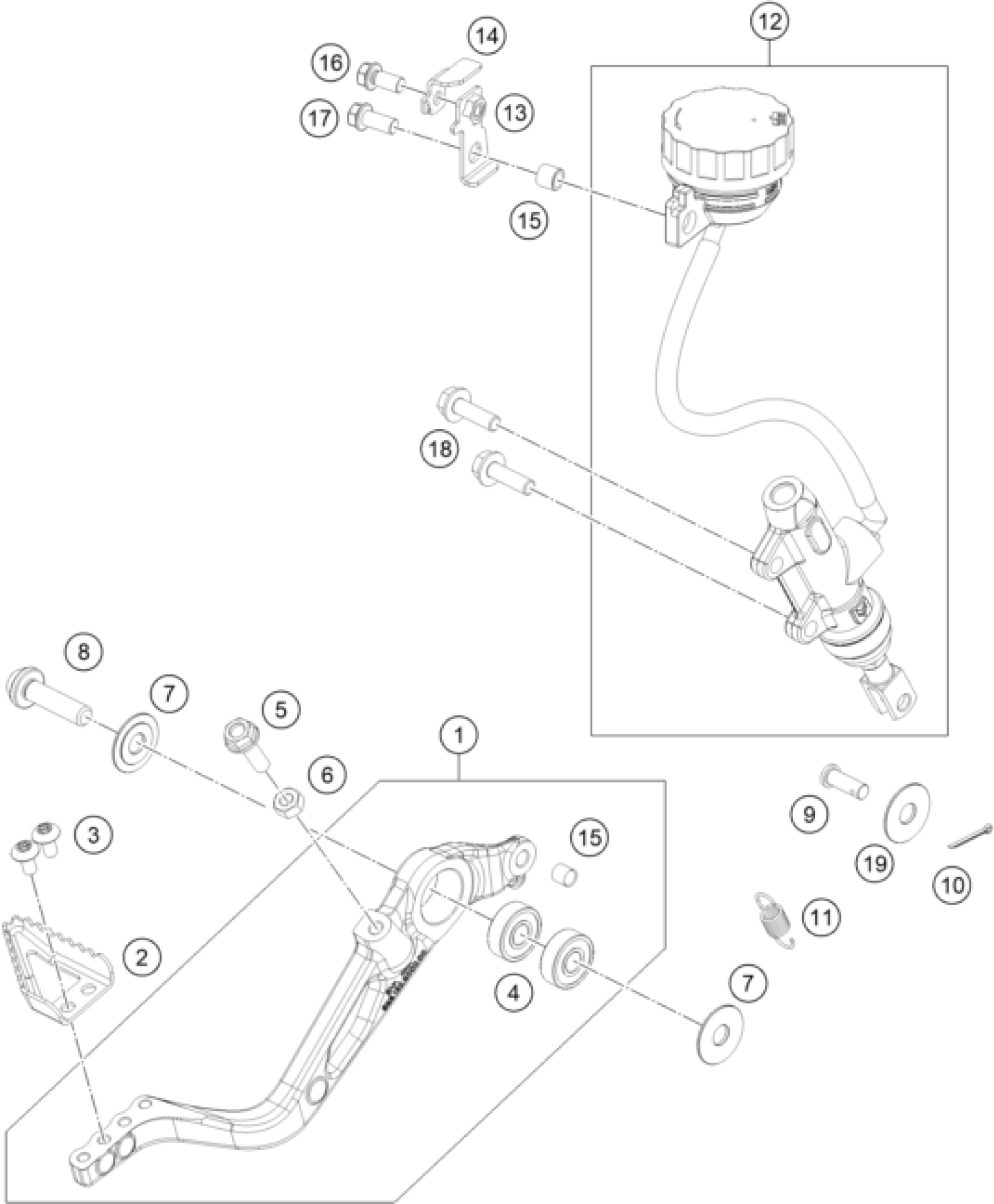

KTM 250 Adventure, black - B.D. 2020 REAR BRAKE CONTROL Diagram

PEDAL ASSLY BRAKE ADVENTURE

Brake pedal step plate

screw butn hd-m5x0.8xl10xpreco

BALL BEARING 608

HH COLLAR SCREW M6X20 SW10

nut hex thick

WASHER SHIFTING LEVER

BOLT SHIFT LEVER

pin for fork end

splint pin 2x15mm

Rear master cylinder, cmpl.

Sheet

Bracket, reservoir

Spacer bushing

HH-COLLAR SCREW M5X10

Hex collar screw M6X18

HH COLLAR SCREW M6X16

Washer nylon 6.5X16X1

SPRING
