Description

Price

1

Air box CPL

94206001000

Unavailable

2

FILTER

93006015000

$22.24

3

Seal

93006020050

$1.49

4

Air filter box cover

93006002000

$10.46

5

Flat-head screw M6

93006039000

$1.49

6

Carburetor connection boot

93006001060

$2.05

7

Intake snorkel

95806040000

$15.14

8

Damping rubber

93006001080

$1.49

9

Oval head screw M5X10

J005050101

Unavailable

10

SENSOR COVER

93041080060

$1.49

11

Engine vent hose

93030088050

$22.71

12

HOSE CLAMP

90130087001

$3.08

13

Plug

93030089000

$1.49

14

Rubber cowl pad

93006001015

$1.49

15

Distance piece air filter box

93006021000

$1.49

16

SILENT BLOCK AIRFILTER

90106001007

$5.88

17

Hex collar screw. M8x23.5

J025080246

$2.05

18

SOCKET HEAD BOLT M6X12

90508006001

$1.49

19

Engine vent hose

93030087050

$3.08

21

Retaining bracket, air filter

95803002021

$2.05

22

Washer, M6

J125060004

$1.49

23

bolt-flanged-small

J025060082

$1.49

25

hose clamp

90241002010

$5.23

26

CLAMP 16MM

90607017000

$5.23

28

Intake air temperature sensor

93041080000

$41.69

27

Lens head screw M5X12

J005050126

$1.49

24

CONNECTING TUBE

93206026000

Unavailable

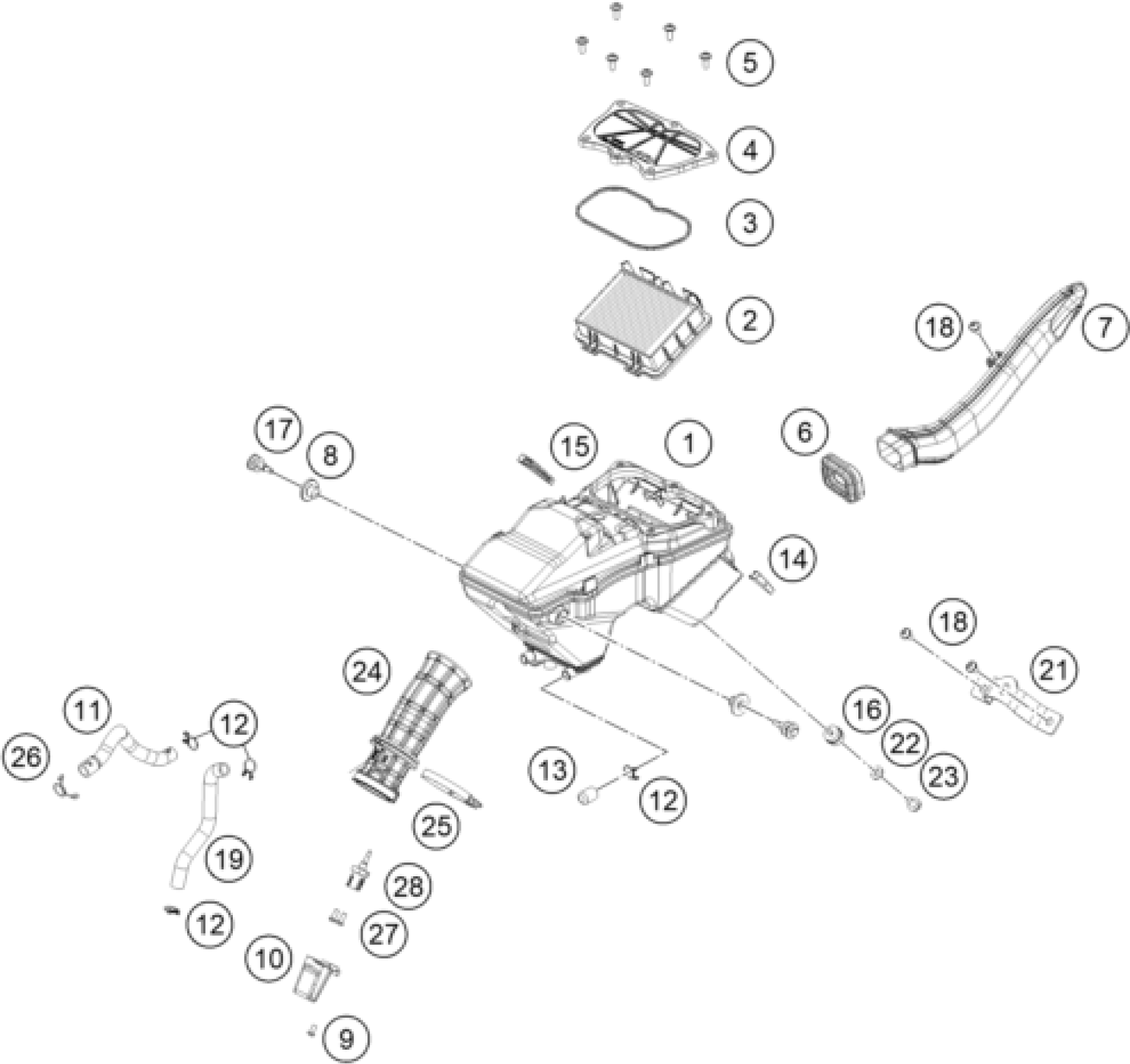

KTM 250 Adventure, black - B.D. 2020 AIR FILTER Diagram

Air box CPL

FILTER

Seal

Air filter box cover

Flat-head screw M6

Carburetor connection boot

Intake snorkel

Damping rubber

Oval head screw M5X10

SENSOR COVER

Engine vent hose

HOSE CLAMP

Plug

Rubber cowl pad

Distance piece air filter box

SILENT BLOCK AIRFILTER

Hex collar screw. M8x23.5

SOCKET HEAD BOLT M6X12

Engine vent hose

Retaining bracket, air filter

Washer, M6

bolt-flanged-small

hose clamp

CLAMP 16MM

Intake air temperature sensor

Lens head screw M5X12

CONNECTING TUBE
