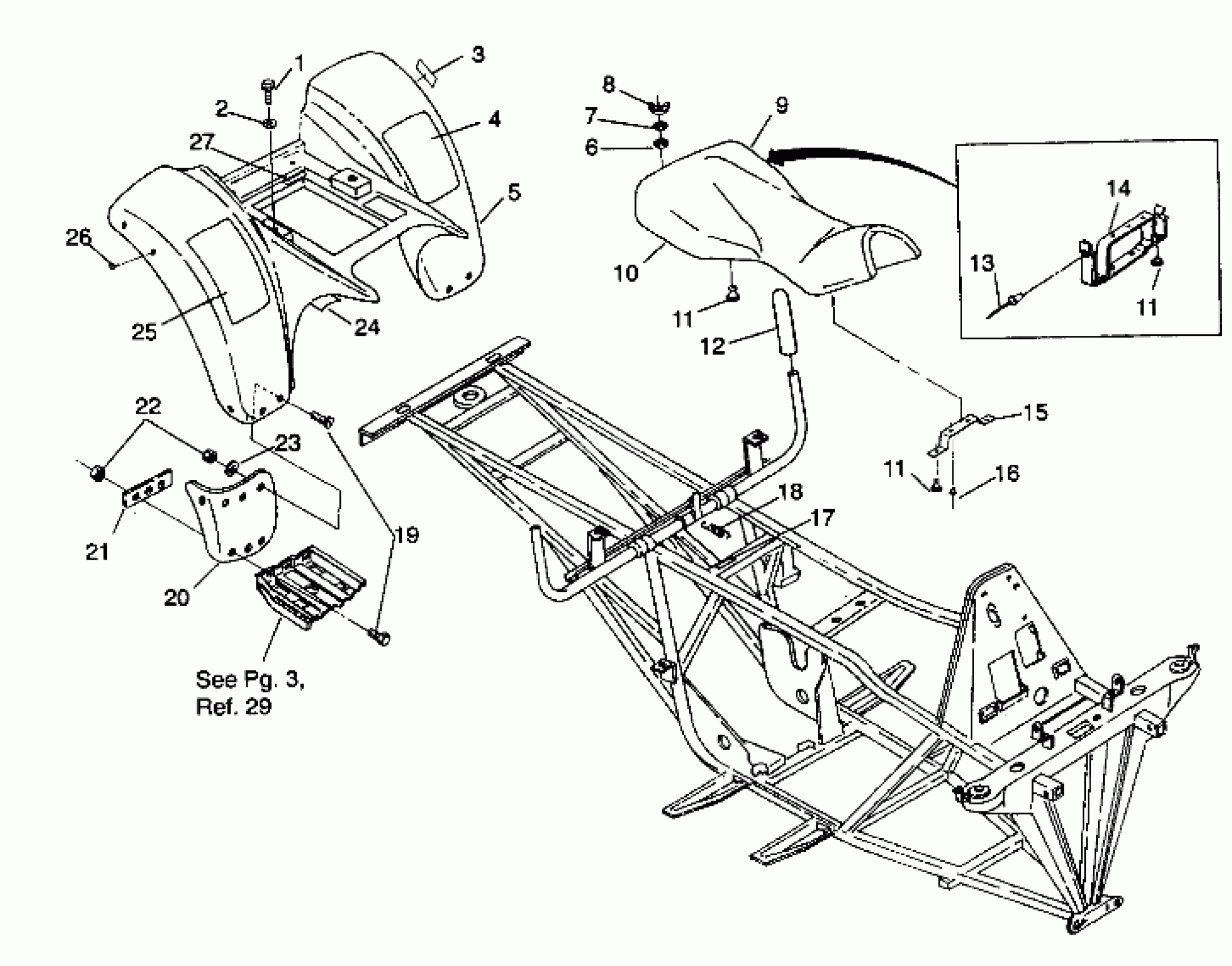

Polaris 250 6X6 - W938727 REAR CAB ASSEMBLY 6X6 250 W938727 (4924092409002A) Diagram

#

Description
Price

1

BOLT(10)

7512232

$1.49

2

WASHER,WROUGHT(10)

7558302

$1.59

3

DECAL,TIRE PRESS.(250-6X6)

7074181

Unavailable

4

DECAL, LOAD DIST.

7074108

Unavailable

5

CAB,REAR,BON.BLUE(4X6)

5431110-157

$194.38

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

7

LOCK WASHER(10)

7552801

$1.59

8

NUT,WING(10)

7542127

$1.49

9

SEAT ASM,STL.GRY,(250 6X6'93) (Incl.10,11,13-16)

2681727-132

Unavailable

10

COVER,SEAT,STL.GREY

2681728-132

Unavailable

11

Bumper, Rubber

5410414

$3.19

11

Bumper, Rubber

5410414

$3.19

11

Bumper, Rubber

5410414

$3.19

12

GRIP

5431097

Unavailable

13

RIVET(50)

7621456

Unavailable

14

LATCH, SEAT

1040185

$26.98

15

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

16

BLIND RIVET(50)

7621403

$1.49

17

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

18

SPRING,LATCH,RETURN

7042032

Unavailable

19

BOLT, BLACK(10)

7512282

$1.49

20

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

20

MUDFLAP,RH,LOW REAR

5850077

$23.65

21

BRKT, LH MUD FLAP

5211131-067

Unavailable

22

NUT-LOCK(10)

7542122

$1.49

23

WASHER, FLAT(10)

7555859

$1.49

24

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

24

TAPE, FOIL

5810424

Unavailable

25

DECAL(CPSC),OPER.WRN. [No Longer Available]

7072715

Unavailable

26

CLIP, PUSH-ON(10)

7670052

$1.99

27

DECAL,CARB.INFO.

7073761

Unavailable
