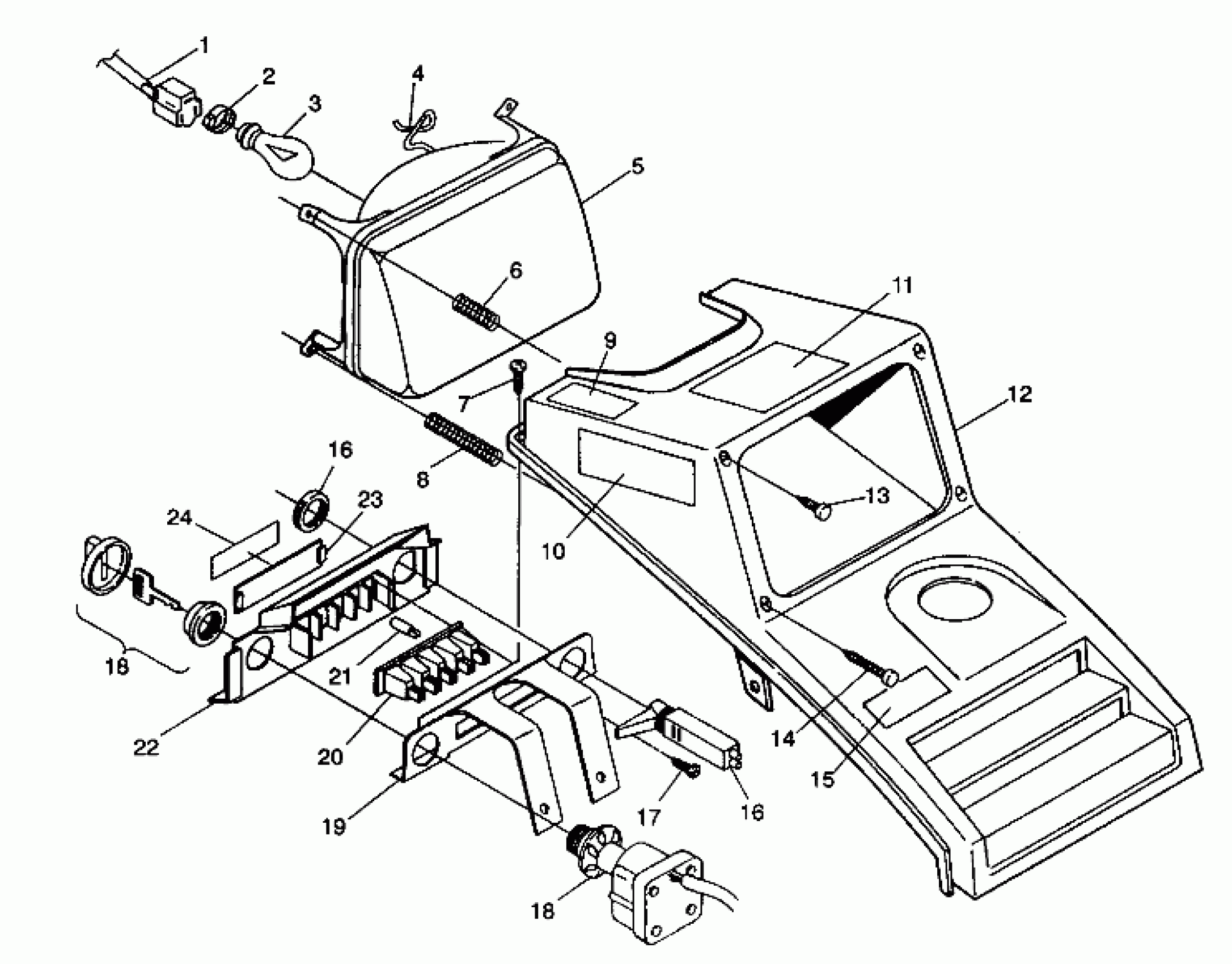

Polaris 250 6X6 - W938727 HEADLIGHT ASSEMBLY 6X6 250 W938727 (4924092409010A) Diagram

#

Description
Price

1

HARNESS,HEADLIGHT

2460427

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

RETAINER,H/L BULB

4032063

Unavailable

5

H/L ASM,W/BULBSEAL

4032065

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SCREW(10)

7512017

$4.79

8

SPRING,ADJ.

4032041

Unavailable

9

DECAL,WARN,(DEMAND 6 SW.) Substituted by 7074935

7073163

Unavailable

10

DECAL,'250'(93-250,2X4,6X6)

7073790

Unavailable

11

DECAL,CERTIF.,ATV Substituted by 7075909

7073464

Unavailable

12

COVER,H/L.(STL.GREY)

5430973-132

$67.46

13

SCREW, ADJ.(10)

4032003

Unavailable

14

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

15

LABEL, 'U.S.A.'

7073024

Unavailable

16

KIT-CHOKE CONTROL

2200188

$24.27

16

CABLE, CHOKE

7080371

$97.13

16

KIT-CHOKE CONTROL

2200188

$24.27

16

CABLE, CHOKE

7080371

$97.13

17

SCREW, SEM(10)

7511862

$6.99

18

SWITCH, IGNITION (See Footnote)

4110140

$137.60

18

SWITCH, IGNITION (See Footnote)

4110140

$137.60

19

BRKT, IGN. PANEL

5220965-067

Unavailable

20

STRIP, SOCKET

4032037

$27.19

21

BULB

4030042

Unavailable

22

PANEL, IGNITION

5430995

Unavailable

23

LENS ASM,PILOT LIGHT (Incl. 24)

2652049

Unavailable

24

DECAL, PANEL [No Longer Available] NOTE: Ignition Key may be ordered by using the 4 digit number on the key

7072528

Unavailable
