Partiron

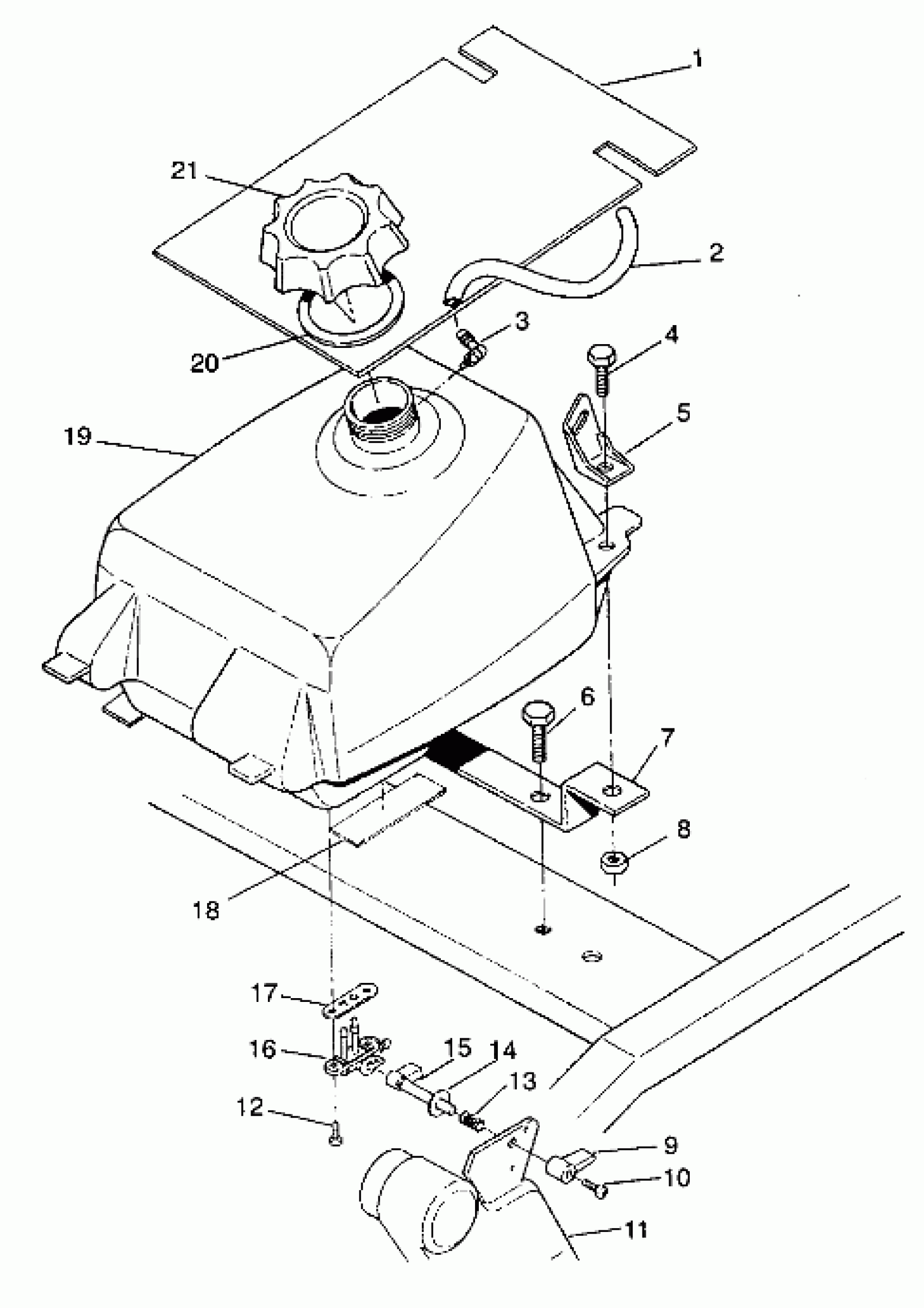

Polaris 250 6X6 - W938727 FUEL TANK ASSEMBLY 6X6 250 W938727 (4924092409008A) Diagram

#

Description
Price

1

PAD, SILENCER

5810423

Unavailable

2

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

3

Vent, Tank

5431053

$19.99

4

SCREW(10)

7512310

$2.39

5

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

5

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

6

SCREW(10)

7512208

$3.99

7

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

Lever, Fuel

5431021

$4.79

10

SCREW(10)

7511840

Unavailable

11

DUCT,INLET DOWN TUBE

5431006

$82.39

12

SCREW(10)

7515136

$1.49

13

SPRING,LEVER,COMPRESS.

7041209

$7.19

14

WASHER(10)

7555726

$1.59

15

EXT.,FUEL LEVER

5431391

$7.19

16

VALVE ASM, FUEL

7051006

$51.99

17

Gasket, Fuel Valve

5810859

$6.39

18

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

19

TANK,FUEL Substituted by 2511323

5430968

Unavailable

20

GASKET-GAS CAP

5810144

$5.59

21

CAP, GAS, (BLACK)

5430725

$24.27
