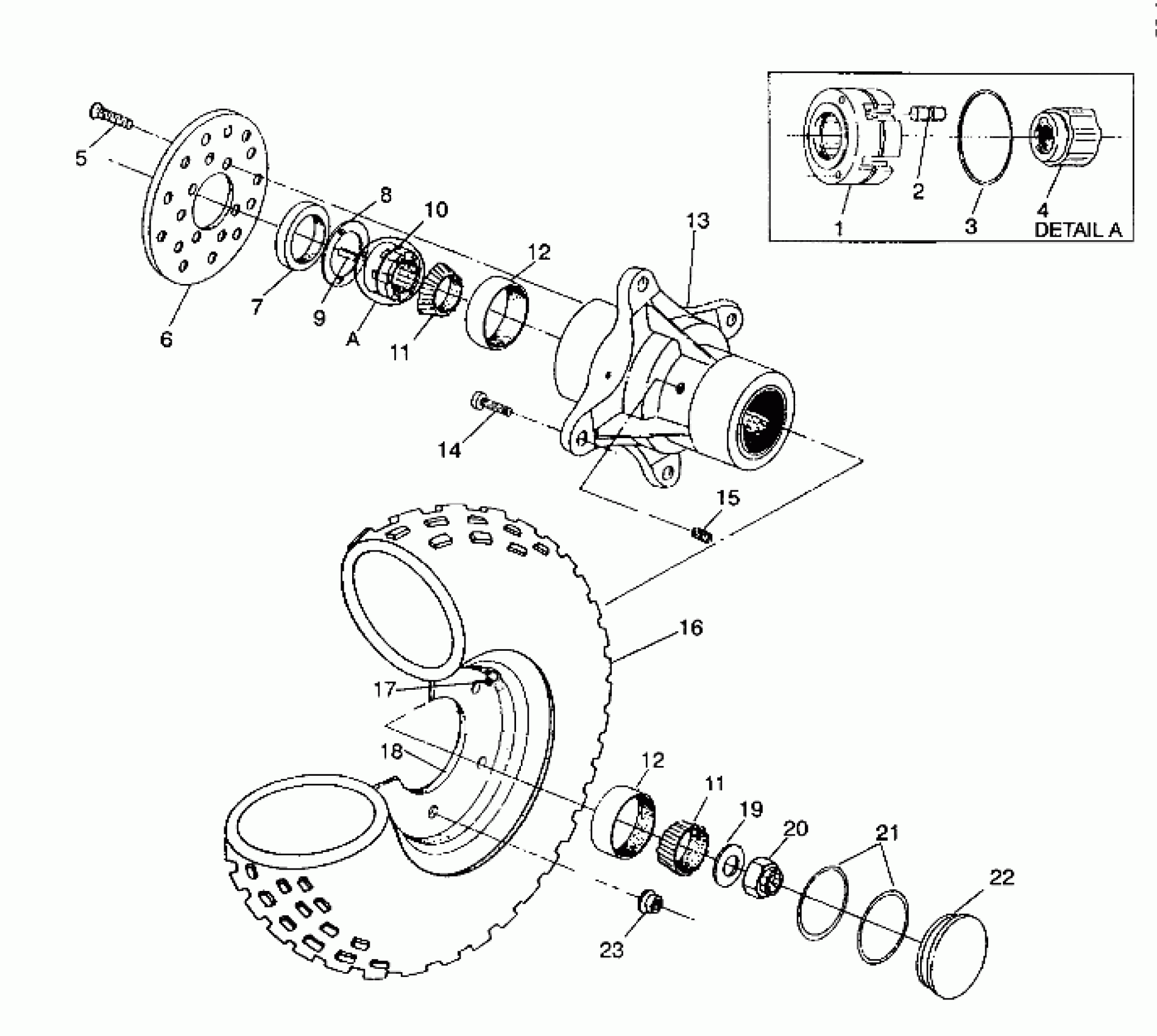

Polaris 250 6X6 - W938727 FRONT WHEEL ASSEMBLY 6X6 250 W938727 (4924092409016A) Diagram

#

Description
Price

1

CAGE, ROLL Substituted by 3250028

3250023

$218.56

2

ROLLS

3250010

$35.99

3

SPRING, GARTER

3250022

Unavailable

4

CAM

3250024

$140.09

5

BOLT(10)

7515321

$1.49

6

DISC, BRAKE

5211325

$76.89

7

SEAL, FR. HUB

3610019

$35.99

8

Plate, Armature

5211148

$23.99

9

KEY

7721205

Unavailable

10

CLUTCH ASM,FR.HUB

1520143

$307.49

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

HUB ASM,W/BRG.RACE (Incl. 7,12,14)

1520182

Unavailable

14

STUD(10)

7515523

$3.19

15

PLUG,PIPE

7052045

$12.79

16

TIRE,FR(22X8-10) (22x8x10)

5410480

Unavailable

17

VALVE-RIM

1525017

$5.59

19

WASHER(10)

5211101

Unavailable

20

NUT,RH THREAD

7543201

Unavailable

21

O RING

5410470

$2.41

22

CAP, HUB

5431367

Unavailable

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59
