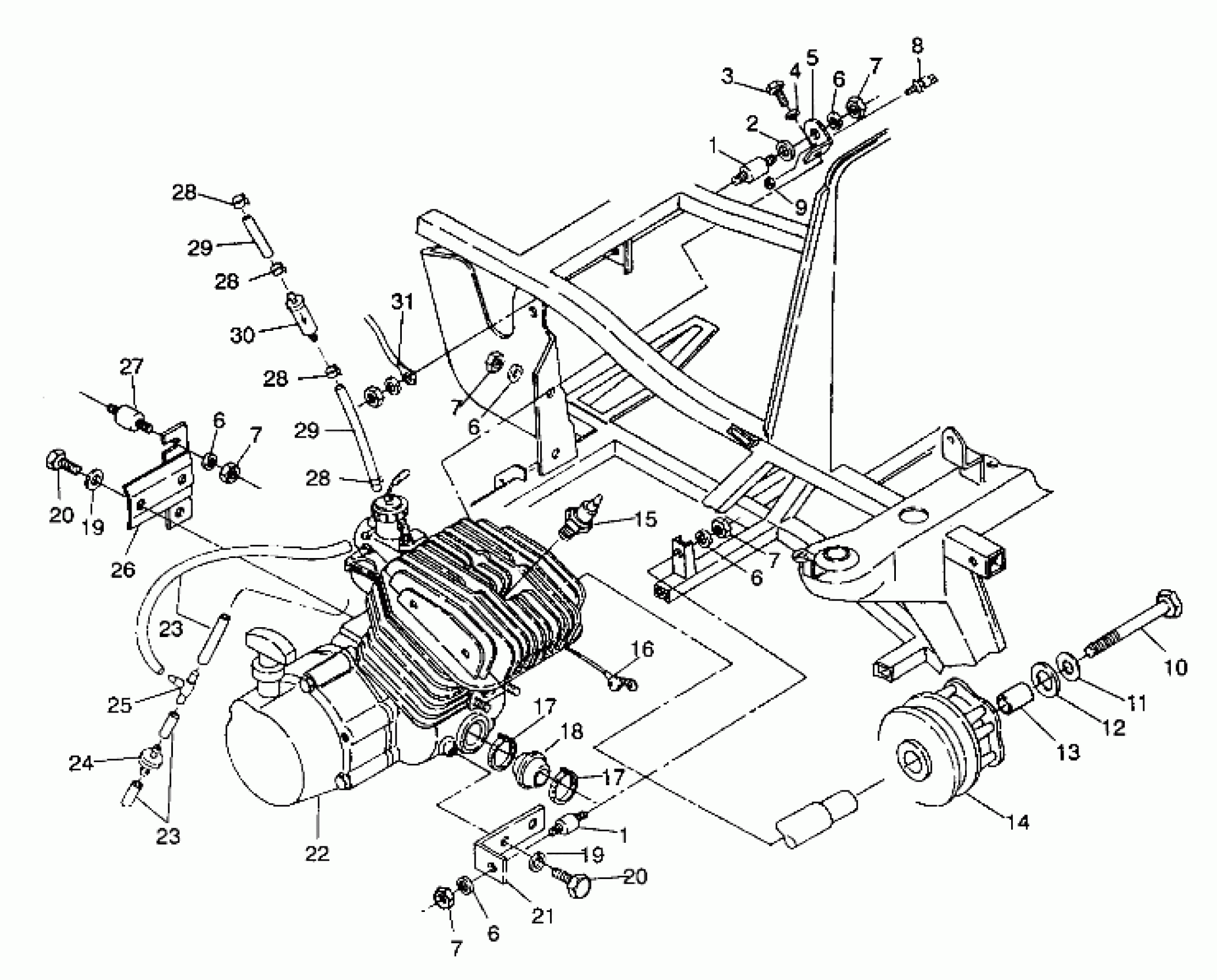

Polaris 250 6X6 - W938727 ENGINE MOUNTING 6X6 250 W938727 (4924092409005A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

BOLT(10)

7515321

$1.49

4

LOCK WASHER(10)

7552901

$1.49

5

MOUNT, ENG.,TOP

5220471-067

Unavailable

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

THERMOSTAT,COOL.FAN Substituted by 4010211

4110114

Unavailable

9

NUT(10)

7541925

$1.49

10

BOLT(10)

7512566

$30.79

11

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

12

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

13

BUSHING-.437 X.770 X.50

5430261

$7.19

14

ASM., DRIVE CLUTCH (See Drive Clutch Asm. Pg. Ref. 1)

-------

Unavailable

15

SPARKPLUG (10)

3070156

$3.99

16

INSULATOR-CABLE

5410346

$6.39

17

CLAMP, NARROW BAND(10)

7080511

$4.79

17

CLAMP, NARROW BAND(10)

7080511

$4.79

18

BOOT,CLUTCH INTAKE

5410421

$11.19

19

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

19

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

20

SCREW(10)

7512490

$3.99

20

SCREW(10)

7512490

$3.99

21

PLATE,FR.MTR.MT.

5220881-067

Unavailable

22

ENG.EC25PF-08 Substituted by 3084717

1211534

Unavailable

23

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

23

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

24

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

25

Fitting, Tee

7052005

Unavailable

26

MOUNT, REAR Substituted by 5241056-067

5220757-067

Unavailable

27

MOUNT, MOTOR

3110028

Unavailable

28

CLAMP-HOSE,(10)

7080236

$1.59

28

CLAMP-HOSE,(10)

7080236

$1.59

28

CLAMP-HOSE,(10)

7080236

$1.59

28

CLAMP-HOSE,(10)

7080236

$1.59

29

GAS LINE,(GOODYEAR) [Cannot Purchase as Assembly]

8450042

Unavailable

29

GAS LINE,(GOODYEAR) [Cannot Purchase as Assembly]

8450042

Unavailable

30

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

31

CABLE,GROUND/ENG.

4010067

Unavailable
