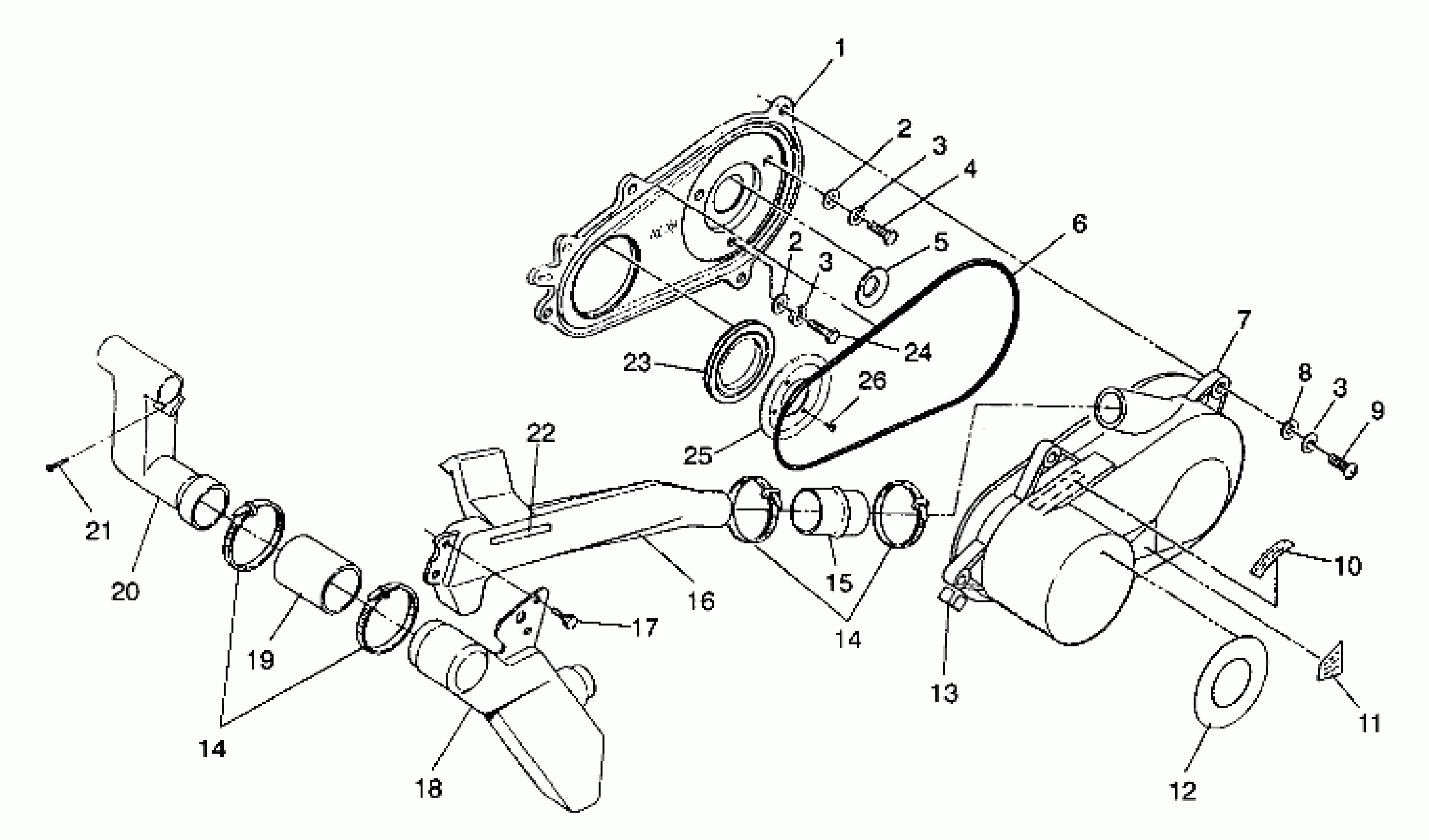

Polaris 250 6X6 - W938727 CLUTCH COVER ASSEMBLY 6X6 250 W938727 (4924092409032A) Diagram

#

Description
Price

1

COVER,CLUTCH(INNER PVT) Substituted by 5431716

5431569

$294.99

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

WASHER(10)

7552605

$5.27

3

WASHER(10)

7552605

$5.27

3

WASHER(10)

7552605

$5.27

4

BOLT(10)

7512278

Unavailable

5

SEAL,COVER CASE

5410489

$13.59

6

SEAL,CLUTCHCOVER

5521301

$30.88

7

COVER, CLUTCH,FRONT

5430771

Unavailable

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

9

BOLT(10)

7512281

$3.99

10

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL, PVT [No Longer Available]

7072386

Unavailable

13

CLIP,CLUTCH COVER(10)

7670051

$2.99

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT,CLUTCH INTAKE

5410421

$11.19

16

DUCT, AIR OUTLET

5431010

Unavailable

17

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

18

DUCT,INLET DOWN TUBE

5431006

$82.39

19

BOOT, INTAKE

5410509

$7.99

20

DUCT,INLET TOP

5431007

Unavailable

21

SCREW(10)

7512017

$4.79

22

DECAL,'DEMAND-6-DRIVE'

7073856

Unavailable

23

SEAL,COVER CASE

5410749

Unavailable

24

BOLT(10)

7512276

$4.79

25

BRKT,RETAINER SEAL

5222877-067

Unavailable

26

SCREW & WASHER(10)

3084205

$3.99

26

SEALER,10.3 OZ,SILICONE#732, Substituted by 8560054

2870661

Unavailable
