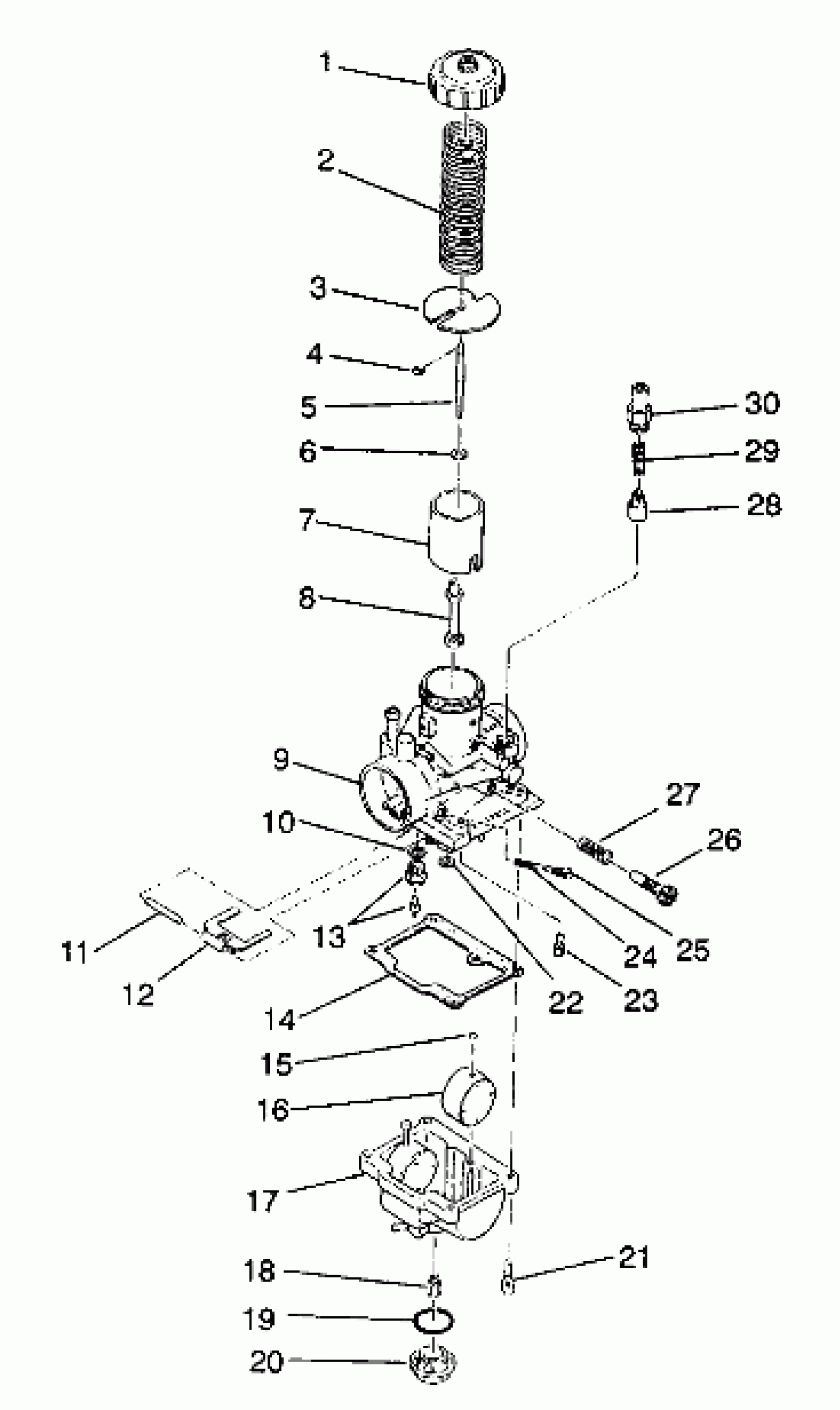

Polaris 250 6X6 - W938727 CARBURETOR 6X6 250 W938727 (4924092409048A) Diagram

#

Description
Price

1

TOP,MIX CHAMBER

3130060

Unavailable

2

SPRING,THROTTLE

3130354

$32.37

3

PLATE,THROTTLE

3130002

$24.27

4

E RING(10) Substituted by 3130508

3130003

$6.46

5

JET NEEDLE Substituted by 3130155 (5DP07)

3130356

$28.32

6

Washer

3130355

$7.14

7

VALVE,THROTTLE,(2.0) (2-0)

3130420

Unavailable

8

JET,NEEDLE(0-4),169 (0-4)

3130409

$44.51

9

CARBURETOR (Incl. 1-30)

3130424

Unavailable

10

PACKING(10)

3130017

$4.03

11

PIN, FLOAT

3130361

$9.70

12

ARM,FLOAT

3130018

$28.32

13

VALVE, NEEDLE (2.5)

3130360

$56.99

14

PACKING,FLOAT CHAMBER

3130020

$16.17

15

CAP,(10)

3130237

$4.03

16

FLOAT ASM

3130021

$44.51

17

BOWL,FLOAT,(250)

3130441

$99.21

18

JET, MAIN, #145 Substituted by 3130112 (#145)

3130351

Unavailable

19

O RING

3130239

Unavailable

20

BOLT,BANJO

3130321

$23.81

21

SCREW & WASHER(10)

3130025

$3.17

22

WASHER (10)

3130014

$1.59

23

JET,PILOT,#40(10) (#40)

3130067

Unavailable

24

SPRING,AIR ADJUST

3130012

$9.70

25

SCREW,AIR

3130011

$19.84

26

Screw, Throttle Stop

3130324

Unavailable

27

SPRING,THROTTLE ADJ.

3130010

$9.70

28

PLUNGER ASM, STARTER

3130328

$36.41

29

SPRING,PLUNGER

3130006

$9.70

30

Cap, Plunger

3130359

$14.56
