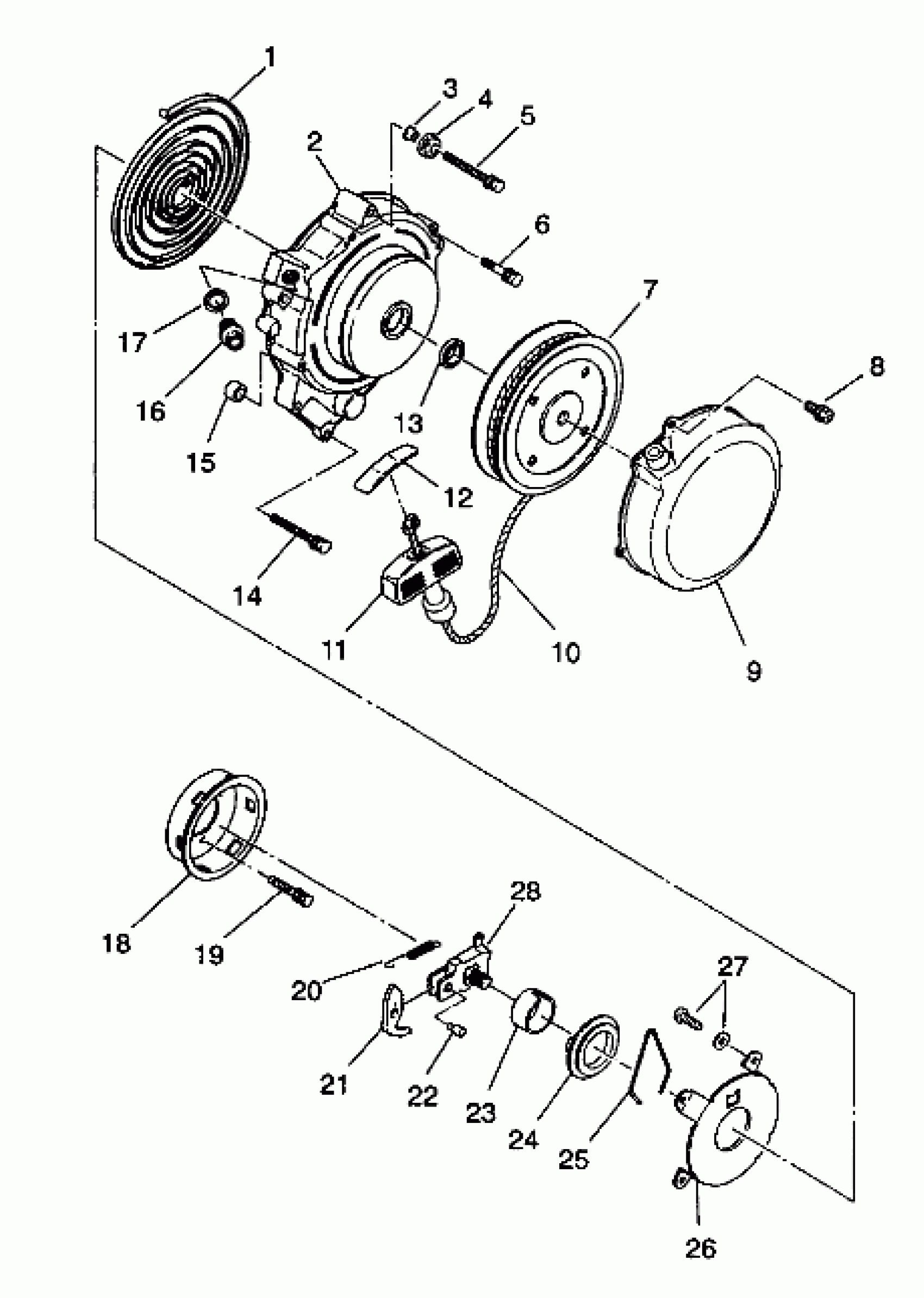

Polaris 250 4X4 - W938127 RECOIL STARTER 4X4 250 W938127 (4924042404038A) Diagram

#

Description
Price

1

Spring, Spiral

3083815

$45.59

2

CASE,STARTER,B UNIT

3083911

$271.99

2

STARTER,RECOIL,COMPL. (Incl. 1, 2, 7-13, 20-28)

3083924

Unavailable

3

COLLAR

3083732

Unavailable

4

MOUNTING,RUBBER

3083731

$4.95

5

BOLT & WASHER ASM.

3083926

Unavailable

6

BOLT&WASHER ASM.

3082228

Unavailable

7

REEL, COMPL.

3083814

$97.13

8

Bolt, Flange

3083826

Unavailable

9

CASE,STARTER,COMPL.

3083914

Unavailable

10

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

11

Knob, Starter

3083659

Unavailable

12

Cap, Knob

3083660

Unavailable

13

Grommet

3083817

Unavailable

14

BOLT&WASHER

3083729

$3.49

15

BUSHING, STARTER

3083669

Unavailable

16

PLUG Substituted by 3086749

3083453

Unavailable

17

GASKET

3082956

$4.84

18

Pulley, Starting

3083915

Unavailable

19

BOLT,(10)

3081665

$3.19

20

Spring, Return

3083827

$11.59

21

Ratchet

3083819

Unavailable

22

Pin, Ratchet

3083820

Unavailable

23

Hook, Spring

3083818

$39.99

24

GUIDE,RATCHET

3083821

Unavailable

25

SPRING,FRICTION

3083912

$25.59

26

Case, Spring

3083925

Unavailable

27

SCREW & WASHER

3084176

Unavailable

28

GUIDE, COMPL.

3083913

Unavailable
