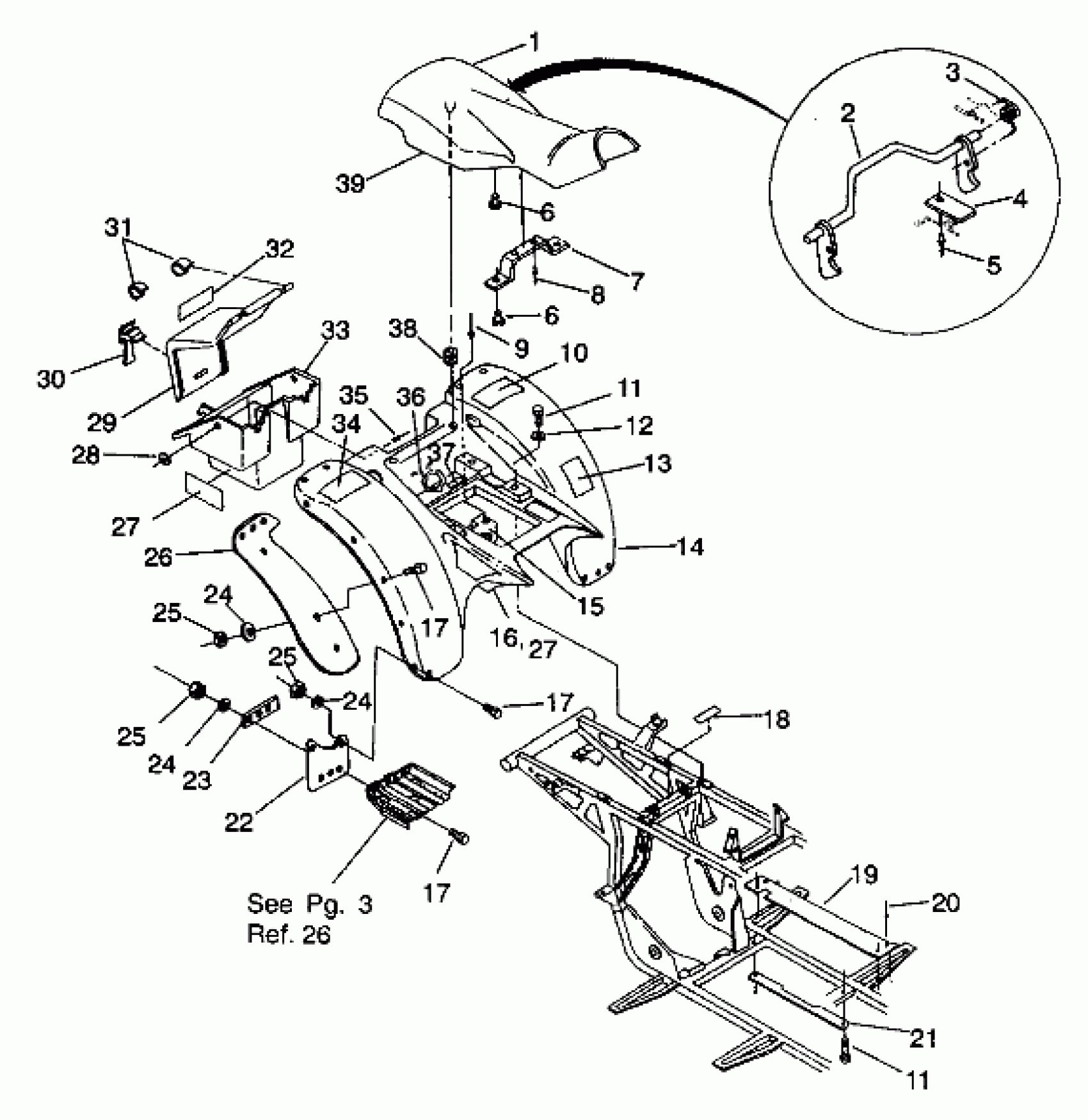

Polaris 250 4X4 - W938127 REAR CAB ASSEMBLY 4X4 250 W938127 (4924042404002A) Diagram

#

Description
Price

1

COVER,SEAT,BON.BLUE

2681723-157

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$29.25

5

BLIND RIVET(50)

7621403

$1.49

6

Bumper, Rubber

5410414

$3.19

6

Bumper, Rubber

5410414

$3.19

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET

7621481

Unavailable

9

RIVET,3/16X.402(50)

7621432

$1.49

10

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

11

BOLT(10)

7512232

$1.49

11

BOLT(10)

7512232

$1.49

12

WASHER,WROUGHT(10)

7558302

$1.59

13

DECAL(CPSC),TIRE PRESS(4X4) [No Longer Available]

7072810

Unavailable

14

CAB,REAR(93,250-4X4)

5430991-157

$158.73

15

BRKT,R.HOLDDOWN

5220880

Unavailable

16

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

16

TAPE, FOIL

5810424

Unavailable

17

BOLT, BLACK(10)

7512282

$1.49

17

BOLT, BLACK(10)

7512282

$1.49

18

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

19

GUARD,CLUTCH,OUTER

5222860-067

$7.06

20

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

21

GUARD,CLUTCH,INNER

5211359-067

Unavailable

22

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

22

MUDFLAP,RH,LOW REAR

5850077

$23.65

23

BRKT, LH MUD FLAP

5211131-067

Unavailable

24

WASHER, FLAT(10)

7555859

$1.49

24

WASHER, FLAT(10)

7555859

$1.49

24

WASHER, FLAT(10)

7555859

$1.49

25

NUT-LOCK(10)

7542122

$1.49

25

NUT-LOCK(10)

7542122

$1.49

25

NUT-LOCK(10)

7542122

$1.49

26

FLAP,MUD,LH REAR

5850060

Unavailable

26

FLAP,MUD,RH REAR

5850061

Unavailable

27

TAPE, FOIL

5810310

Unavailable

27

TAPE, FOIL

5810310

Unavailable

28

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

29

LID,TOOLBOX(SIL/B.BLUE)

5430769-1035

Unavailable

30

STRAP,TOOL COMPARTMENT

5410425

Unavailable

31

CLIP, LID HINGE(10)

7670050

Unavailable

32

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

33

BOX,TOOL COMP.

5430882

Unavailable

34

DECAL,LOAD DIST.(4 WHL.)

7074110

Unavailable

35

RIVET(50)

7621462

$1.49

36

RETAINER,TOOL POUCH

7080385

Unavailable

37

DECAL,CARB.INFO.

7073761

Unavailable

38

GROMMET

5410413

Unavailable

39

SEAT ASM,BON.BLUE(ATV) Substituted by 2682357-157

2681724-157

Unavailable
