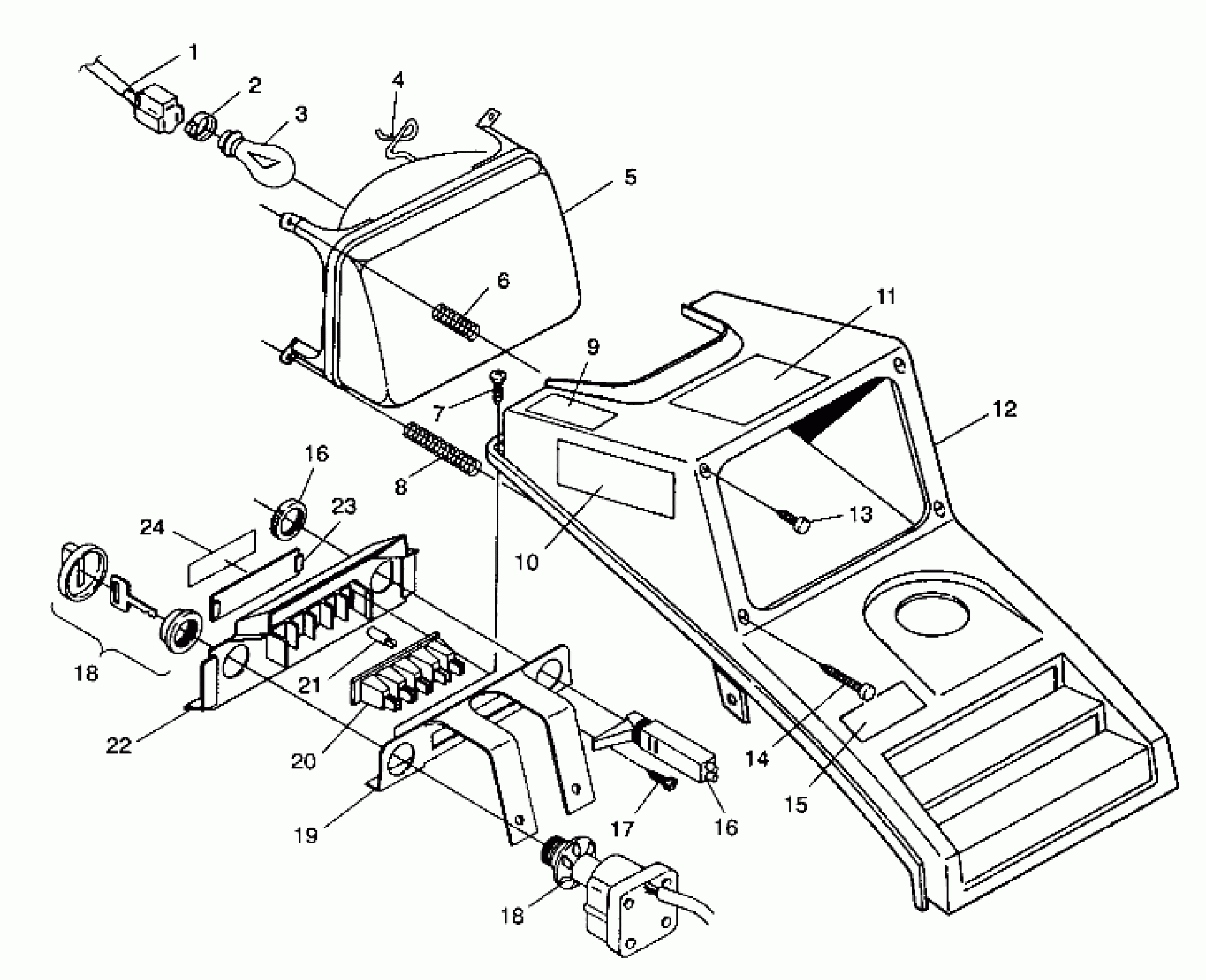

Polaris 250 4X4 - W938127 HEADLIGHT ASSEMBLY 4X4 250 W938127 (4924042404008A) Diagram

#

Description
Price

1

HARNESS,HEADLIGHT

2460427

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

RETAINER,H/L BULB

4032063

Unavailable

5

H/L ASM,W/BULBSEAL

4032065

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SCREW(10)

7512017

$4.79

8

SPRING,ADJ.

4032041

Unavailable

9

DECAL,WARN'DEM.4'SW. Substituted by 7074935

7072737

Unavailable

10

DECAL,'250'

7073795

Unavailable

11

DECAL,CERTIF.,ATV Substituted by 7075909

7073464

Unavailable

12

COVER,OIL-H/L,BON.BLUE

5430973-157

$64.29

13

SCREW, ADJ.(10)

4032003

Unavailable

14

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

15

LABEL, 'U.S.A.'

7073024

Unavailable

16

KIT-CHOKE CONTROL

2200188

$24.27

16

CABLE, CHOKE

7080371

$97.13

16

KIT-CHOKE CONTROL

2200188

$24.27

16

CABLE, CHOKE

7080371

$97.13

17

SCREW, SEM(10)

7511862

$6.99

18

SWITCH, IGNITION

4110140

$137.60

18

SWITCH, IGNITION

4110140

$137.60

19

BRKT, IGN. PANEL

5220965-067

Unavailable

20

STRIP, SOCKET

4032037

$27.19

21

BULB

4030042

Unavailable

22

PANEL, IGNITION

5430995

Unavailable

23

LENS ASM,PILOT LIGHT (Incl. 21)

2652049

Unavailable

24

DECAL, PANEL [No Longer Available] NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

7072685

Unavailable
